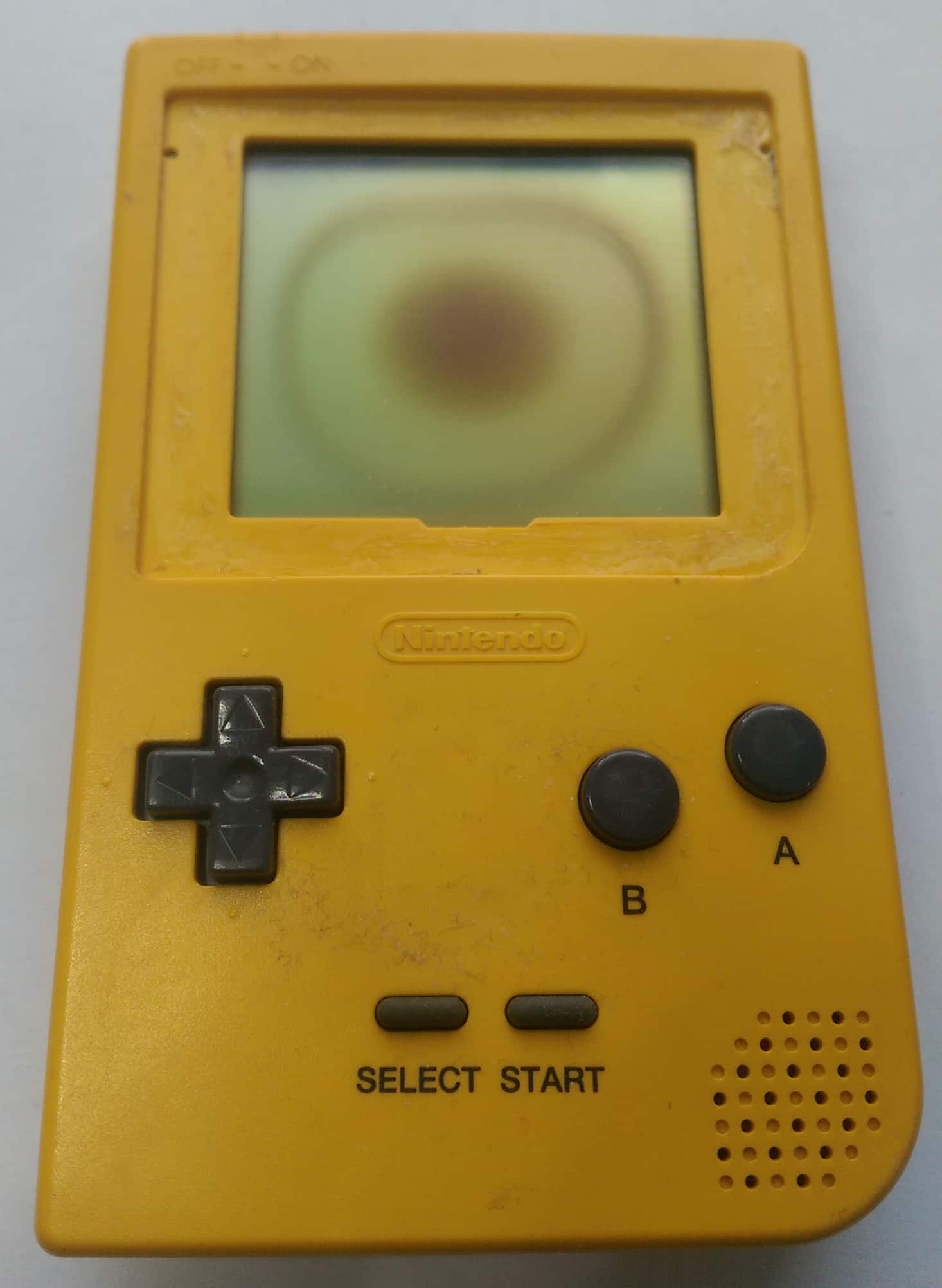

MGB: M10039462 [gekkio]
- Color
- Yellow

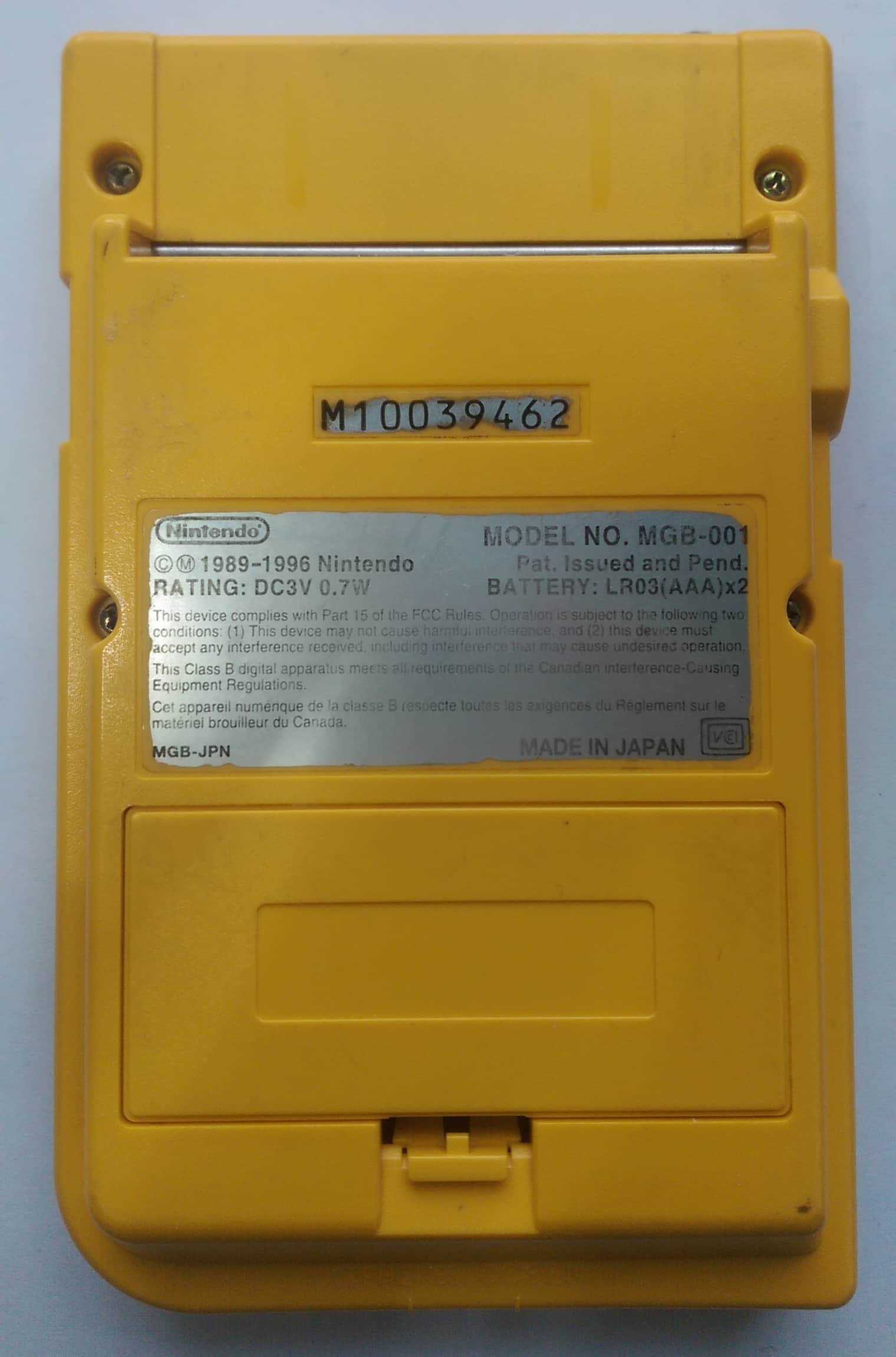

- Release code
- MGB-JPN
- Assembly date
- June/1996

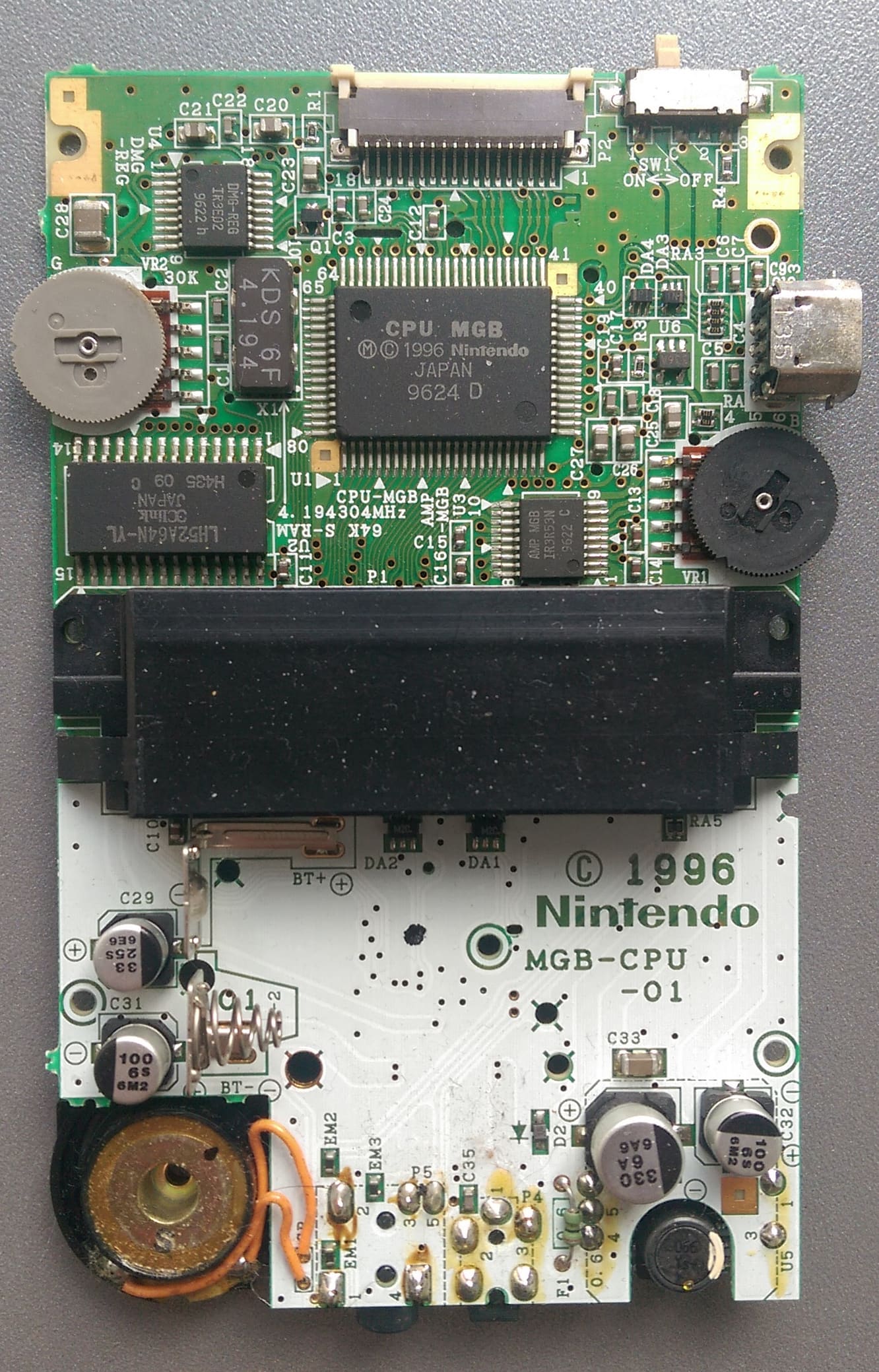

Mainboard
- Board type
- MGB-CPU-01
- Manufacture date
- May 21-31/1996
- Number pair on board
- 1-2

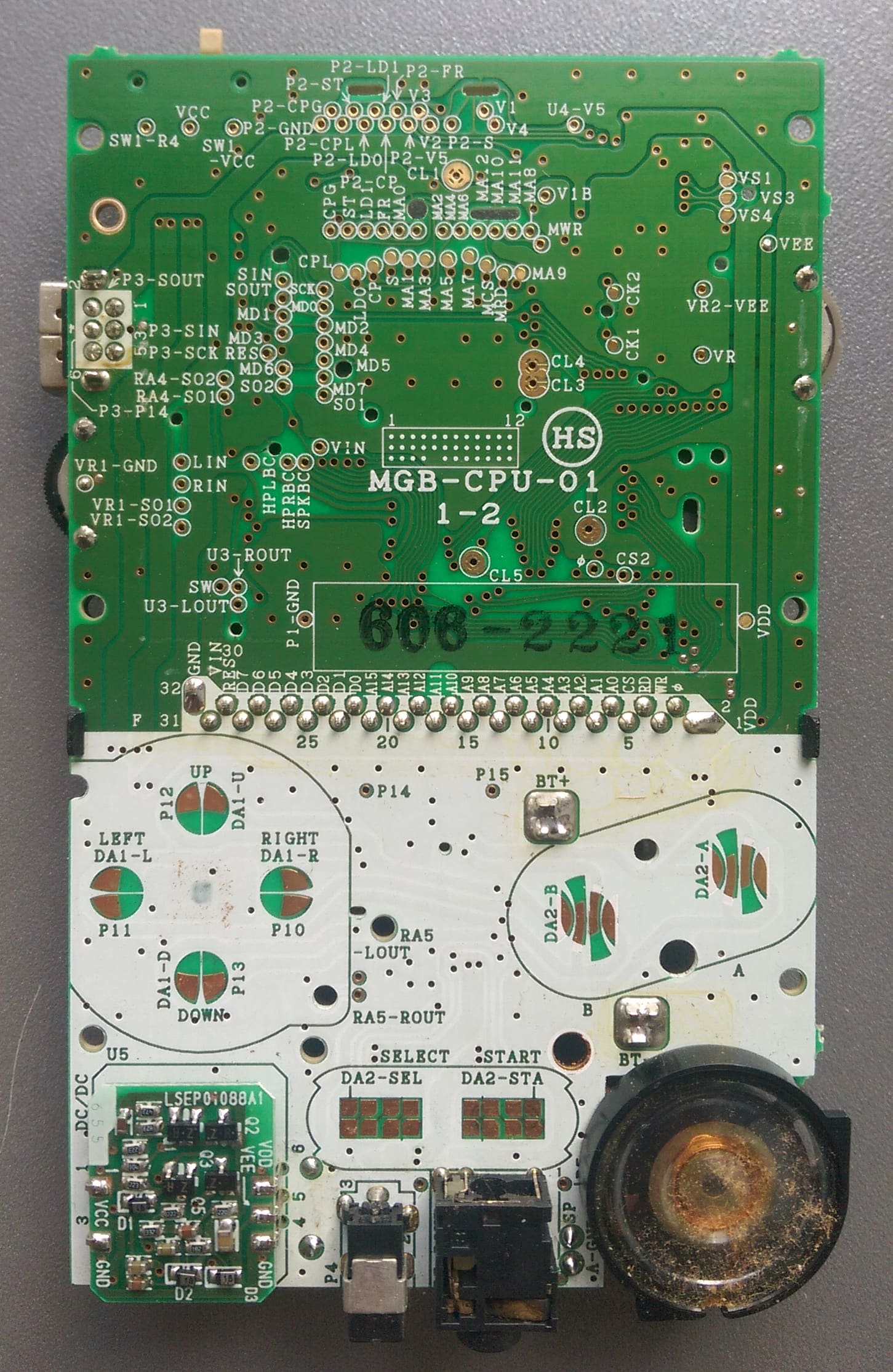

- Stamp on board
- 606-2221
- Circled letter(s) on board
- HS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 24/1996 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9624 D |
| U2 | WRAM | LH52A64N-YL | Crosslink Semiconductor | Week 35/1994 | LH52A64N-YL Xlink JAPAN H435 09 C |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 22/1996 | AMP MGB IR3R53N 9622 C |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 22/1996 | DMG-REG IR3E02 9622 h |
| X1 | Crystal | 4.194304 MHz | Daishinku | June/1996 | KDS 6F 4.194 |
| - | LCD column driver | LH5077 B1 | Sharp | LH5077 B1 | |
| - | LCD row driver | LH5076 E | Sharp | Week 20/1996 | LH5076 E 6200 |
