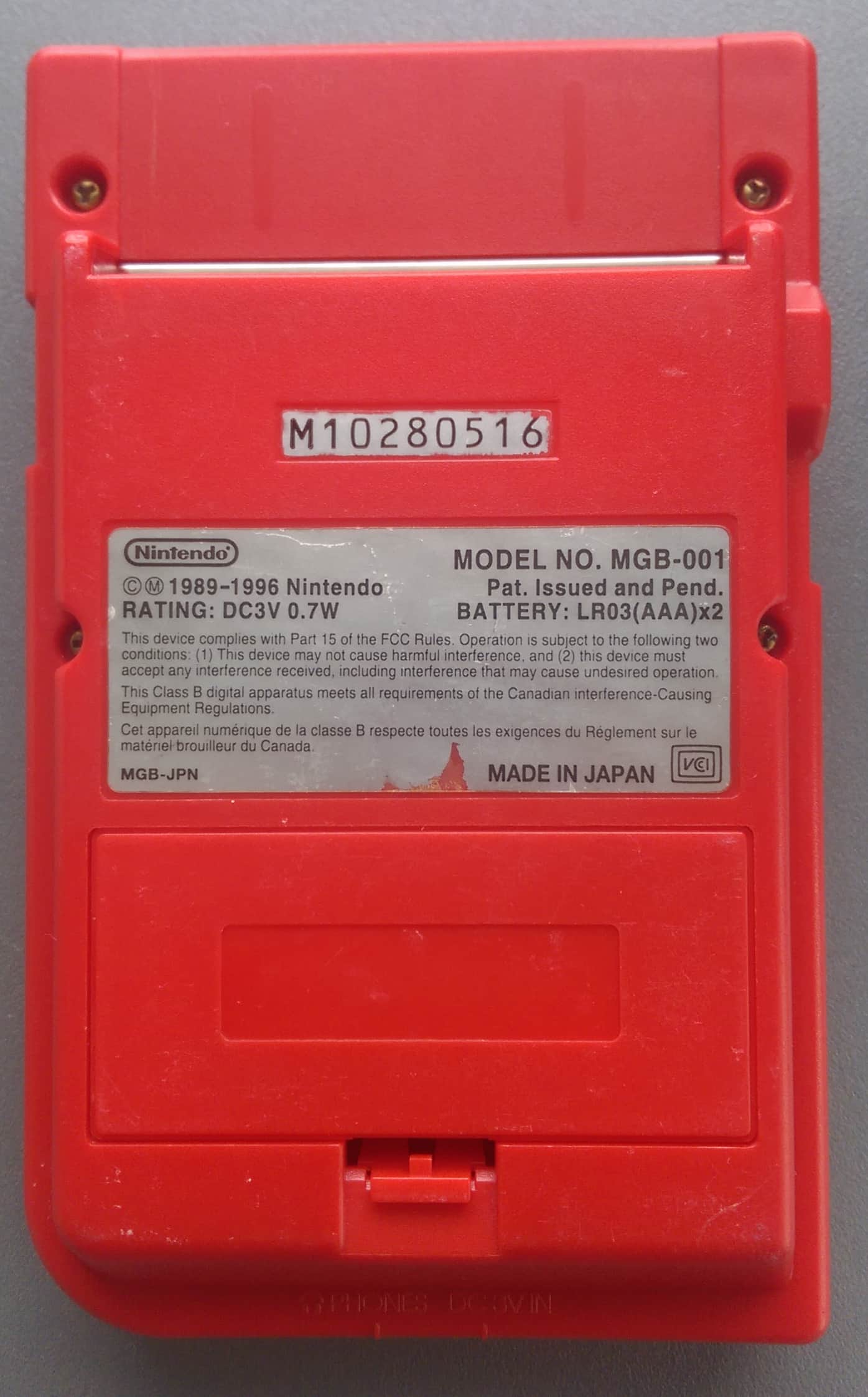

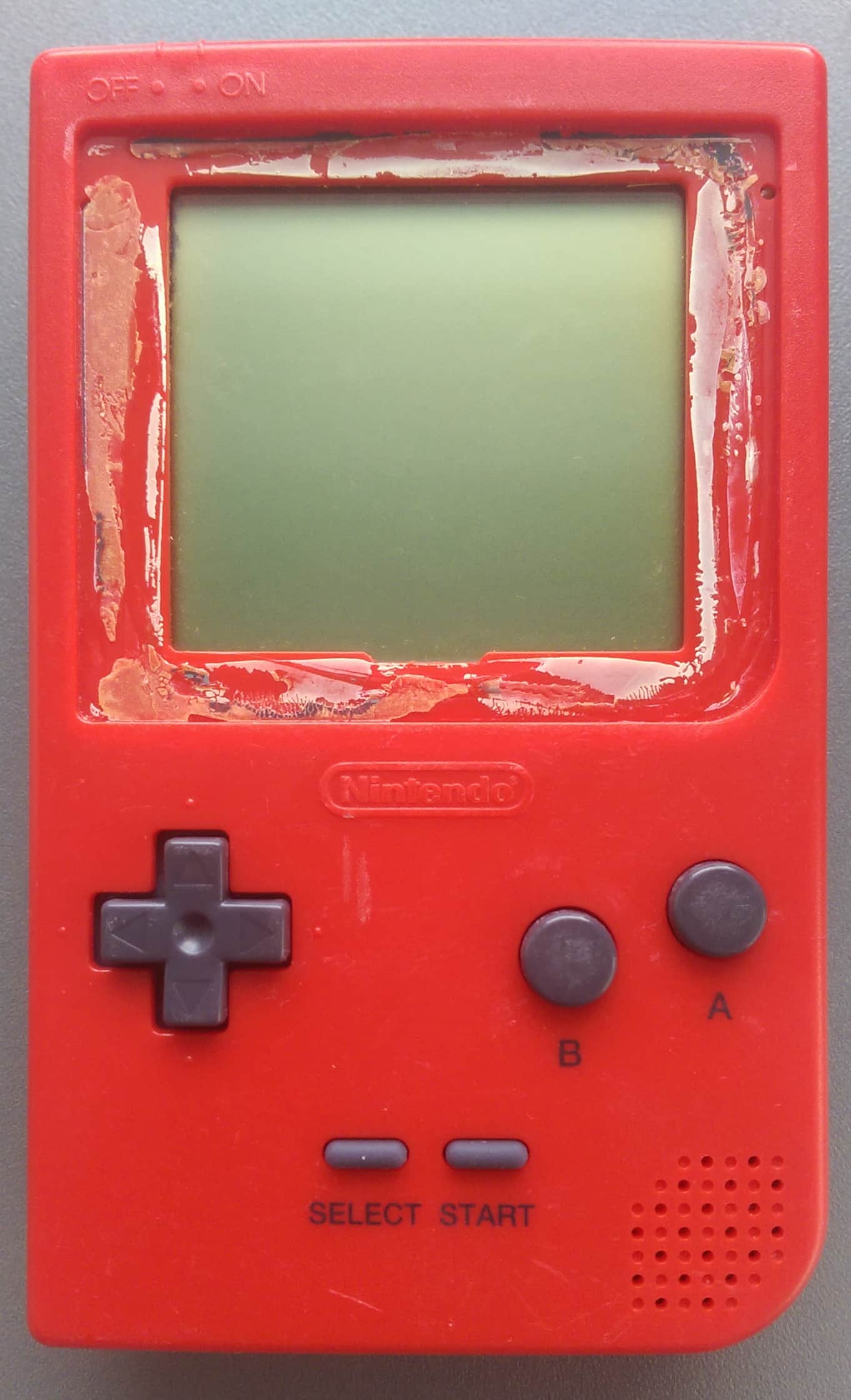

MGB: M10280516 [gekkio]
- Color
- Red
- Release code
- MGB-JPN
- Assembly date
- July/1996

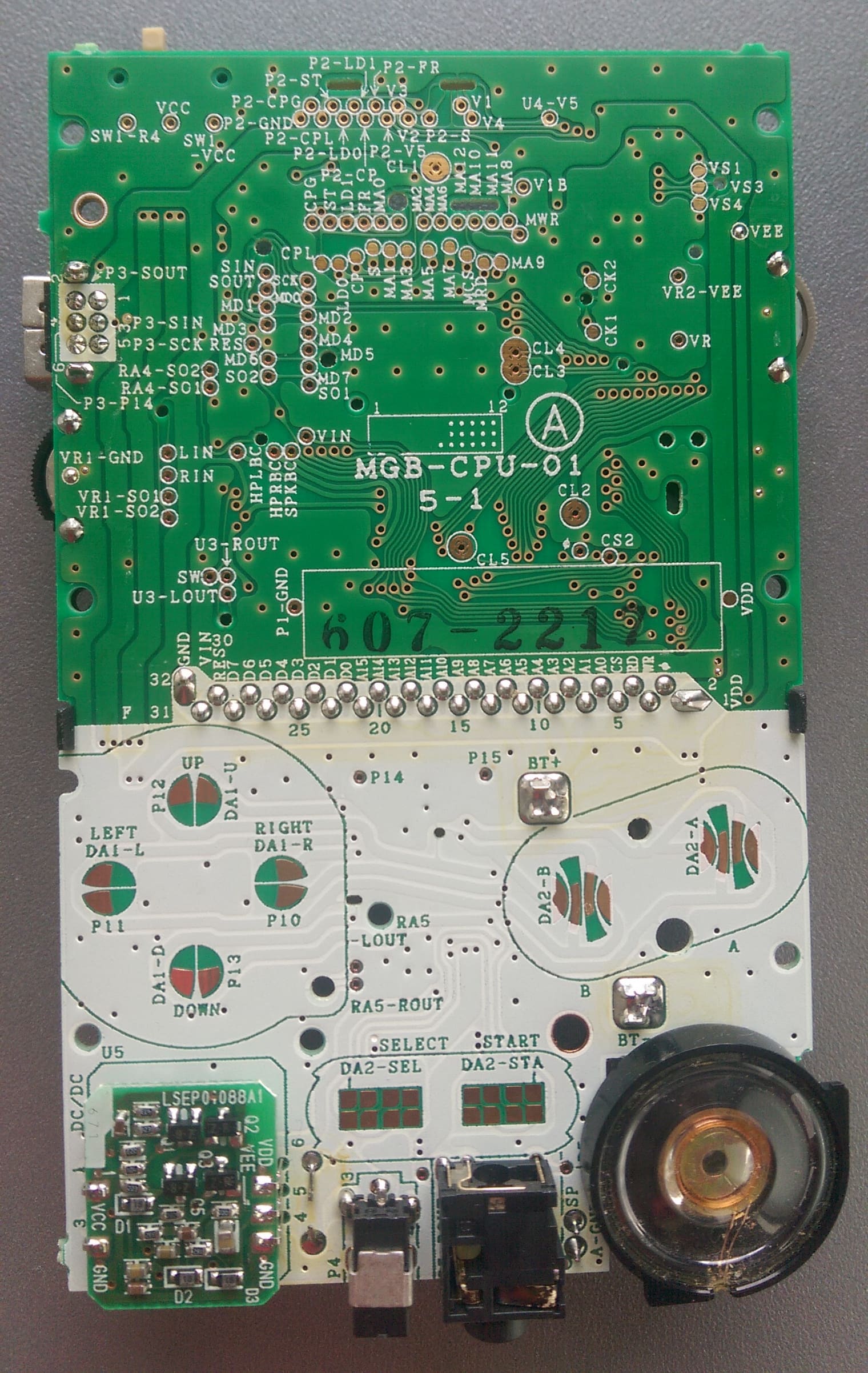

Mainboard
- Board type
- MGB-CPU-01
- Manufacture date
- Jul 11-20/1996
- Number pair on board
- 5-1
- Stamp on board
- 607-2217
- Circled letter(s) on board
- A

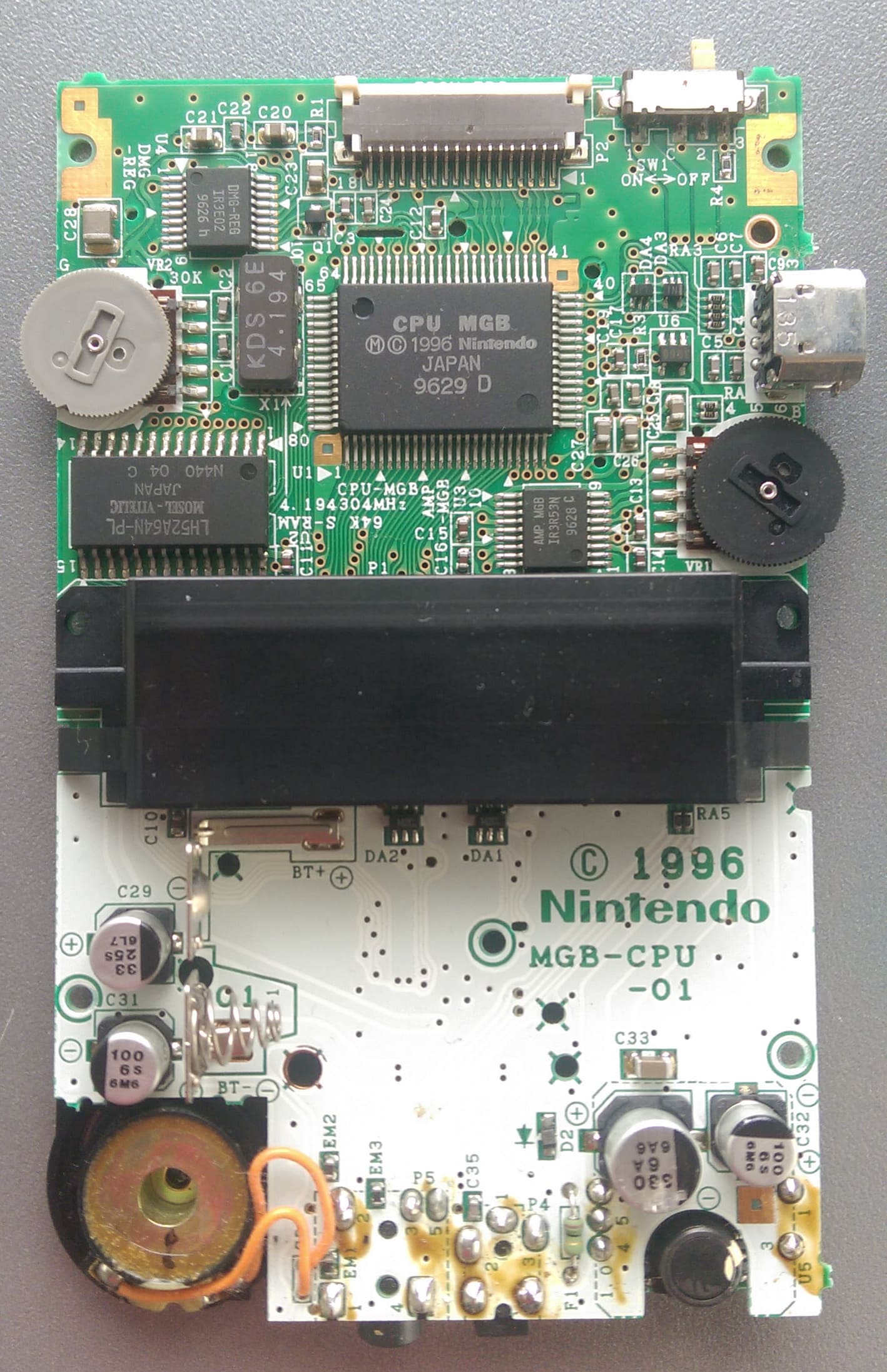

Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 29/1996 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9629 D |
| U2 | WRAM | LH52A64N-PL | Mosel-Vitelic | Week 40/1994 | LH52A64N-PL MOSEL-VITELIC JAPAN N440 04 C |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 28/1996 | AMP MGB IR3R53N 9628 C |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 26/1996 | DMG-REG IR3E02 9626 h |
| X1 | Crystal | 4.194304 MHz | Daishinku | May/1996 | KDS 6E 4.194 |
| - | LCD column driver | LH5077 B1 | Sharp | LH5077 B1 | |
| - | LCD row driver | LH5076 E | Sharp | Week 26/1996 | LH5076 E 6260 |
