Game Boy hardware database

MGB: MH11557284 [gekkio]

Color
Green
Release code
C/MGB-JPN
Assembly date
December/1996
LCD panel label
T61102S T61104
LCD panel date
November/1996

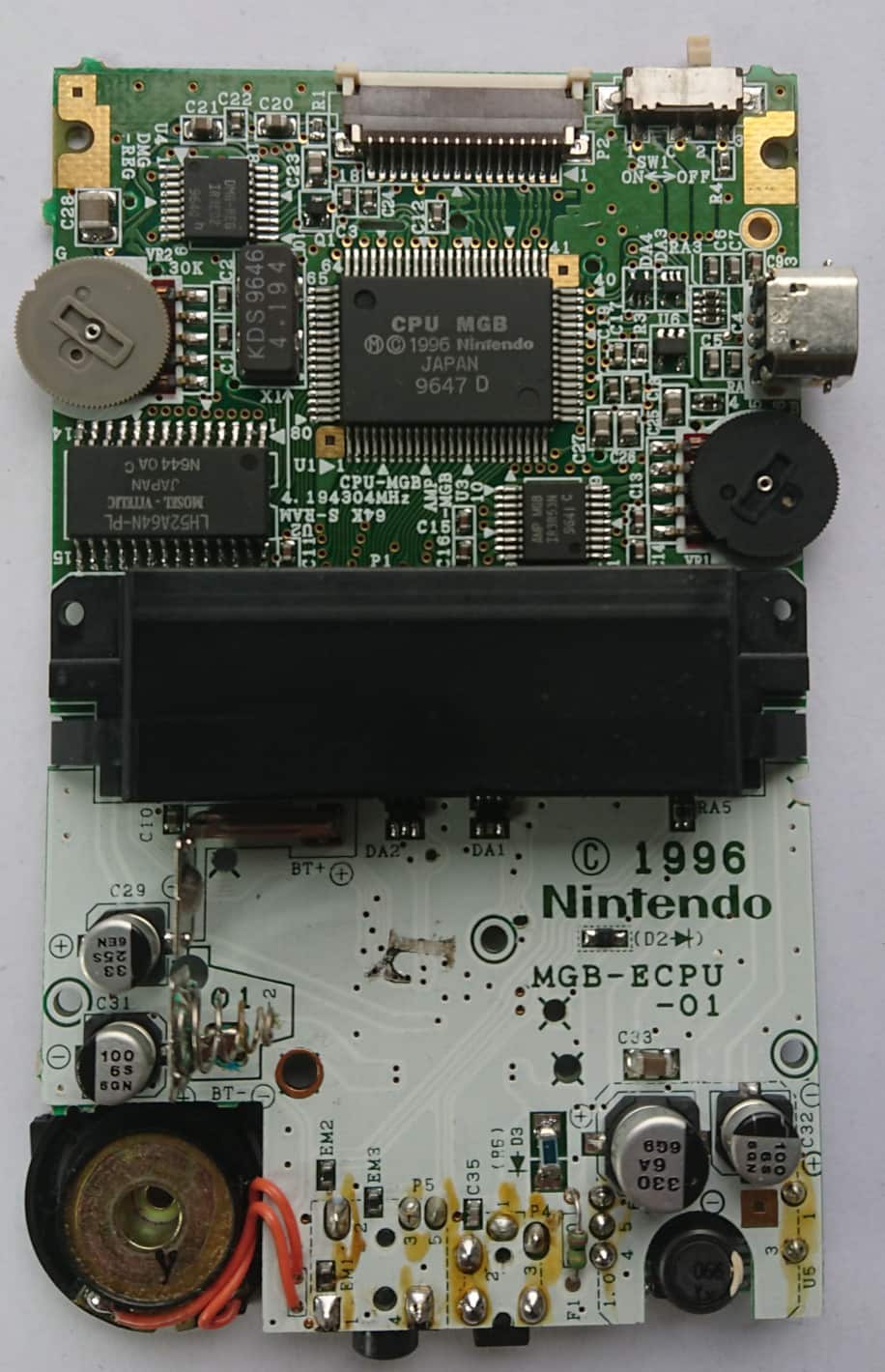

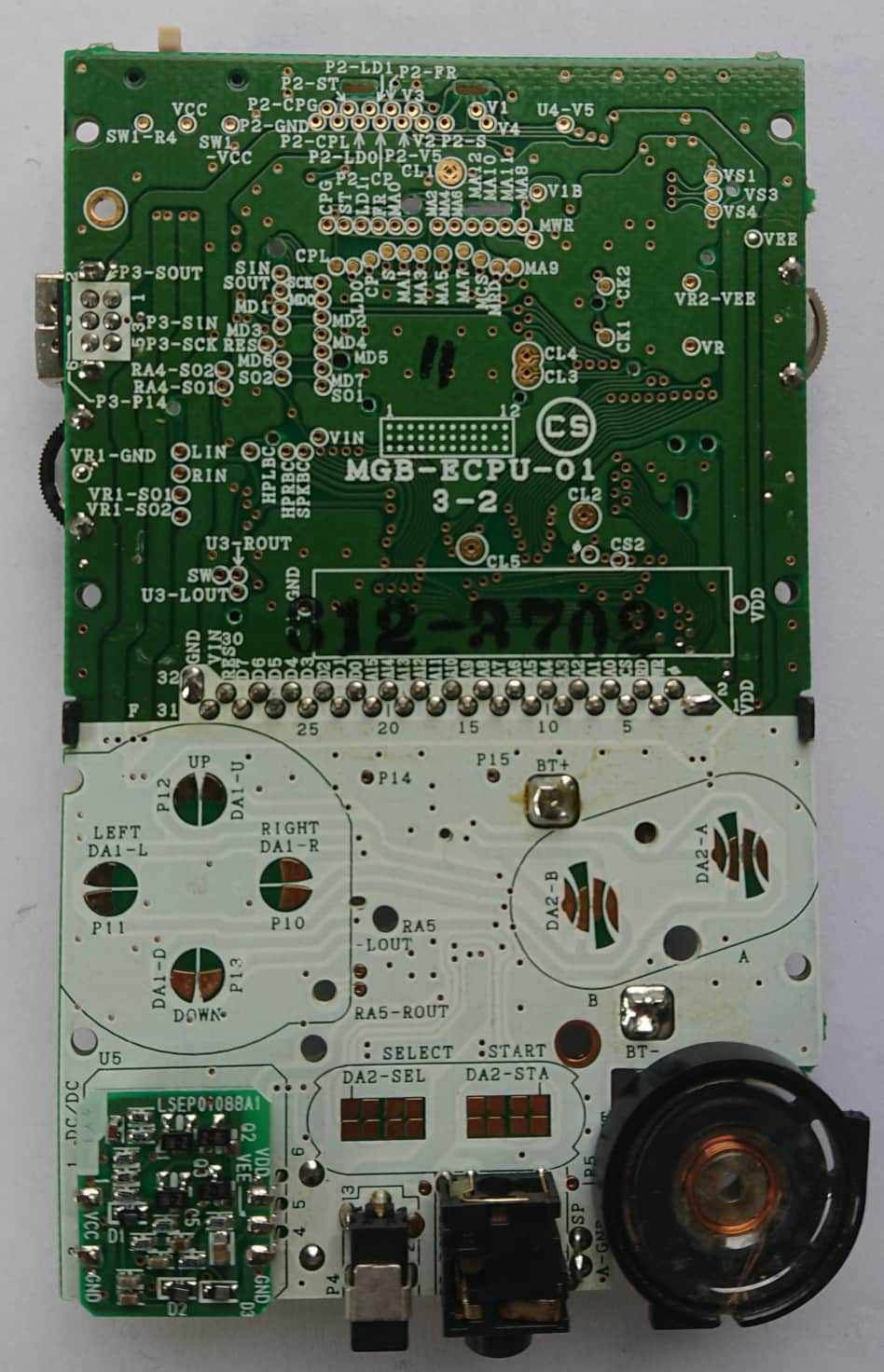

Mainboard

Board type
MGB-ECPU-01
Manufacture date
Nov 11-20/1996
Number pair on board
3-2
Stamp on board
612-3702
Circled letter(s) on board
CS

Parts

PartTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 47/1996CPU MGB Ⓜ © 1996 Nintendo JAPAN 9647 D
U2WRAMLH52A64N-PLMosel-VitelicWeek 44/1996LH52A64N-PL MOSEL-VITELIC JAPAN N644 0A C
U3Audio amplifierIR3R53NSharpWeek 41/1996AMP MGB IR3R53N 9641 C
U4LCD bias generatorIR3E02SharpWeek 40/1996DMG-REG IR3E02 9640 h
X1Crystal4.194304 MHzDaishinkuWeek 46/1996KDS 9646 4.194
-LCD column driverLH5077 B1SharpLH5077 B1
-LCD row driverLH5076 ESharpWeek 42/1996LH5076 E 6420
