MGB: MH12573718 [gekkio]
- Color
- Silver
- Assembly date
- April/1997

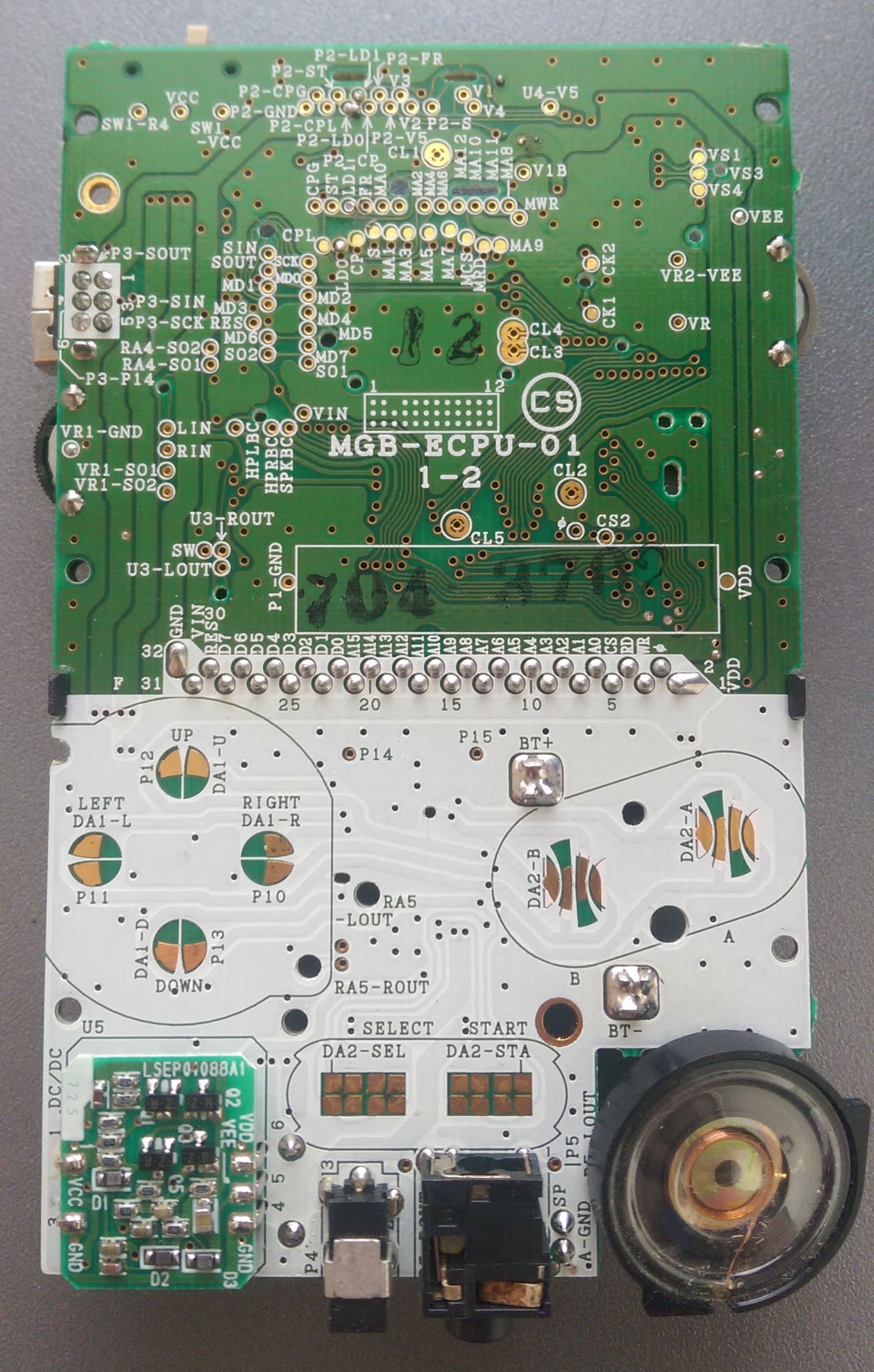

Mainboard
- Board type
- MGB-ECPU-01
- Manufacture date
- Mar 1-10/1997
- Number pair on board
- 1-2
- Stamp on board
- 704 3702
- Circled letter(s) on board
- CS

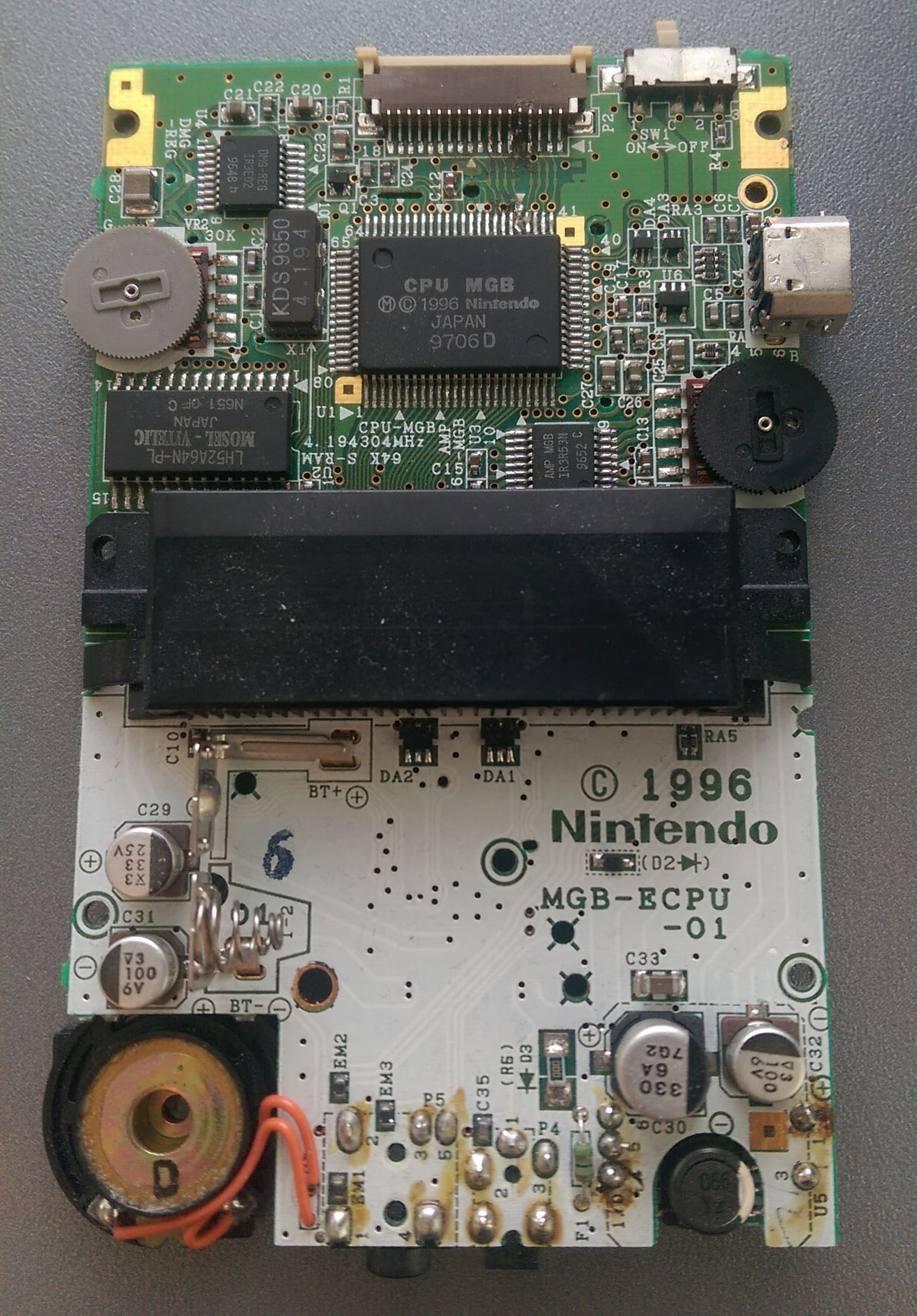

Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 6/1997 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9706 D |
| U2 | WRAM | LH52A64N-PL | Mosel-Vitelic | Week 51/1996 | LH52A64N-PL MOSEL-VITELIC JAPAN N651 0F C |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 52/1996 | AMP MGB IR3R53N 9652 c |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 48/1996 | DMG-REG IR3E02 9648 h |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 50/1996 | KDS 9650 4.194 |
| - | LCD column driver | LH5077 B1 | Sharp | Week 45/1996 | LH5077 B1 6451 |
| - | LCD row driver | LH5076 E | Sharp | Week 47/1996 | LH5076 E 6470 |
