Game Boy hardware database

MGB: MH18516918 [gekkio]

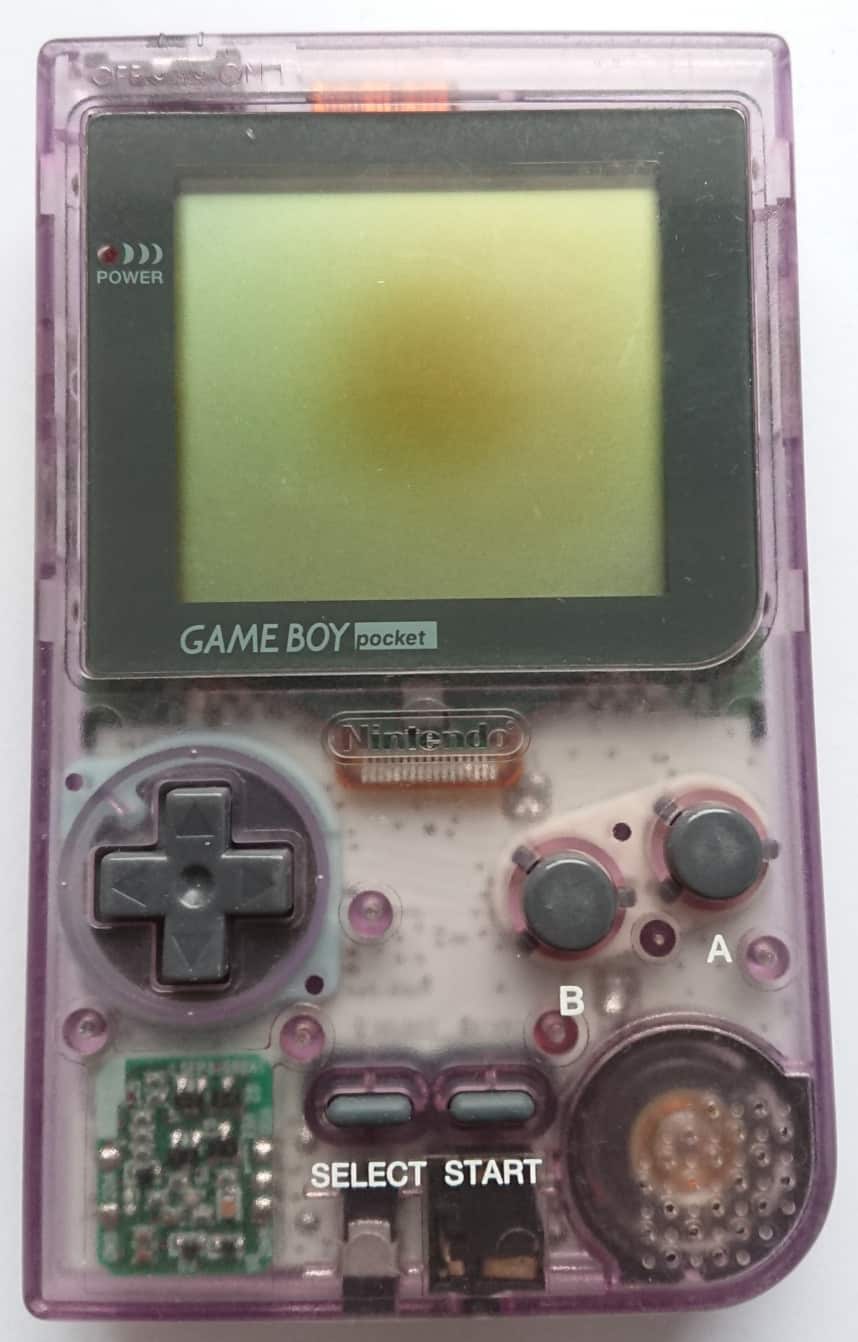

Color
ClearPurple

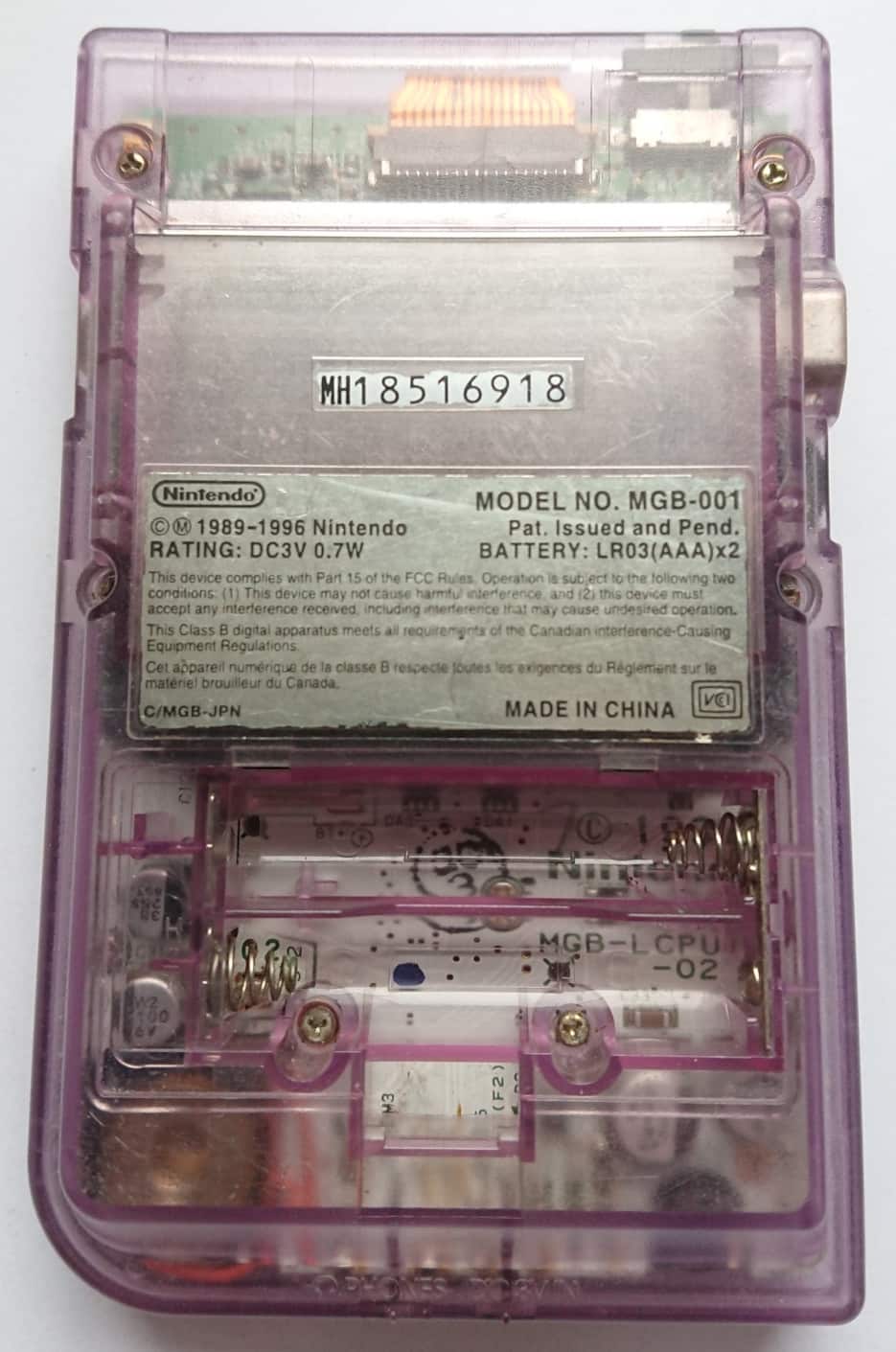

Release code
C/MGB-JPN
Assembly date
November/1998
LCD panel label
080901
LCD panel date
September/2008

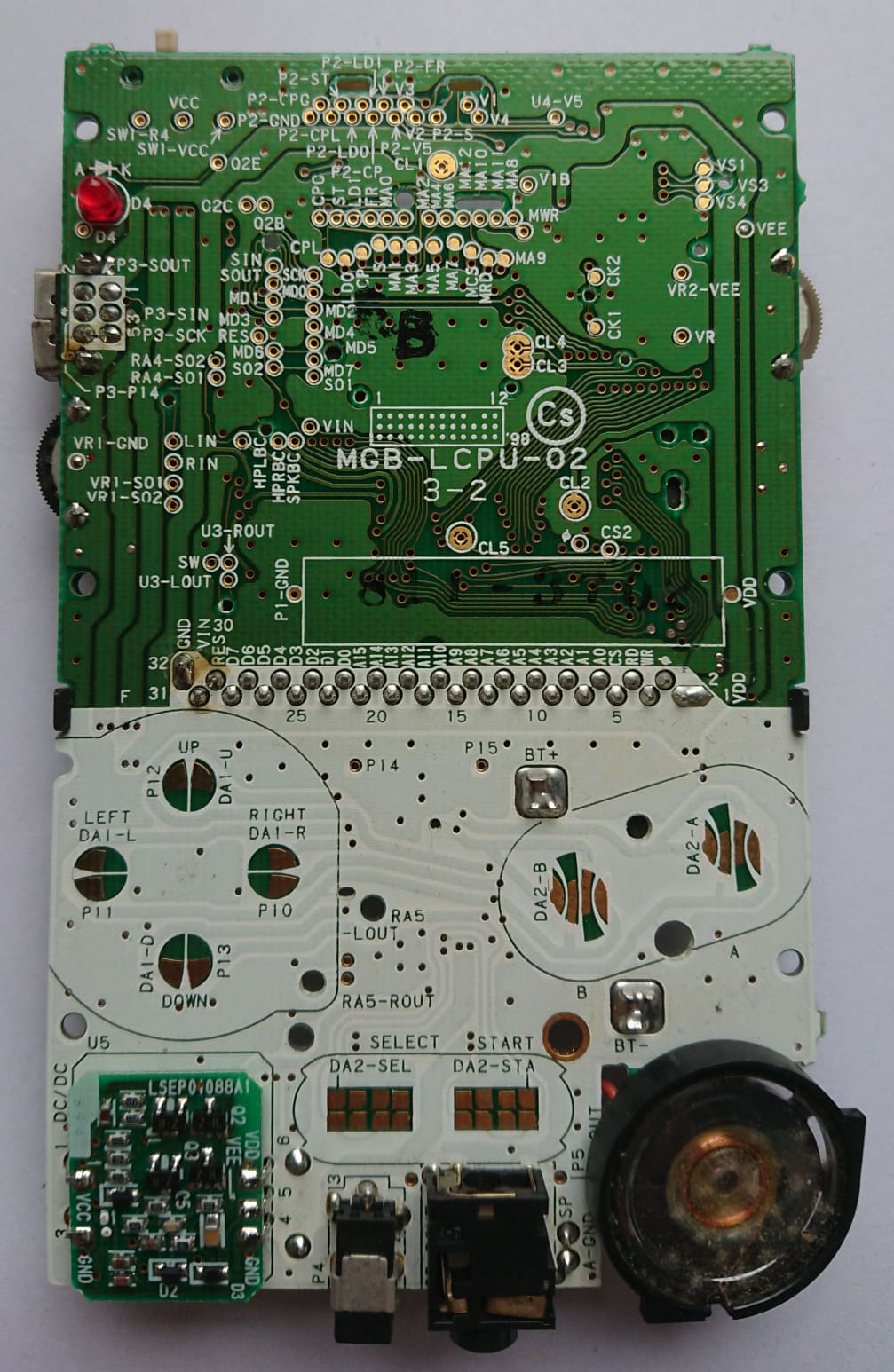

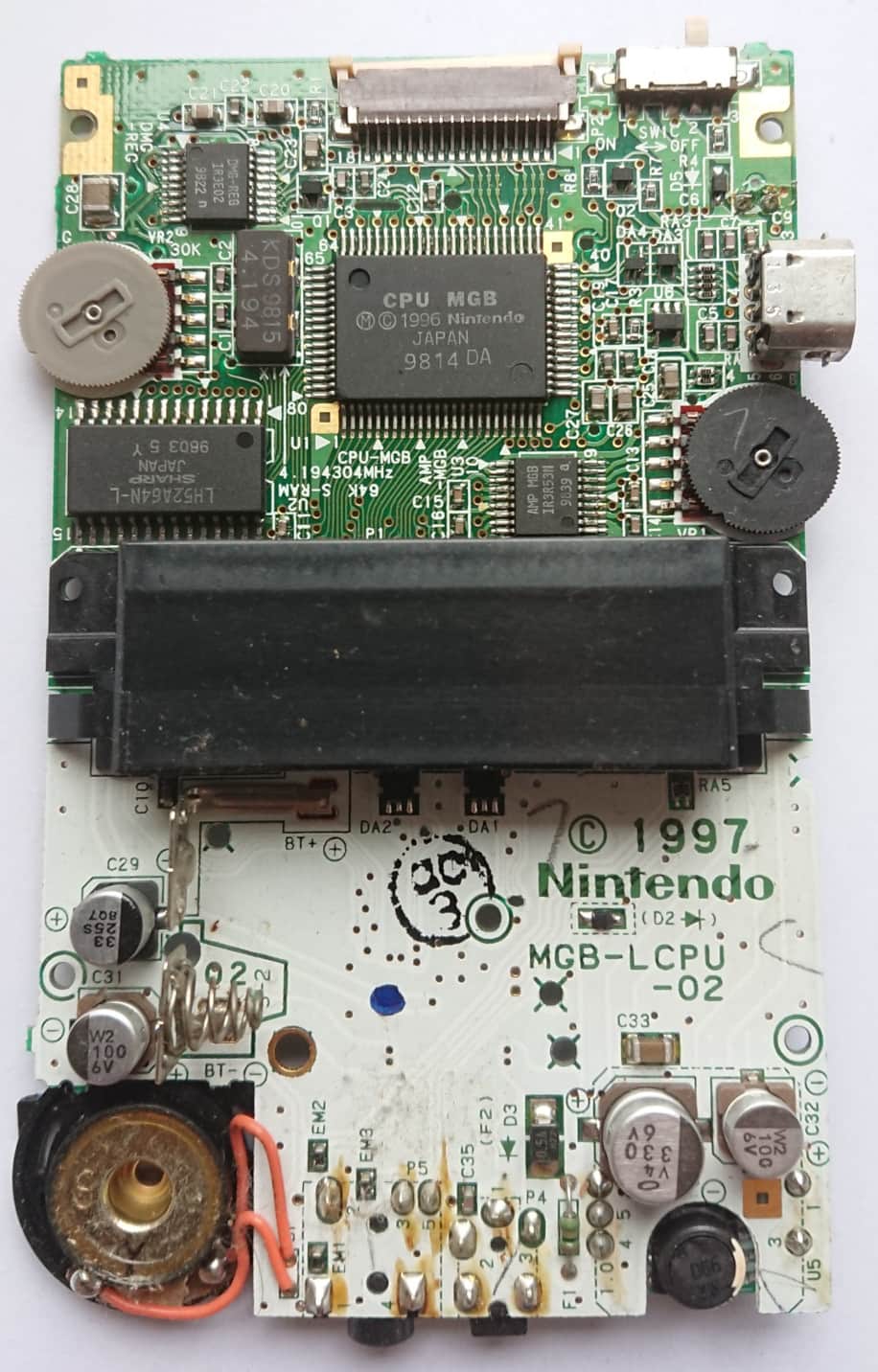

Mainboard

Board type
MGB-LCPU-02
Manufacture date
Oct 1-10/1998
Number pair on board
3-2
Stamp on board
811-3702
Circled letter(s) on board
Cs

Parts

PartTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 14/1998CPU MGB Ⓜ © 1996 Nintendo JAPAN 9814 DA
U2WRAMLH52A64N-LSharpWeek 3/1998LH52A64N-L SHARP JAPAN 9803 5 Y
U3Audio amplifierIR3R53NSharpWeek 39/1998AMP MGB IR3R53N 9839 a
U4LCD bias generatorIR3E02SharpWeek 22/1998DMG-REG IR3E02 9822 n
X1Crystal4.194304 MHzDaishinkuWeek 15/1998KDS 9815 4.194
-LCD column driverLH5077 B1SharpLH5077 B1
-LCD row driverLH5076 ESharpWeek 17/1998LH5076 E 8170
