MGB: Unit #1 [curbsideaudio]

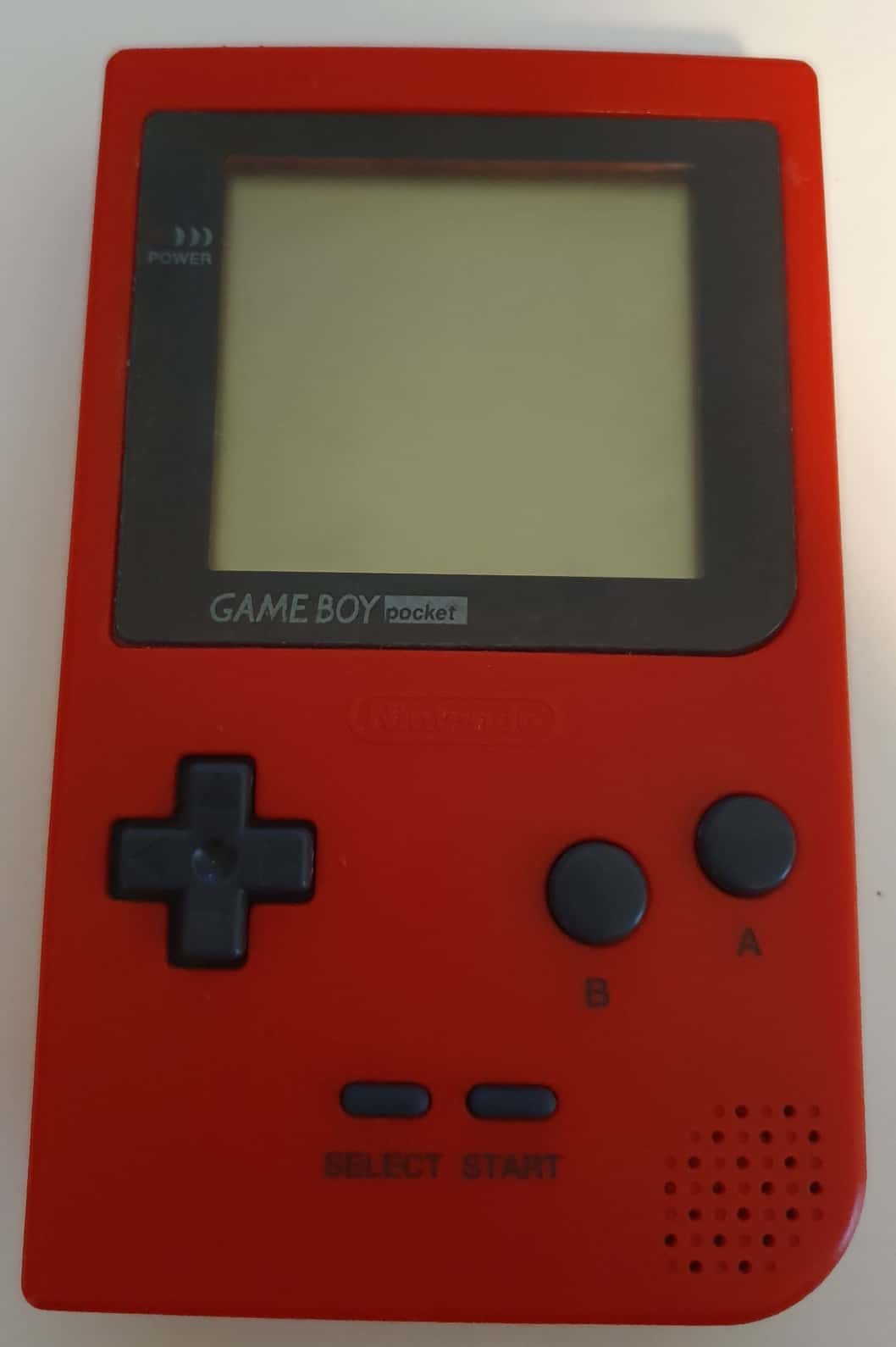

- Color
- Red

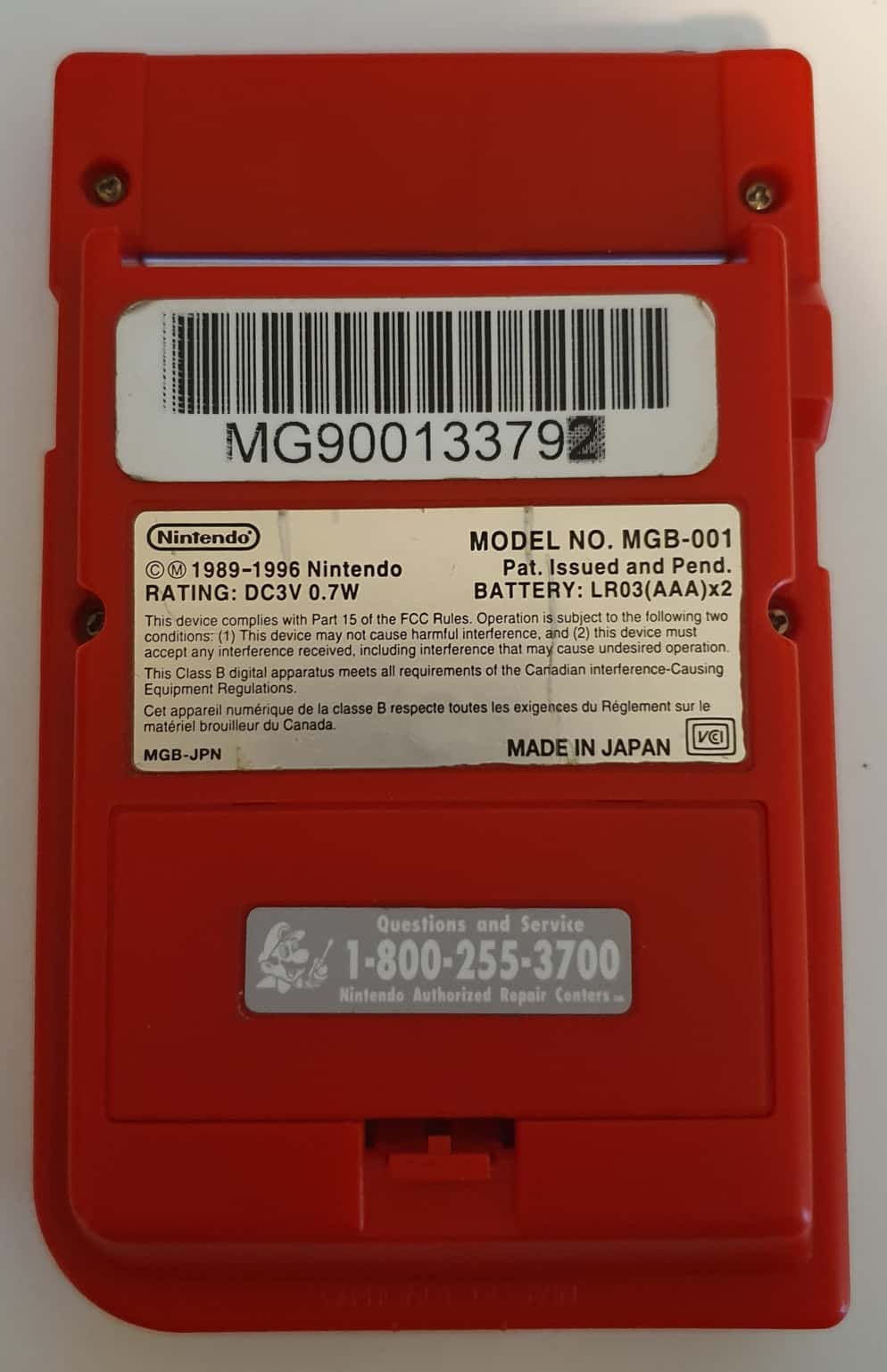

- Release code
- MGB-JPN
- Assembly date
- August/1997

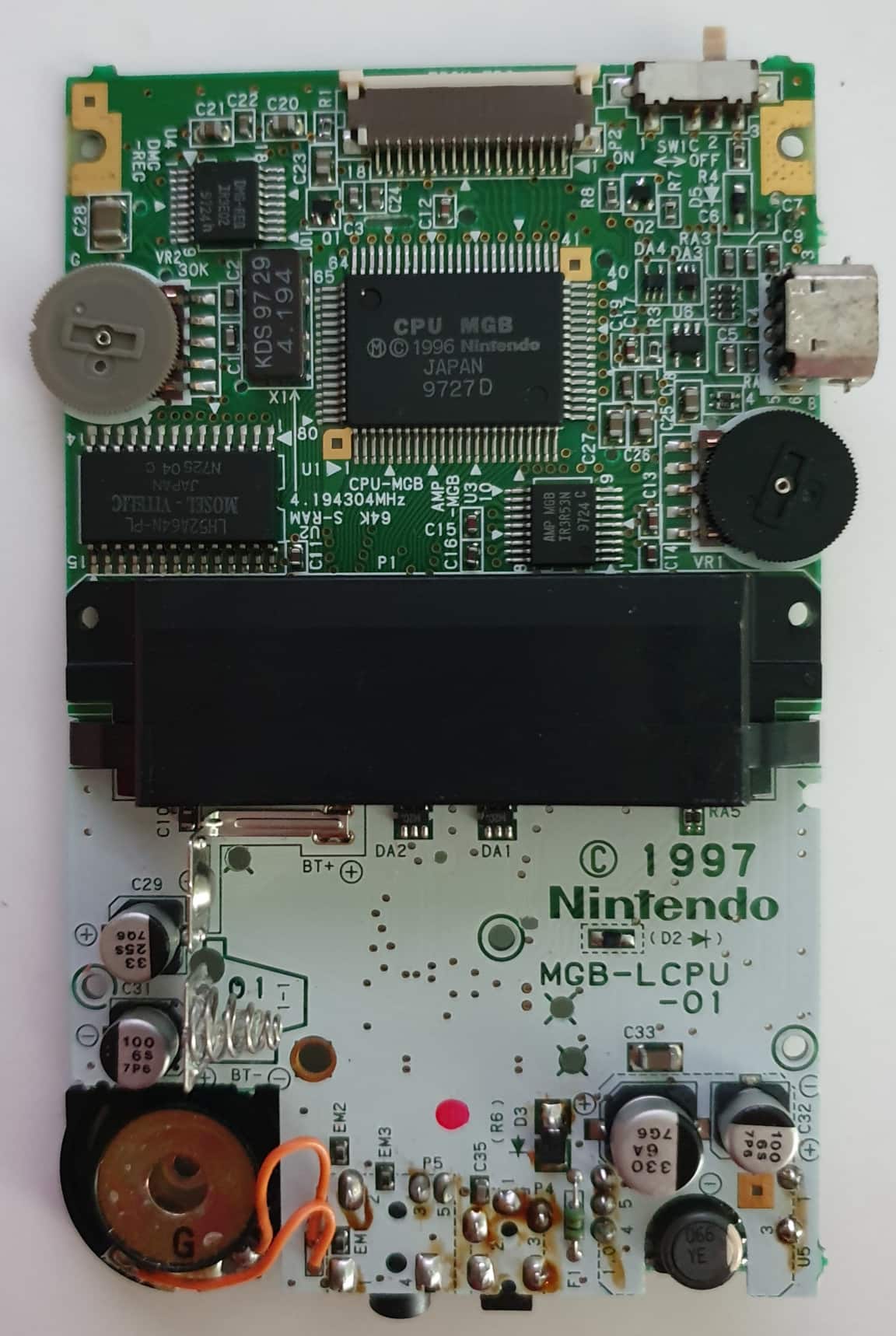

Mainboard
- Board type
- MGB-LCPU-01
- Manufacture date
- Jun 21-30/1997

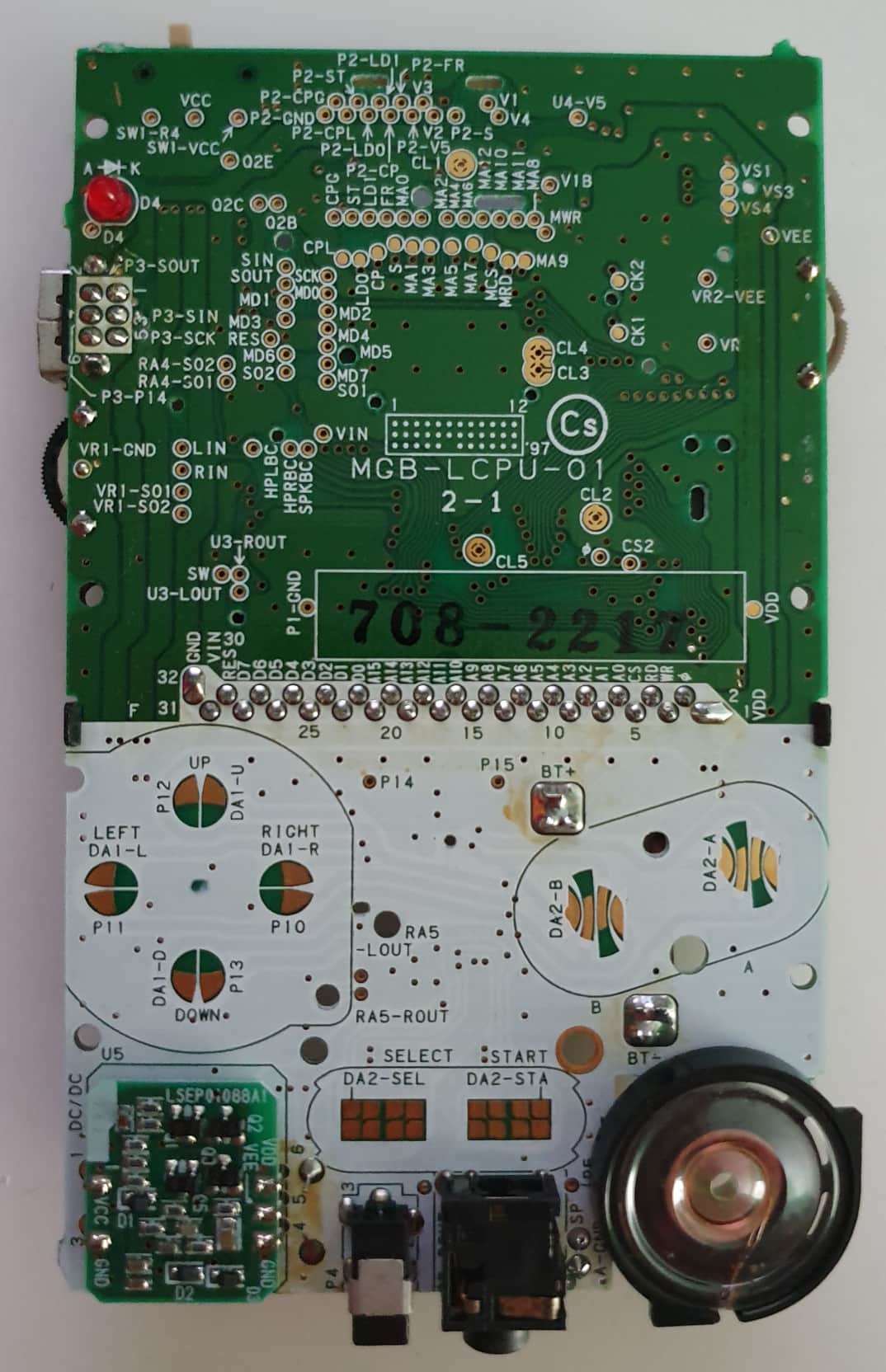

- Number pair on board
- 2-1
- Stamp on board
- 708-2217
- Circled letter(s) on board
- Cs
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 27/1997 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9727 D |
| U2 | WRAM | LH52A64N-PL | Mosel-Vitelic | Week 25/1997 | LH52A64N-PL MOSEL-VITELIC JAPAN N725 04 C |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 24/1997 | AMP MGB IR3R53N 9724 C |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 24/1997 | DMG-REG IR3E02 9724 h |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 29/1997 | KDS 9729 4.194 |
| - | LCD column driver | ||||
| - | LCD row driver |
