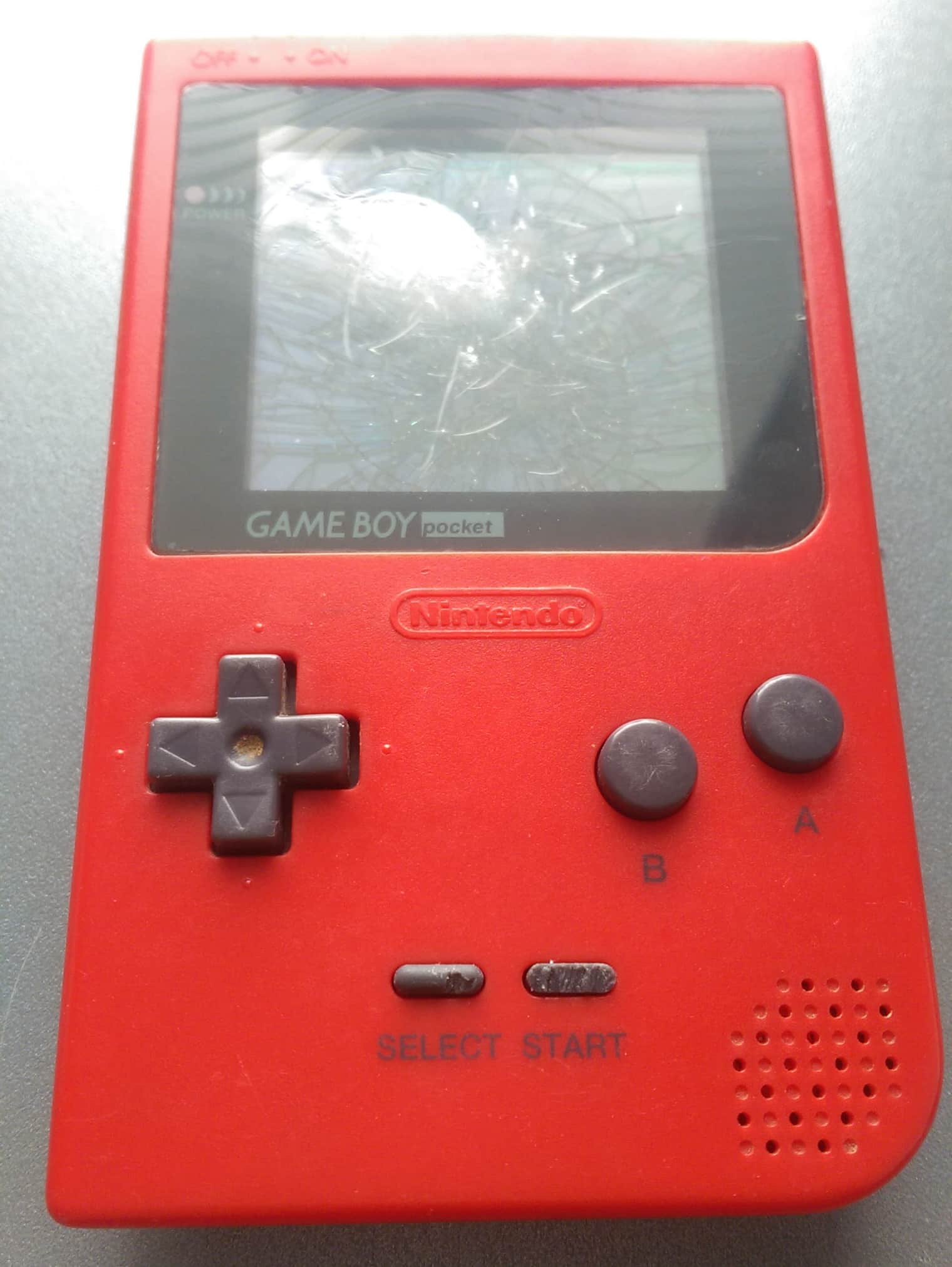

MGB: Unit #1 [gekkio]
- Color
- Red
- Assembly date
- July/1998

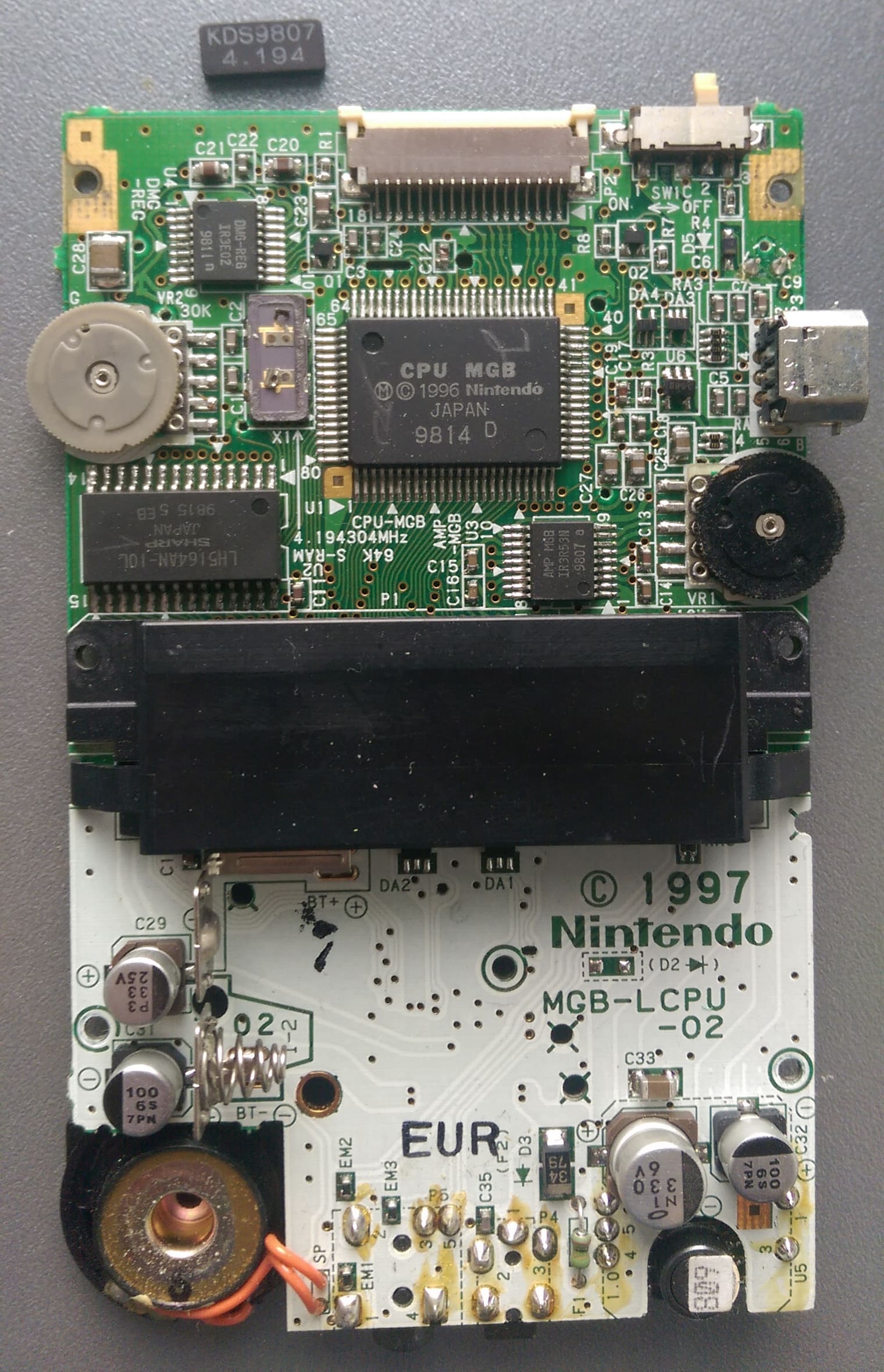

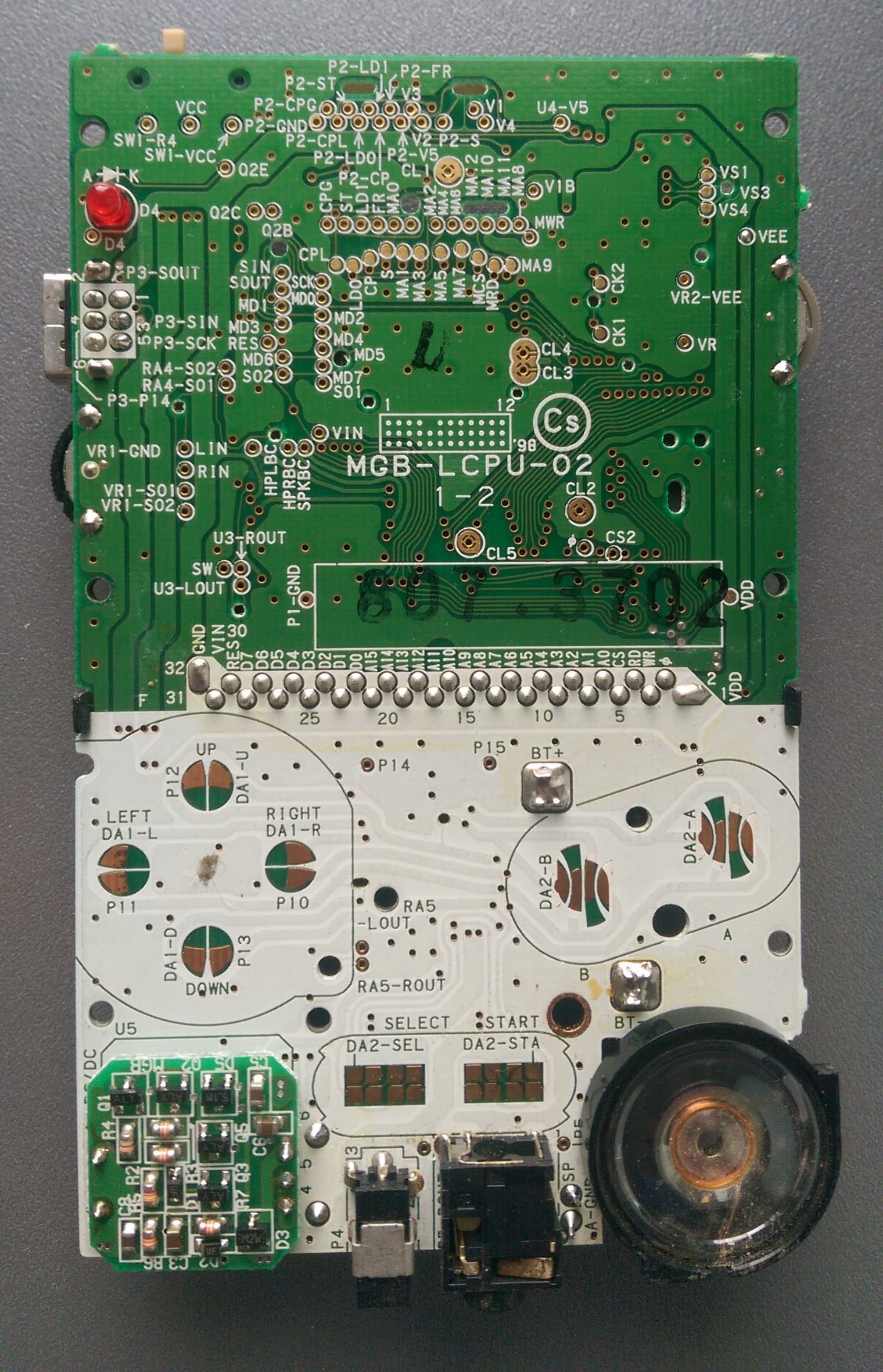

Mainboard
- Board type
- MGB-LCPU-02
- Manufacture date
- May 1-10/1998
- Number pair on board
- 1-2
- Stamp on board
- 807.3702
- Circled letter(s) on board
- Cs
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 14/1998 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9814 D |
| U2 | WRAM | LH5164AN-10L | Sharp | Week 15/1998 | LH5164AN-10L SHARP JAPAN 9815 5 EB |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 7/1998 | AMP MGB IR3R53N 9807 a |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 11/1998 | DMG-REG IR3E02 9811 n |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 7/1998 | KDS9807 4.194 |
| - | LCD column driver | LH5077 B1 | Sharp | Week 11/1998 | LH5077 B1 8111 |
| - | LCD row driver | LH5076 E | Sharp | Week 40/1997 | LH5076 E 7400 |
