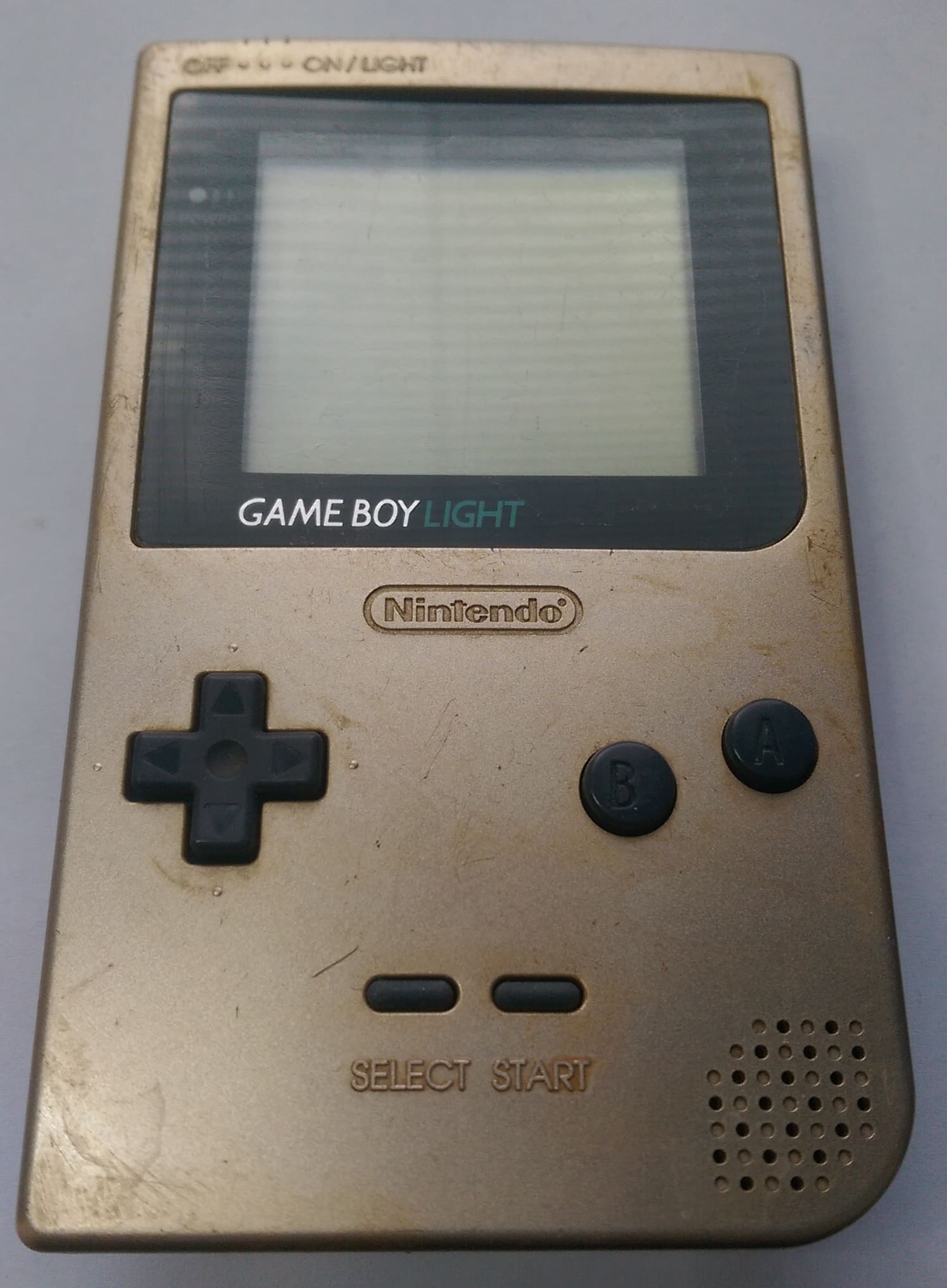

MGL: L10610653 [gekkio]
- Color
- Gold

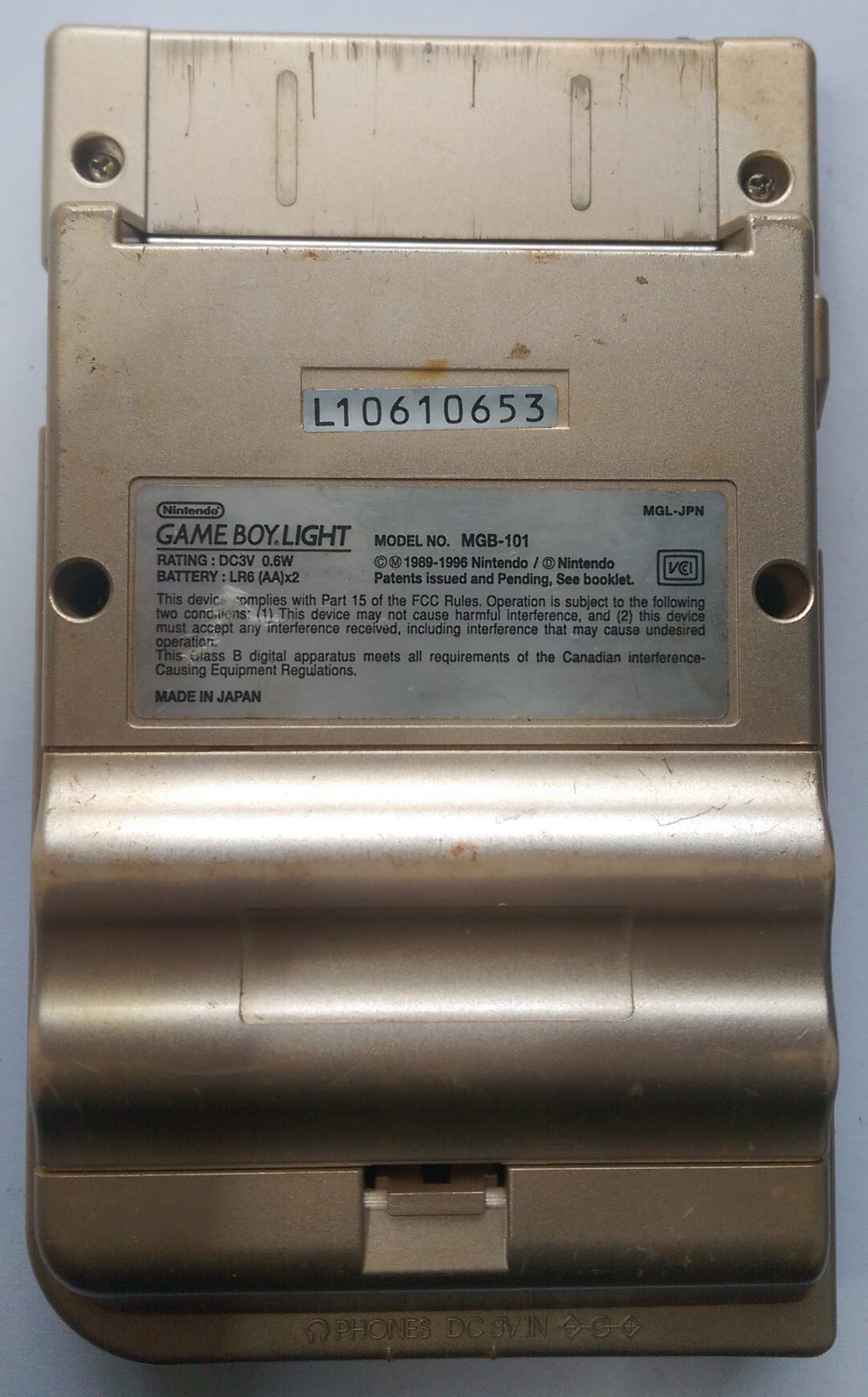

- Release code
- MGL-JPN
- Assembly date
- Week 21/1998

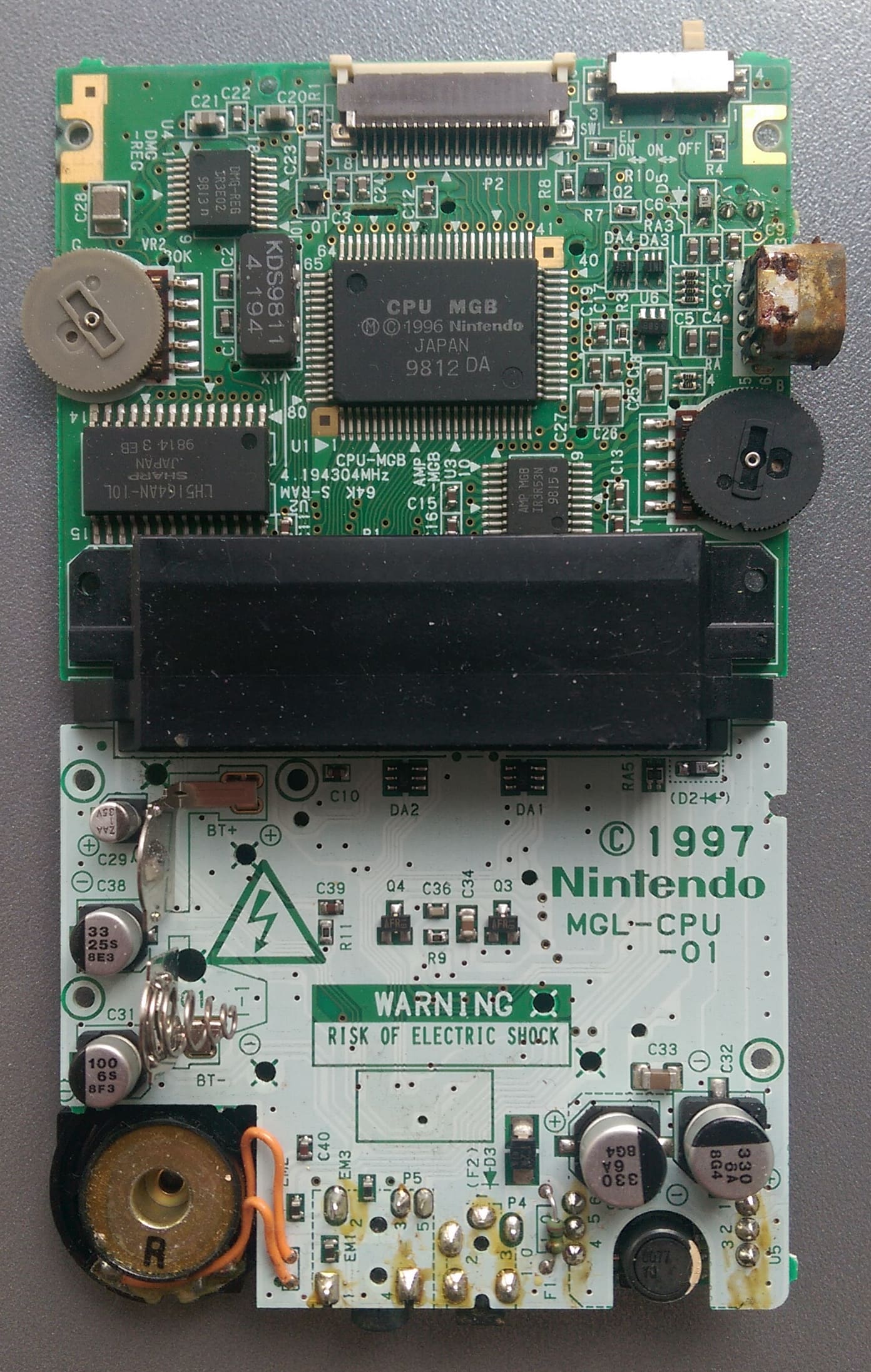

Mainboard
- Board type
- MGL-CPU-01
- Manufacture date
- Apr 1-10/1998

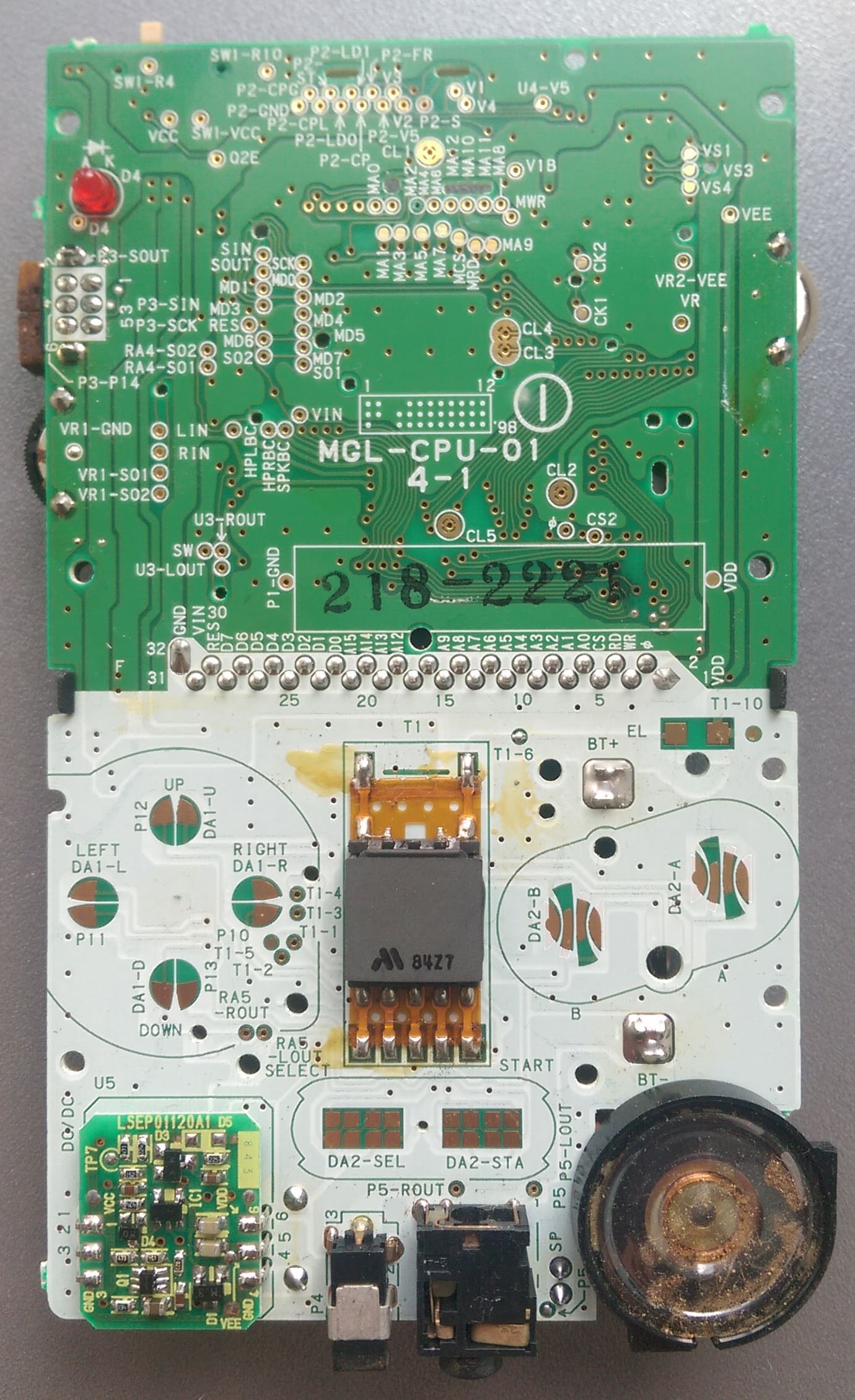

- Number pair on board
- 4-1
- Stamp on board
- 218-2221
- Circled letter(s) on board
- I
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 12/1998 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9812 DA |
| U2 | WRAM | LH5164AN-10L | Sharp | Week 14/1998 | LH5164AN-10L SHARP JAPAN 9814 3 EB |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 15/1998 | AMP MGB IR3R53N 9815 a |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 13/1998 | DMG-REG IR3E02 9813 n |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 11/1998 | KDS 9811 4.194 |
| T1 | Transformer | 84Z7 | Mitsumi | 84Z7 | |
| - | LCD column driver | LH5077 B1 | Sharp | LH5077 B1 | |
| - | LCD row driver | LH5076 E | Sharp | Week 12/1998 | LH5076 E 8120 |
