SGB: Unit #5 [gekkio]

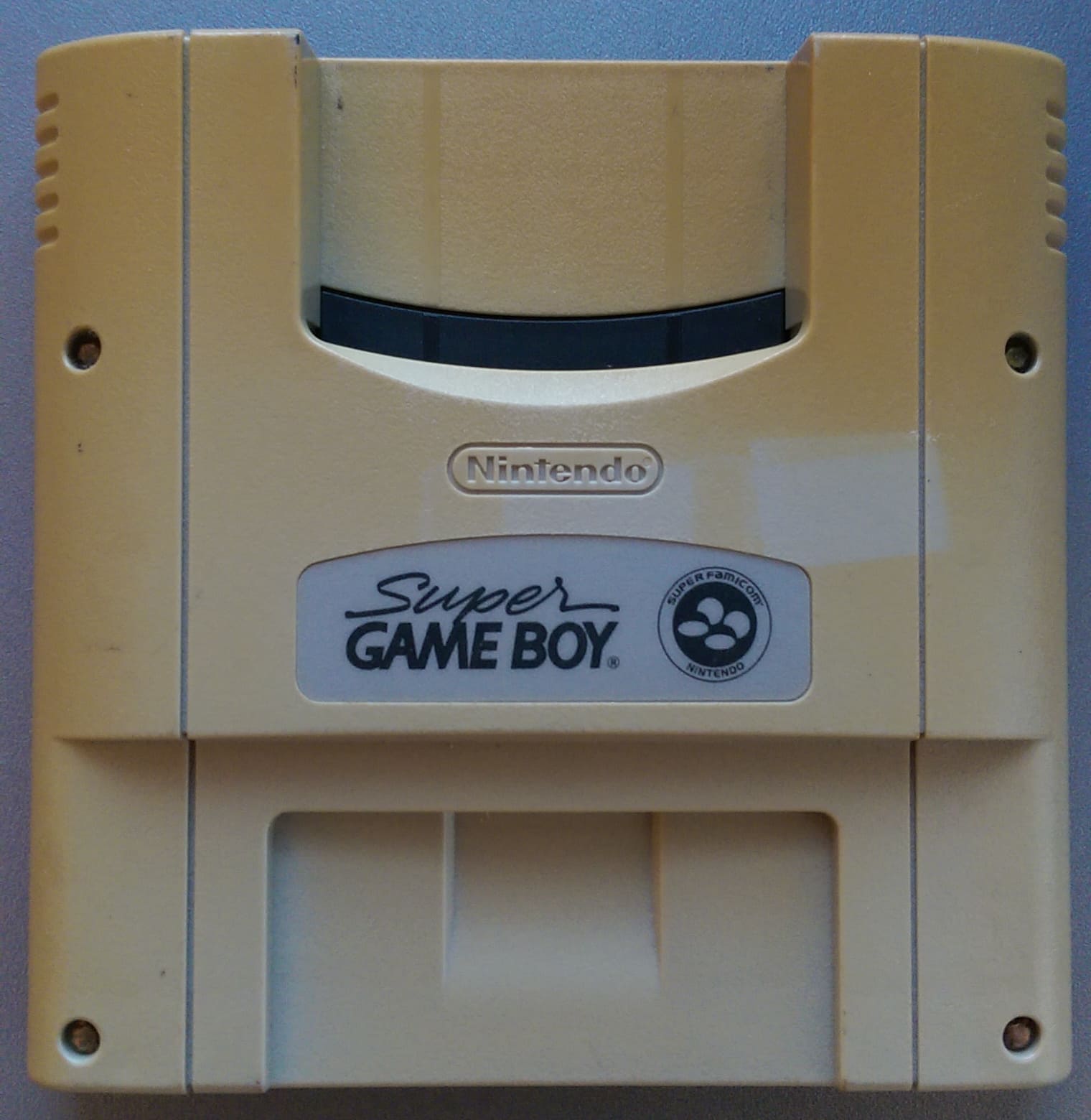

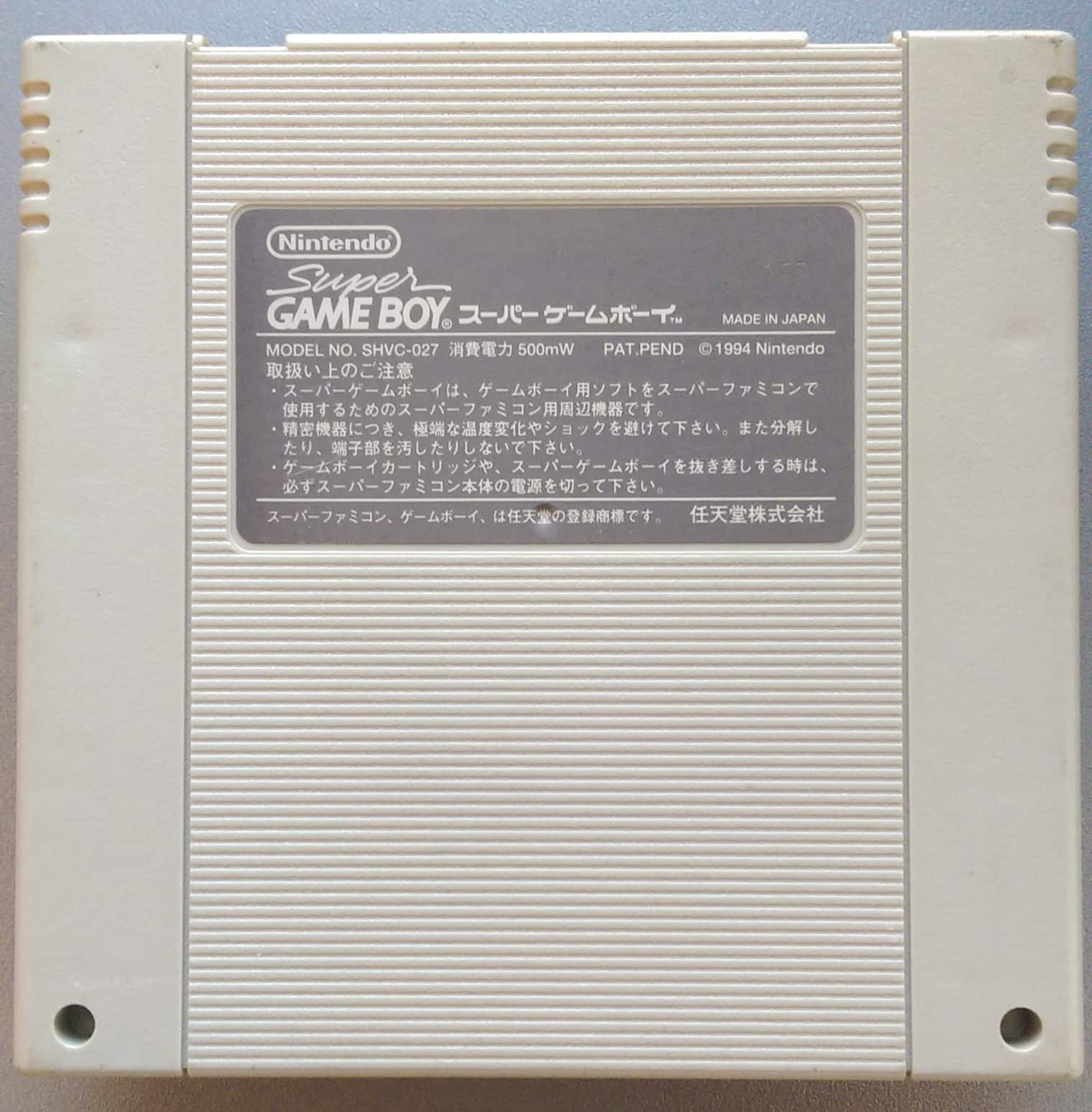

- Stamp on case
- 15B

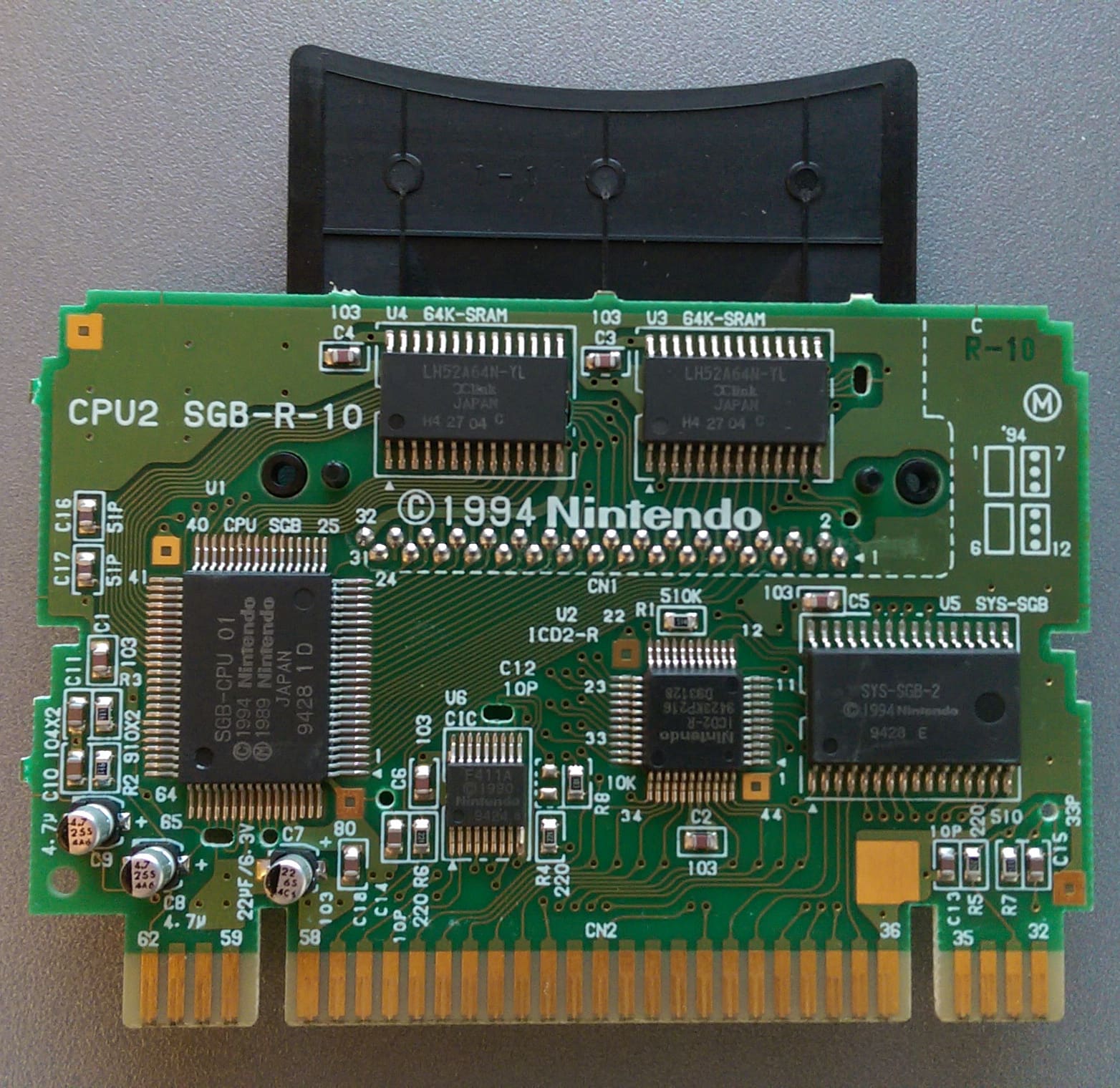

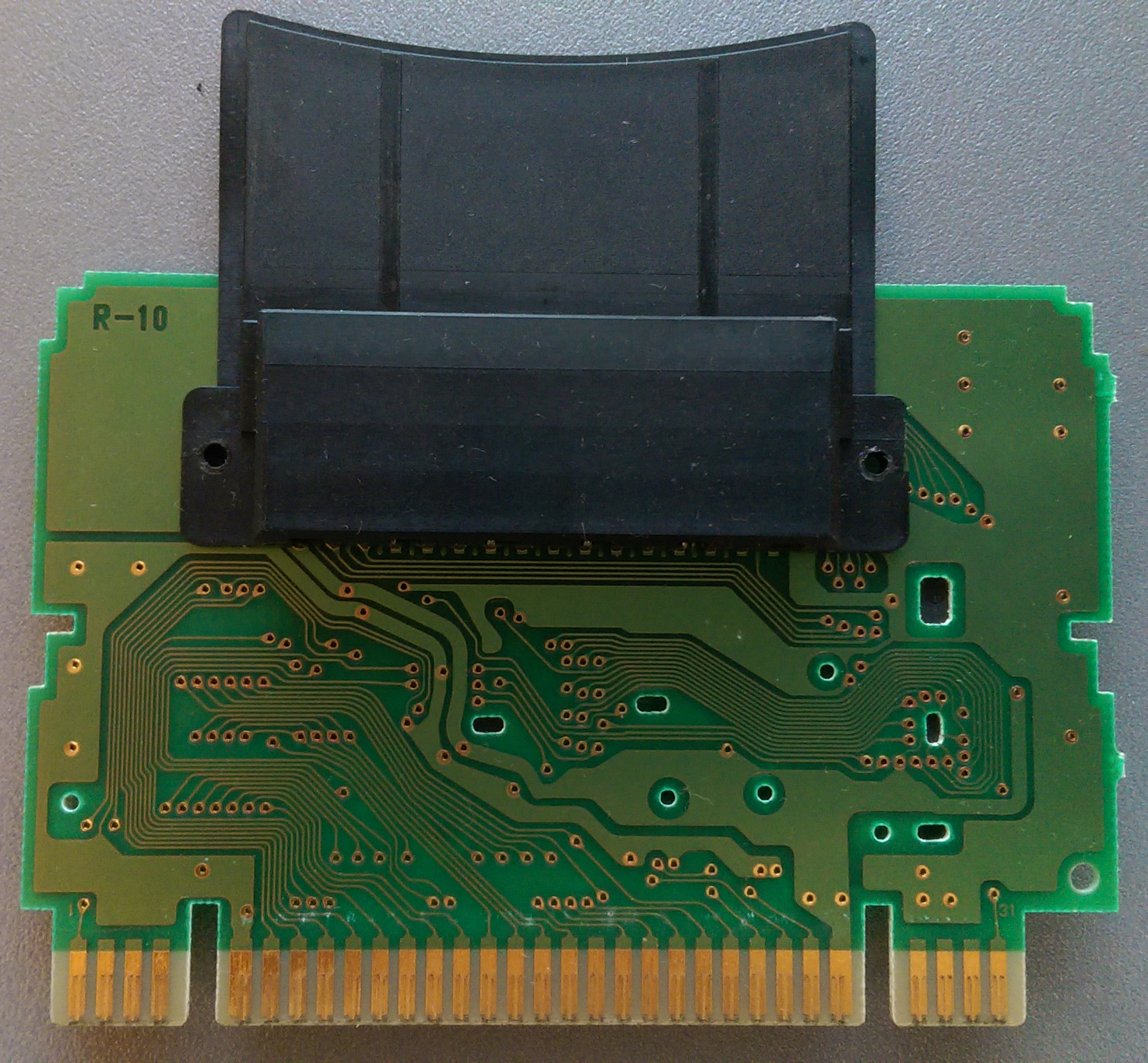

Mainboard
- Board type
- SGB-R-10
- Manufacture date
- June/1994
- Circled letter(s) on board
- M
- Letter at top right
- C
Parts
Part | Type | Manufacturer | Date | Label | |
---|---|---|---|---|---|
U1 | CPU | SGB-CPU 01 | Sharp | Week 28/1994 | SGB-CPU 01 © 1994 Nintendo Ⓜ 1989 Nintendo JAPAN 9428 1 D |
U2 | ICD2 | ICD2-R | NEC | Week 23/1994 | Nintendo ICD2-R 9423KP216 D93128 |
U3 | WRAM | LH52A64N-YL | Crosslink Semiconductor | Week 27/1994 | LH52A64N-YL Xlink JAPAN H4 27 04 C |
U4 | VRAM | LH52A64N-YL | Crosslink Semiconductor | Week 27/1994 | LH52A64N-YL Xlink JAPAN H4 27 04 C |
U5 | ROM | Week 28/1994 | SYS-SGB-2 © 1994 Nintendo 9428 E | ||
U6 | CIC | F411A | Sharp | Week 24/1994 | F411A © 1990 Nintendo 9424 a |
