SGB2: Unit #2 [gekkio]

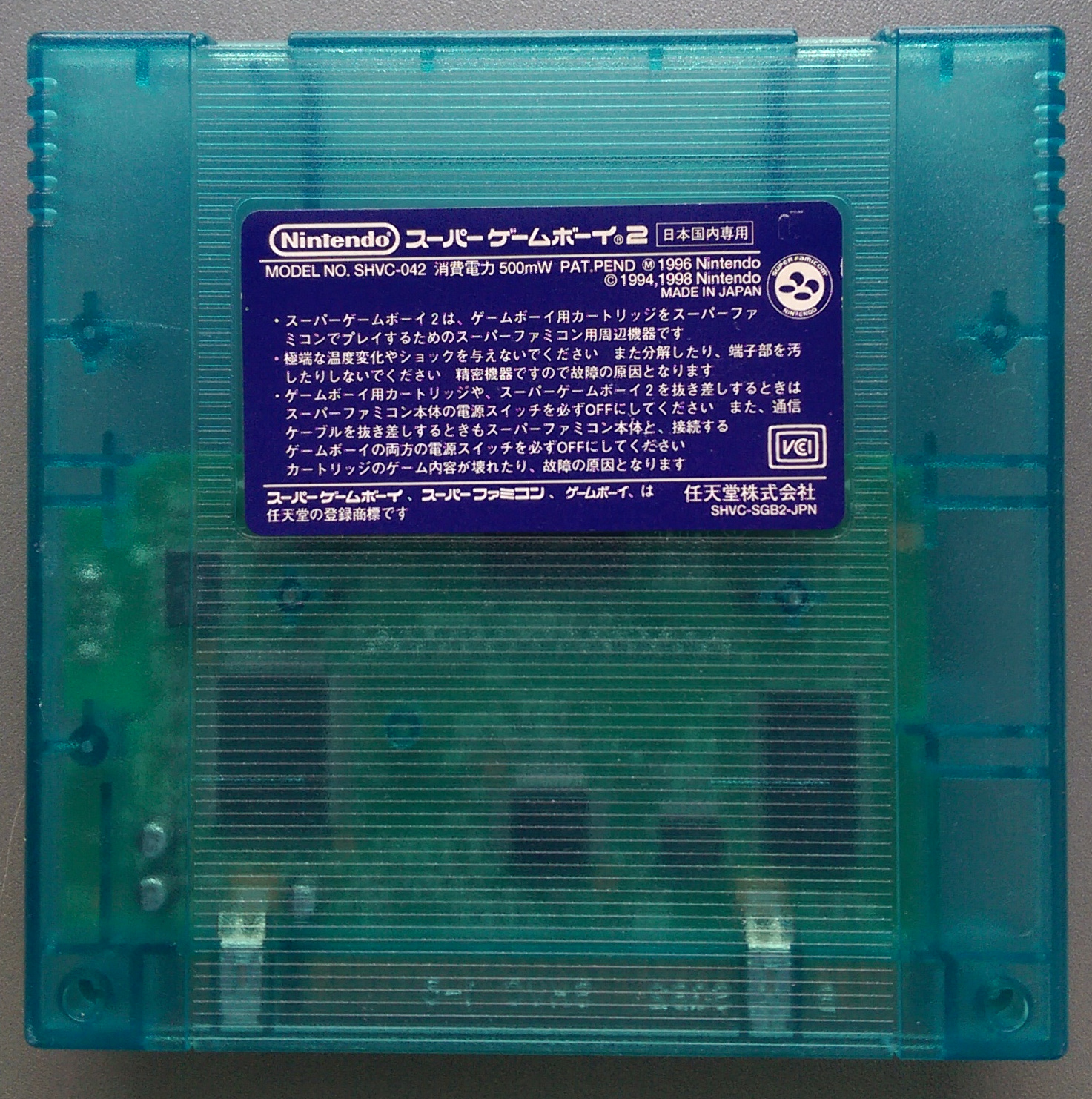

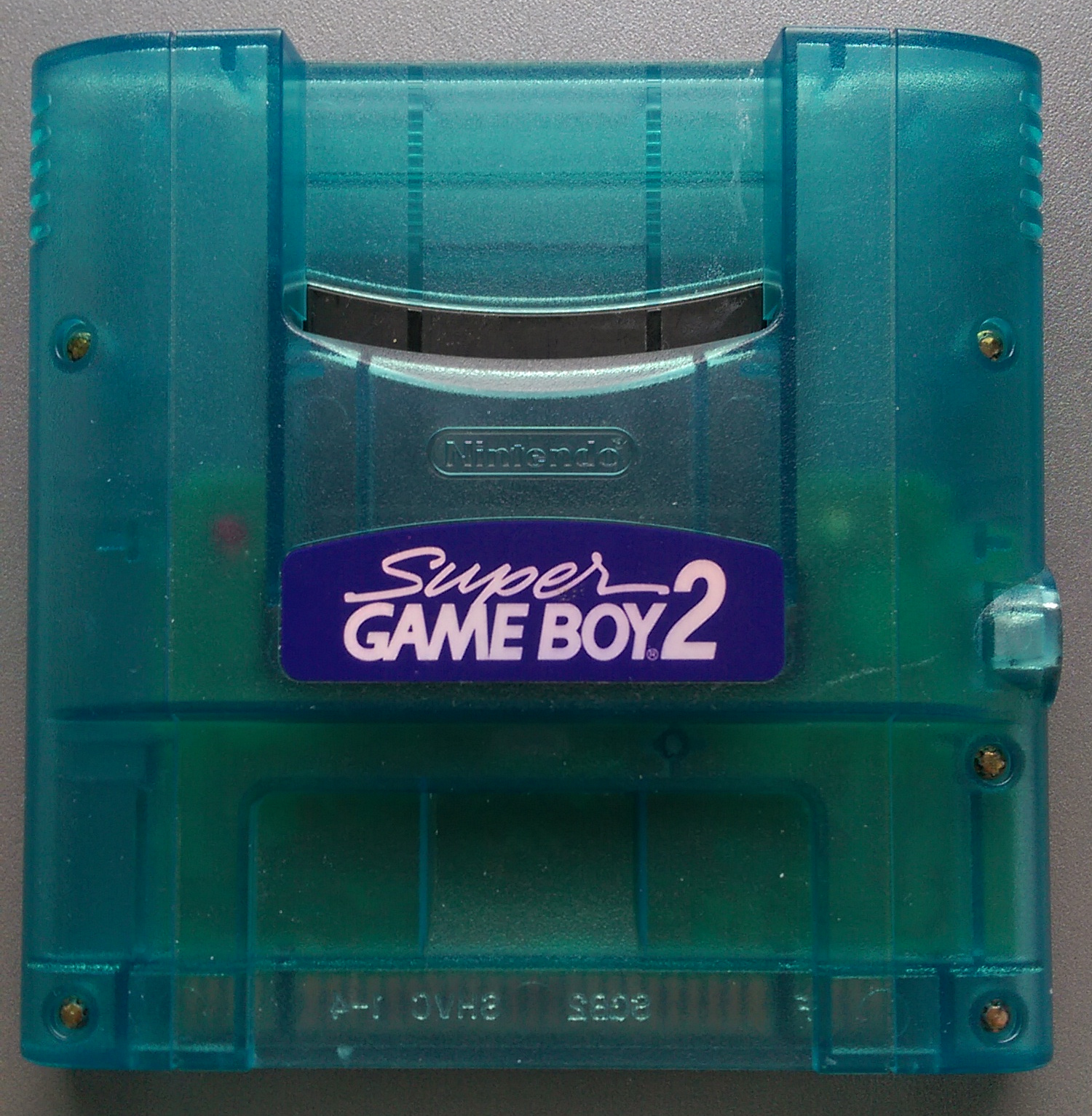

- Stamp on case
- 07

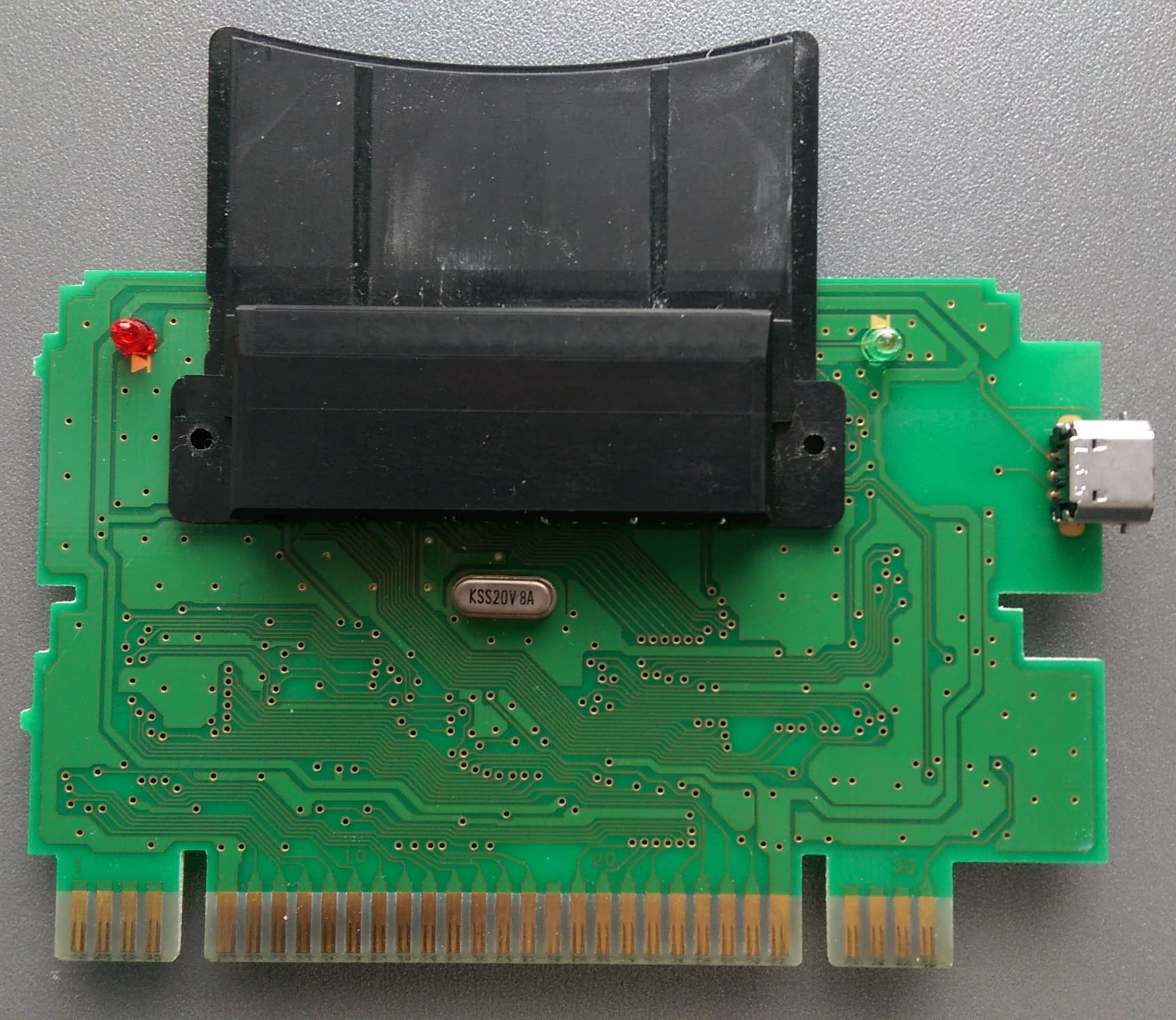

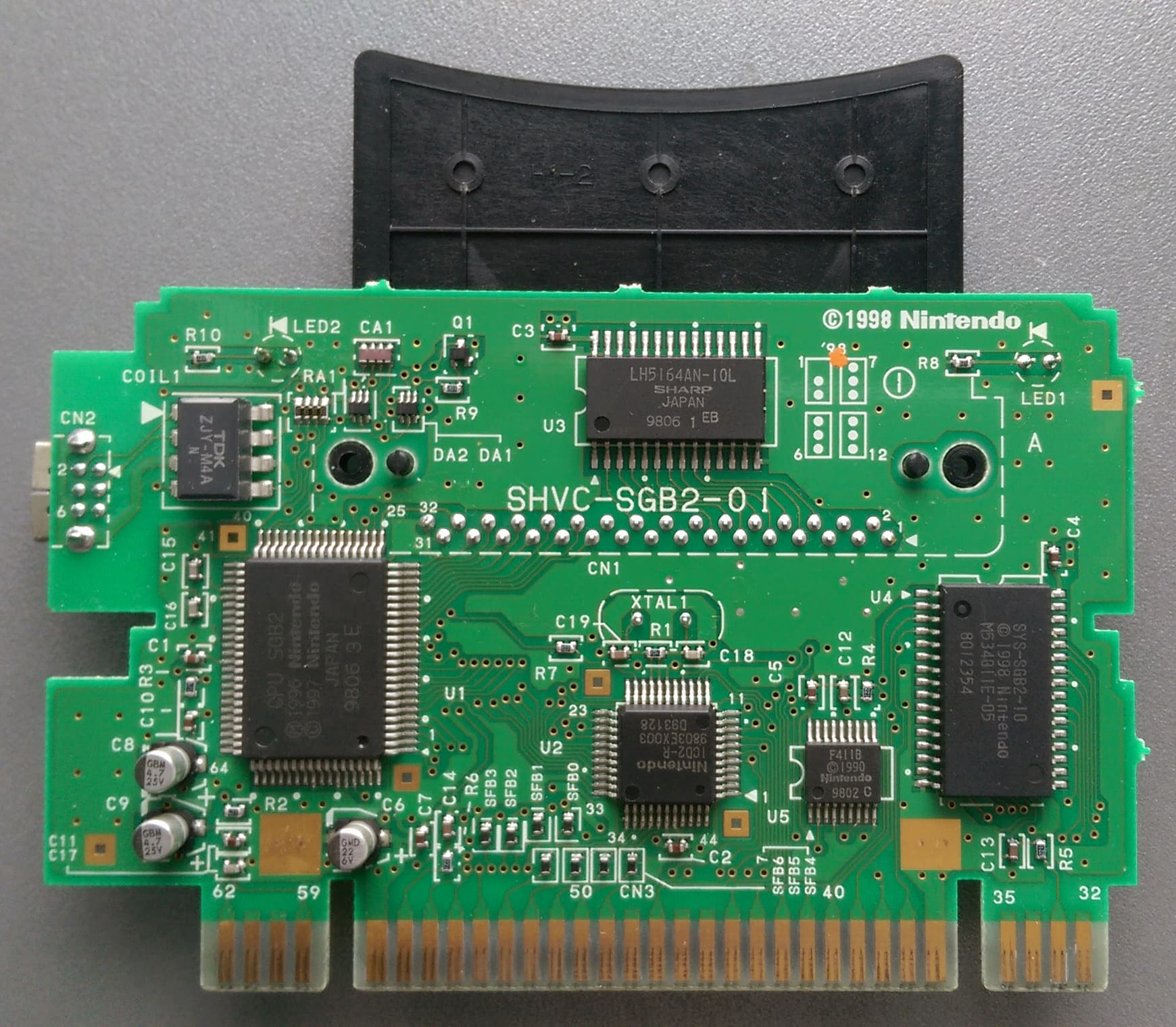

Mainboard
- Board type
- SHVC-SGB2-01
- Manufacture date
- January/1998
- Circled letter(s) on board
- I
- Letter at top right
- A
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU SGB2 | Sharp | Week 6/1998 | CPU SGB2 Ⓜ 1996 Nintendo © 1997 Nintendo JAPAN 9806 3 E |
| U2 | ICD2 | ICD2-R | NEC | Week 3/1998 | Nintendo ICD2-R 9803EX003 D93128 |
| U3 | WRAM | LH5164AN-10L | Sharp | Week 6/1998 | LH5164AN-10L SHARP JAPAN 9806 1 EB |
| U4 | ROM | MSM534011E | OKI | Week 1/1998 | SYS-SGB2-10 © 1998 Nintendo M534011E-05 8012354 |
| U5 | CIC | F411B | Sharp | Week 2/1998 | F411B © 1990 Nintendo 9802 C |
| XTAL1 | Crystal | 20.971520 MHz | Kinseki | January/1998 | KSS20V 8A |
| COIL1 | Coil | ZJY-M4A | TDK | TDK ZJY-M4A N |
