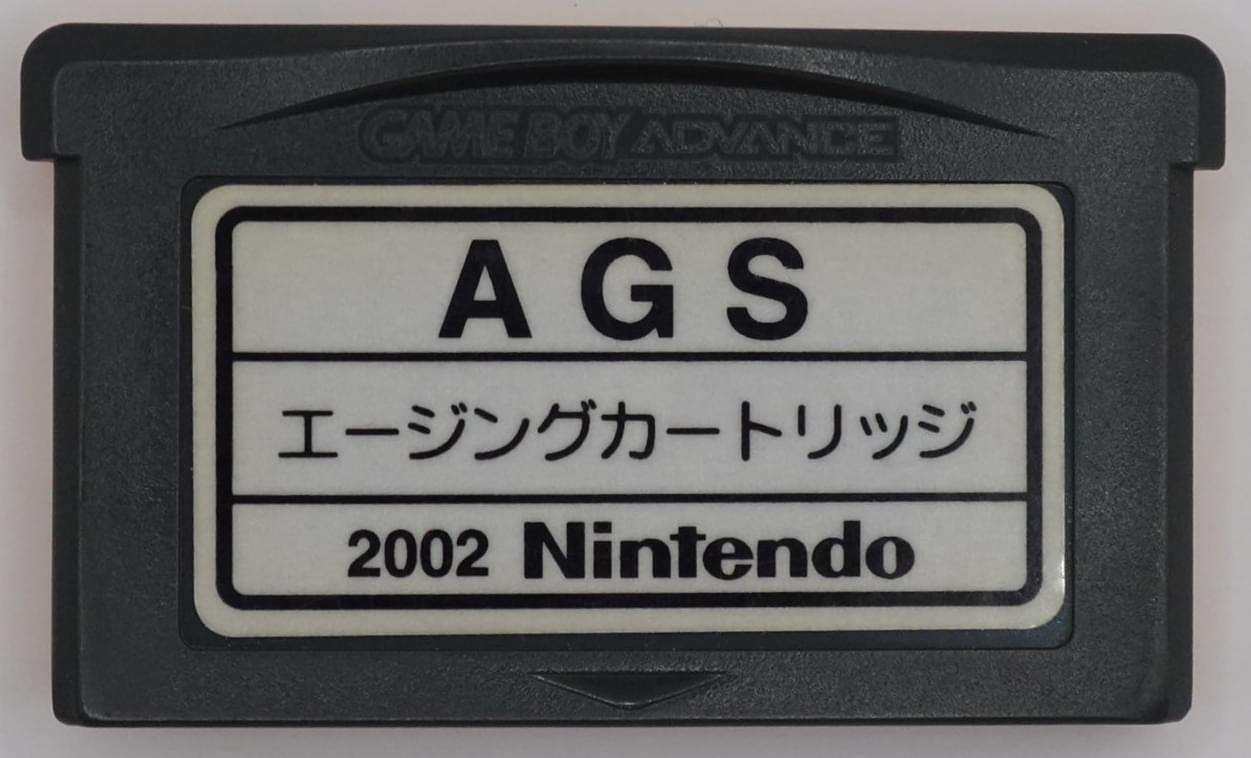

AGS Aging Cartridge (World) (Rev 1) (v7.0) (Test Program): Entry #1 [Smelly-Ghost]

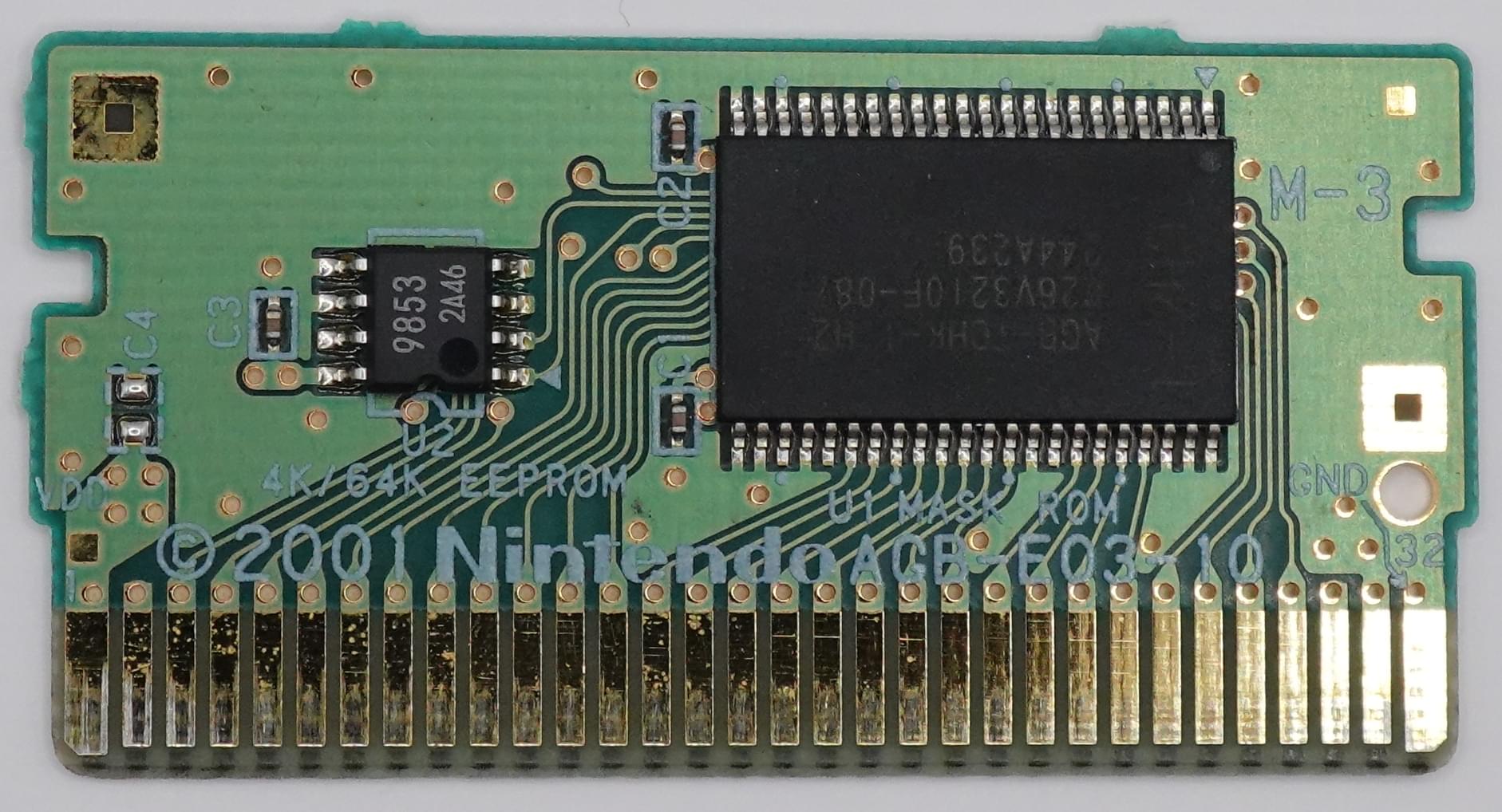

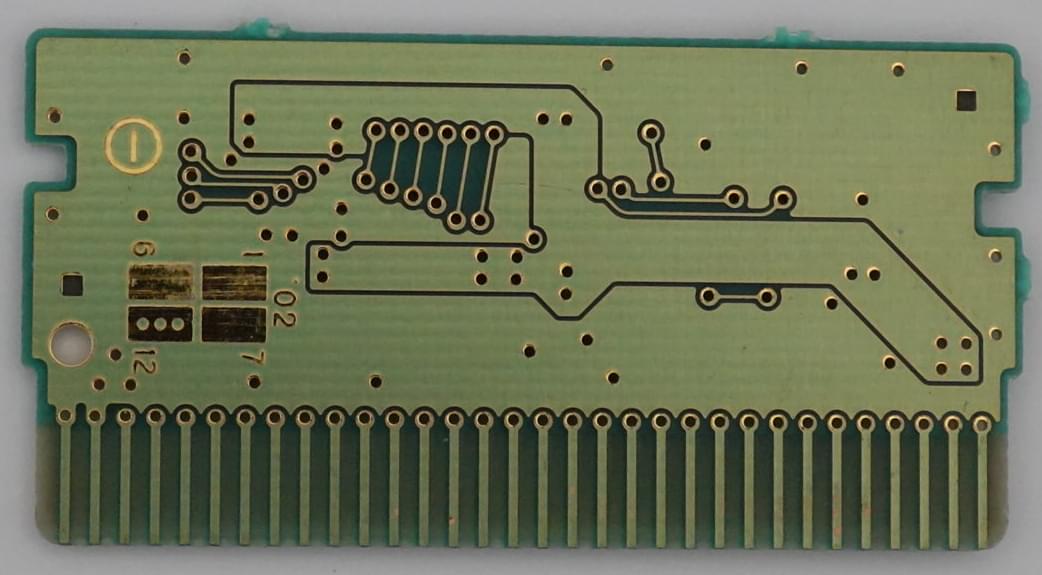

Board
- Board type
- AGB-E03-10
- Manufacture date
- September/2002
- Circled letter(s) on board
- I
- Position in PCB panel
- M-3
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|

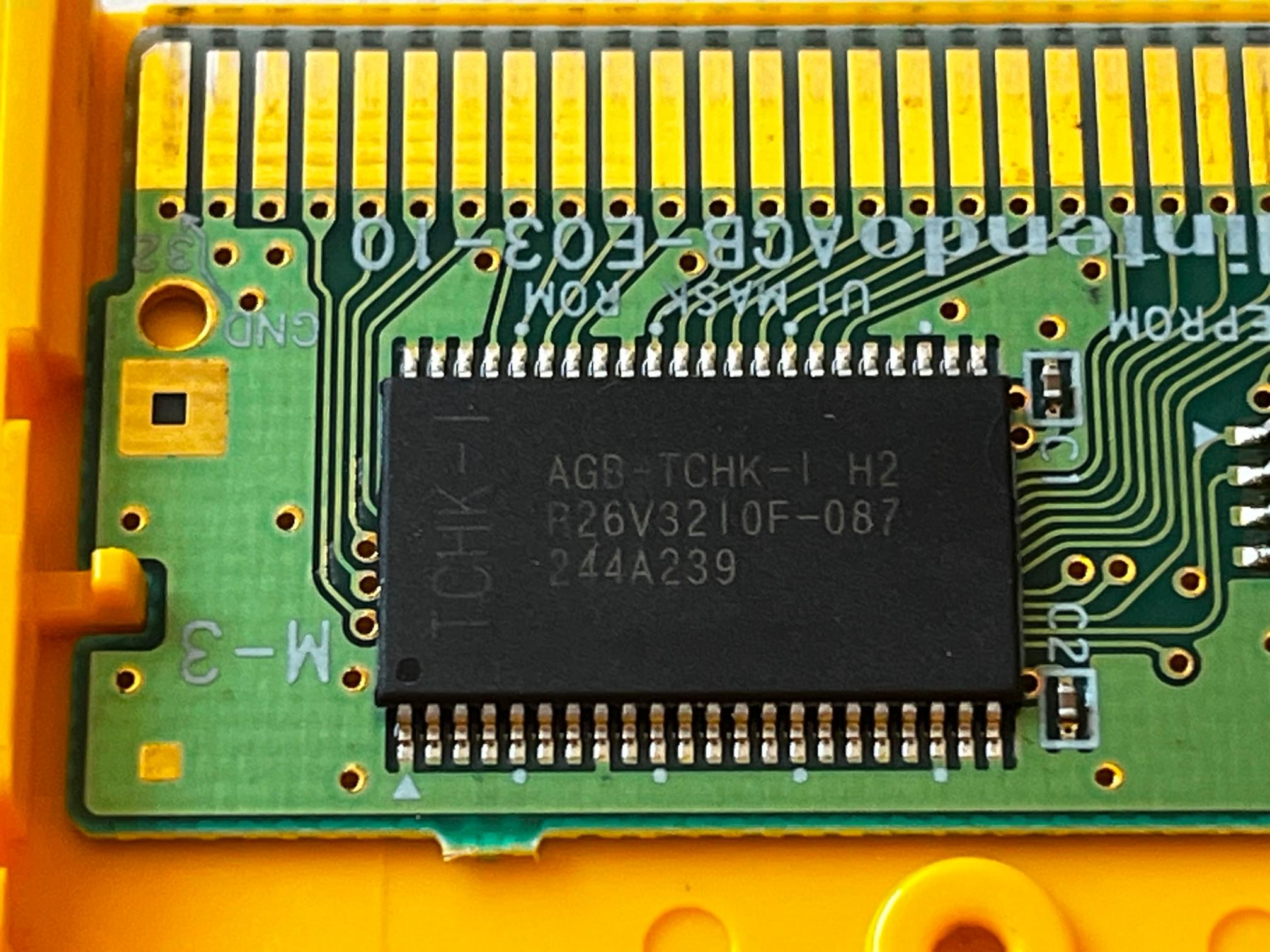

| U1 | ROM | MR26V3210F | OKI | Week 44/2002 | AGB-TCHK-1 H2 R26V3210F-087 244A239 |
| U2 | EEPROM | 9853 | ROHM | October/2002 | 9853 2A46 |
ROM dump
- Used tool
- GBxCart RW v1.4
- Dump date
- 2023-10-23
- SHA-256
12953a9b75d70b85dfb0375f95fcaf60784bee0559048aa1789091f6d38e3228
✅- Dump log
= FlashGBX Dump Report = == File Information == * File Name: AGS Aging Cartridge (World) (Rev 1) (v7.0) (Test Program).gba * File Size: 4.00MiB (4194304 bytes) * CRC32: e16e1360 * MD5: 6087dc2b8532e1cba787e1f53ab5a051 * SHA-1: 5c73fb4074b19c5a1a9bb60fd359b528d2ed99a6 * SHA-256: 12953a9b75d70b85dfb0375f95fcaf60784bee0559048aa1789091f6d38e3228 == General Information == * Hardware: GBxCart RW v1.4 – Firmware R42+L10 * Software: FlashGBX v3.34 * OS Platform: Windows-10-10.0.25977-SP0 * Baud Rate: 1700000 * Dump Time: 2023-10-23T06:43:05-07:00 * Time Elapsed: 28seconds (144.56 KiB/s) * Transfer Buffer: 8192 bytes * Retries: 0 == Dumping Settings == * Mode: Game Boy Advance * ROM Size: 4 MiB * Cartridge Type: Generic ROM Cartridge == Parsed Data == * Game Title: AGB CHECKER␀ * Game Code: TCHK * Revision: 16 * Nintendo Logo: OK * Header Checksum: OK (0xD7) * Save Type: 4K or 64K EEPROM (EEPROM_V122)
