Game Boy hardware database

Wario Land 3 (World) (En,Ja): Entry #1 [Comrade Claire]

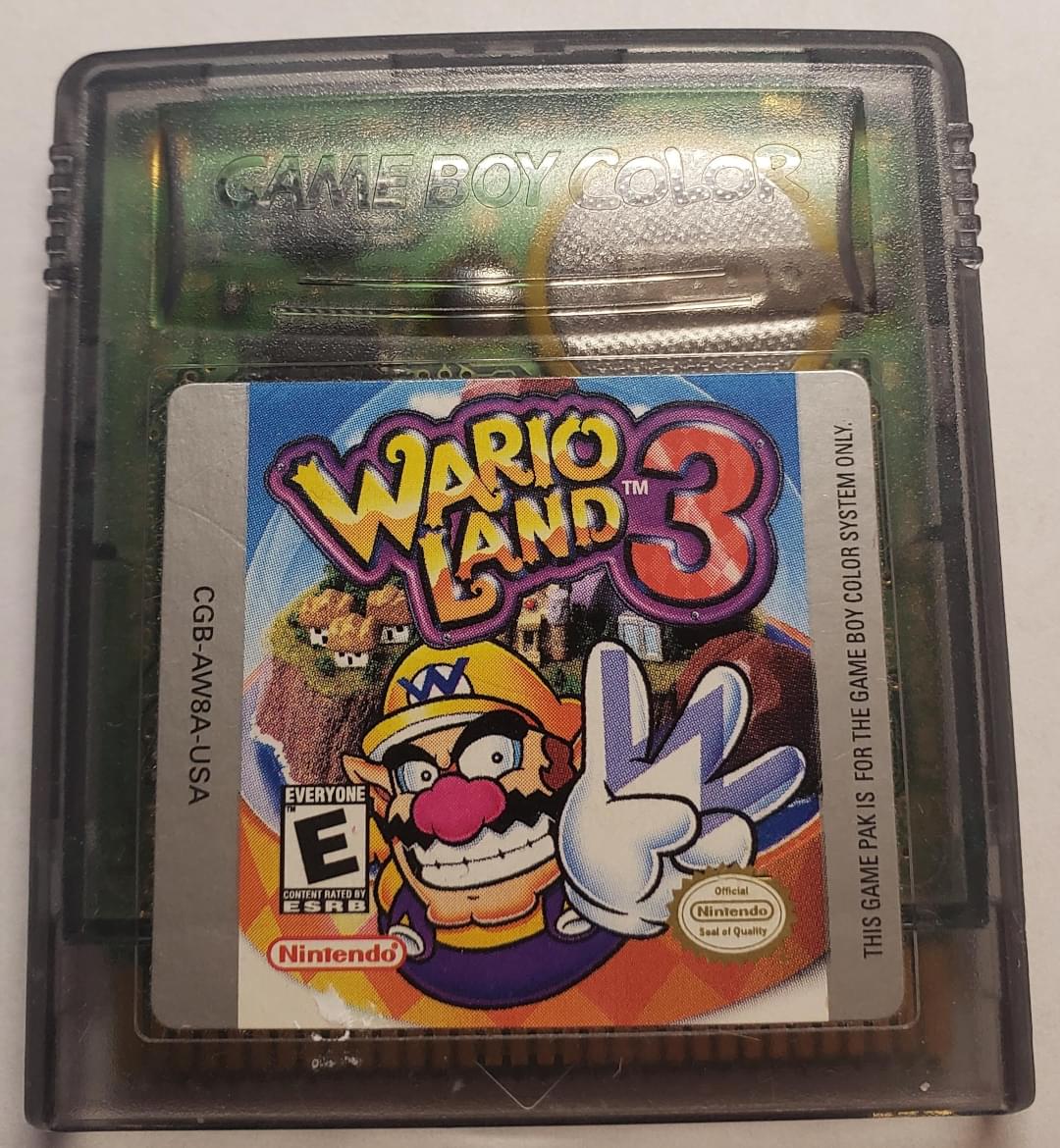

Release
CGB-AW8A-USA
Stamp on case
22

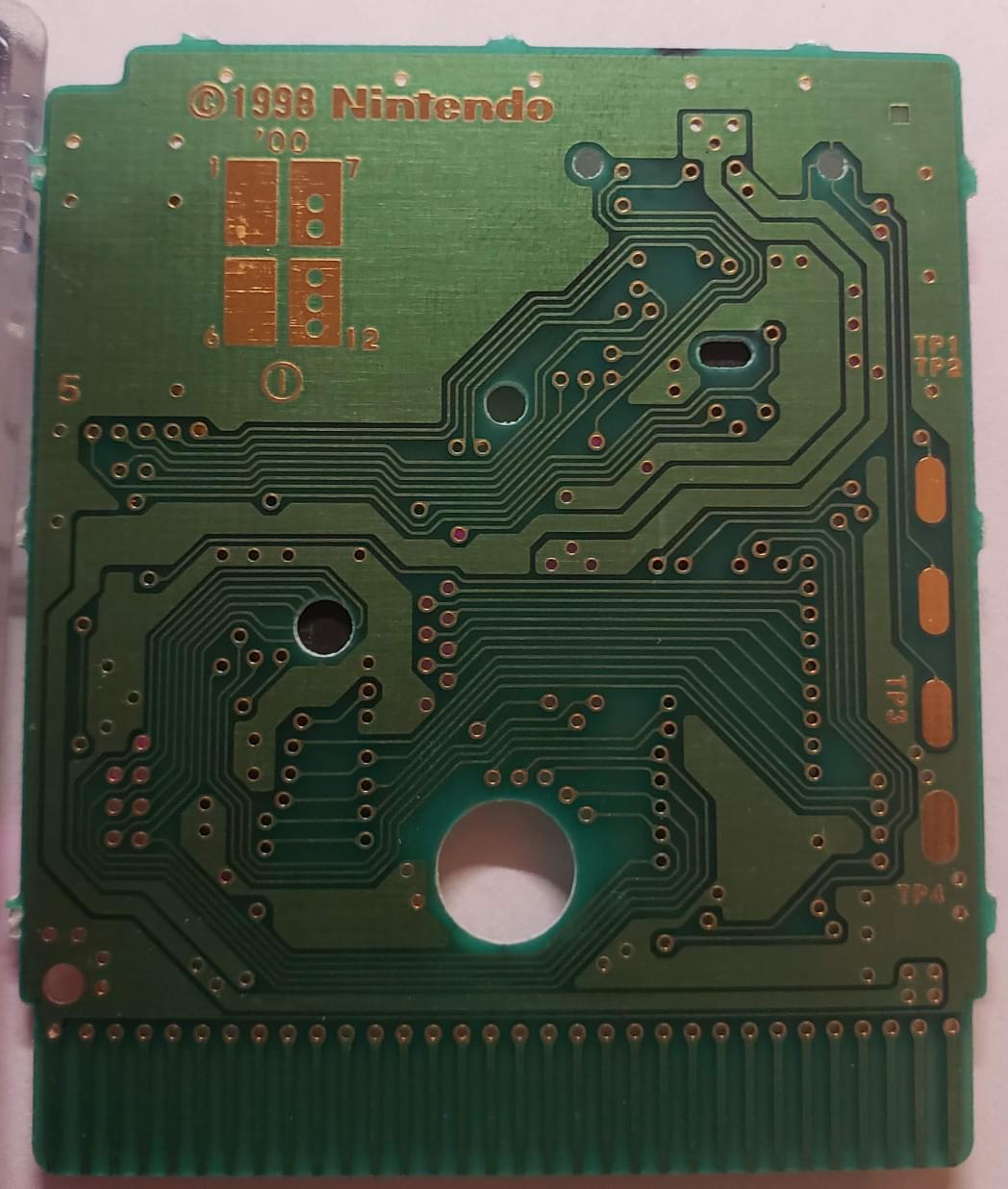

Board

Board type
DMG-A03-01
Manufacture date
July/2000
Circled letter(s) on board
I
Position in PCB panel
5

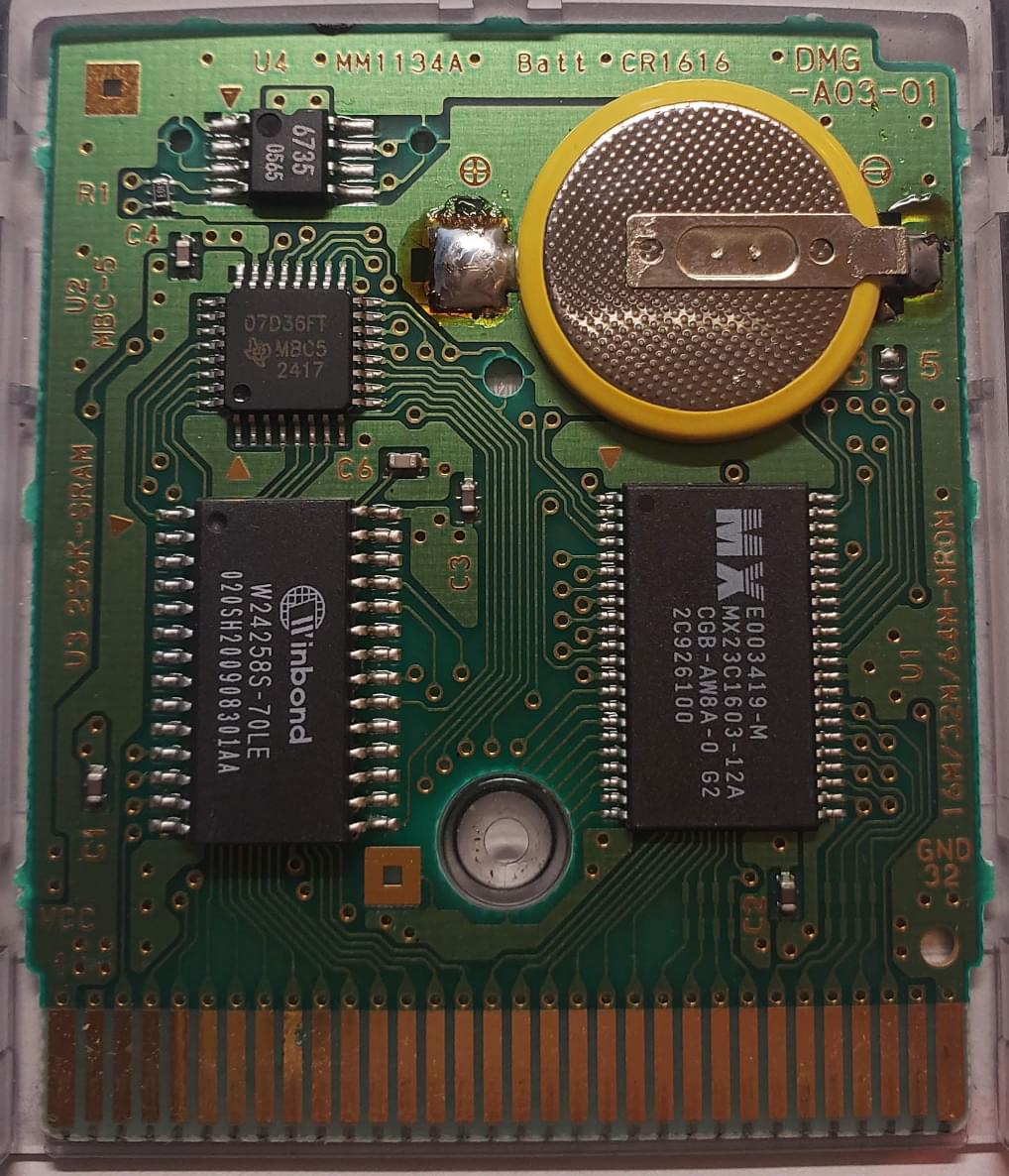

Parts

PartTypeManufacturerDateLabel
U1ROMMX23C1603-12AMacronixWeek 34/2000E003419-M MX23C1603-12A CGB-AW8A-0 G2 2C926100
U2MapperMBC5Texas Instruments200007D36FT MBC5 2417
U3RAMW24258S-70LEWinbondWeek 20/2000Winbond W24258S-70LE 020SH200908301AA
U4Supervisor & ResetBA6735ROHM20006735 0565
