Dinosaur (Europe) (En,Fr,De,Es,It): Entry #1 [ikk5]

Release
CGB-BDNP-EUR

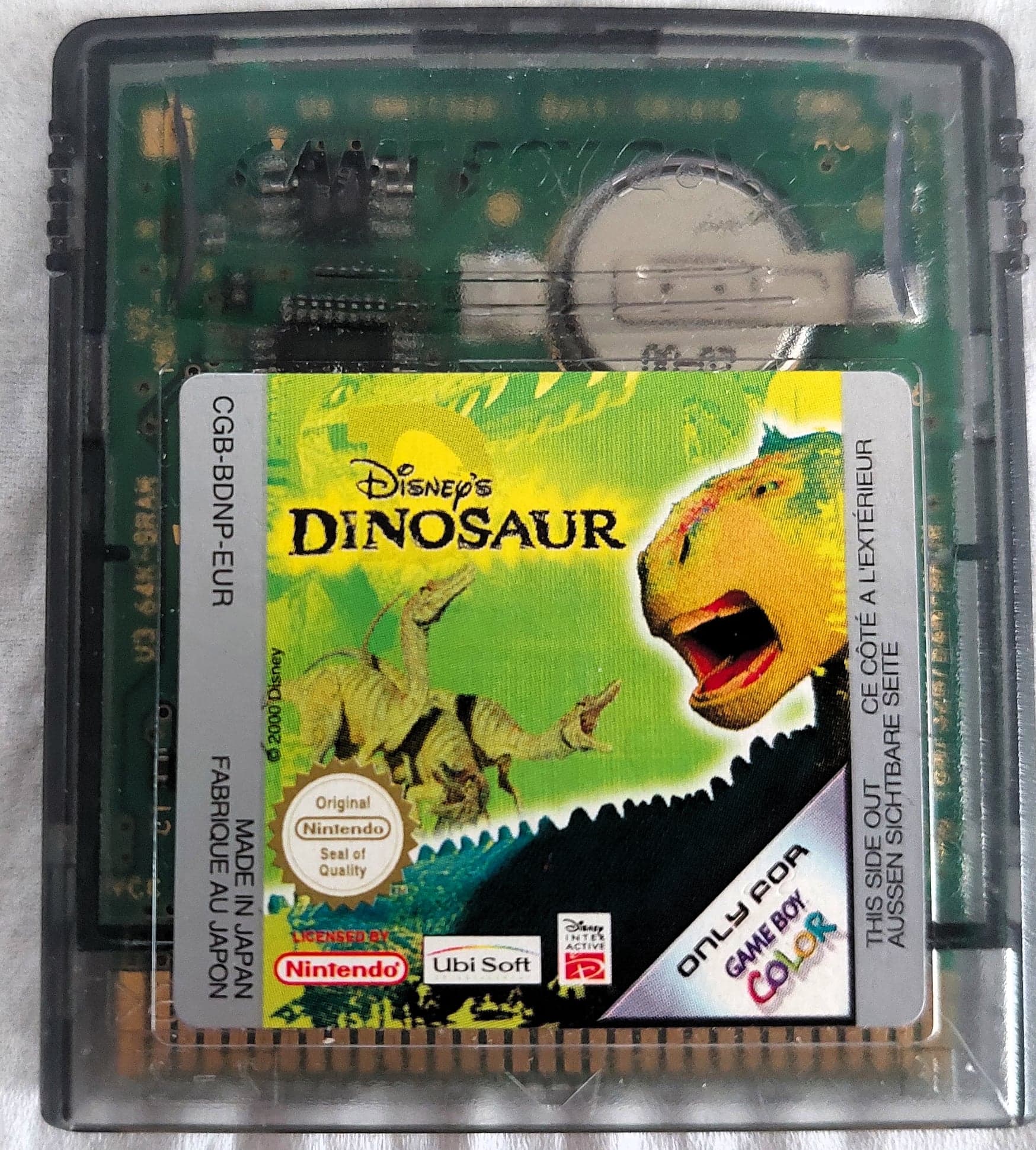

Stamp on case
22

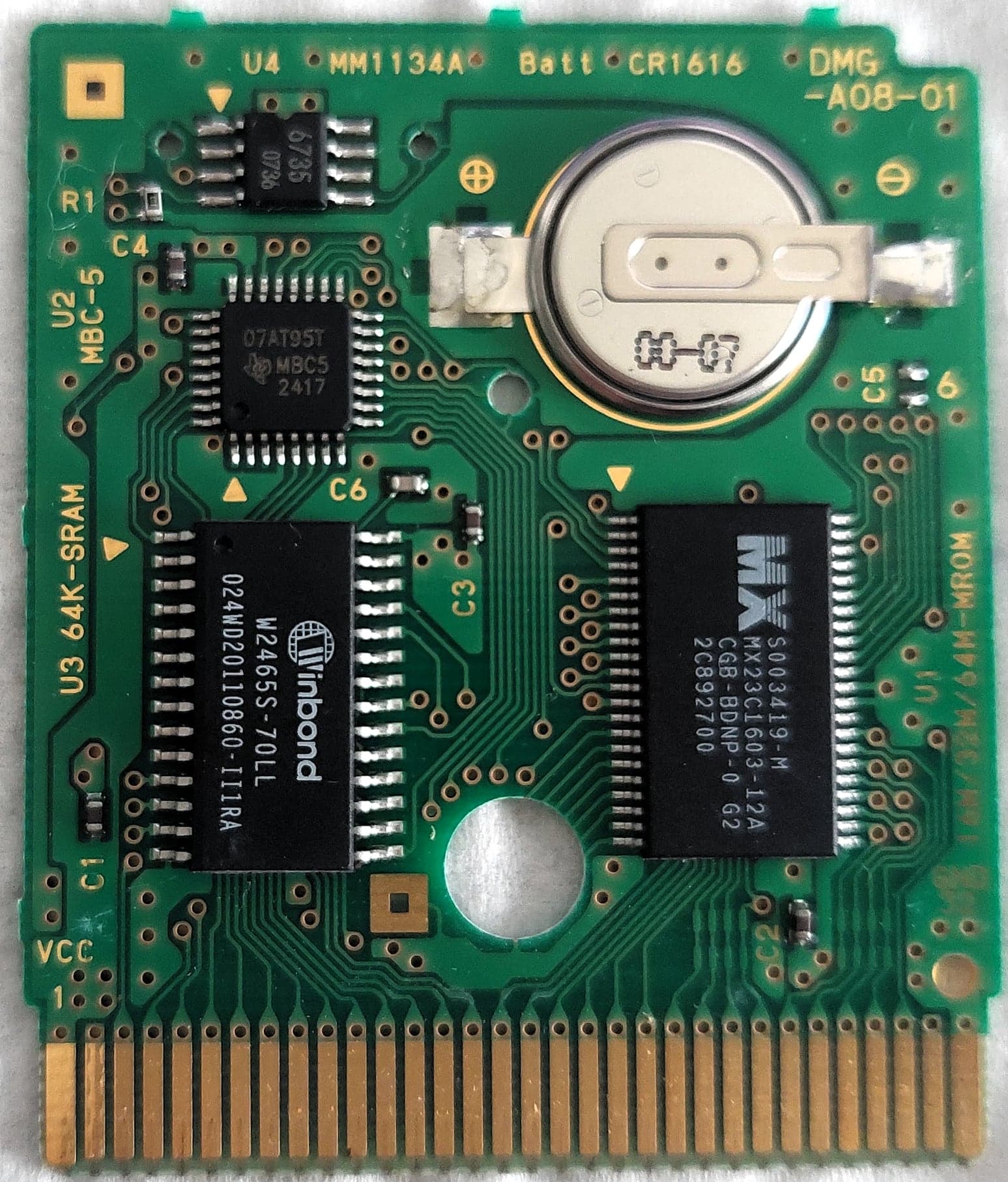

Board

Board type
DMG-A08-01
Manufacture date
June/2000

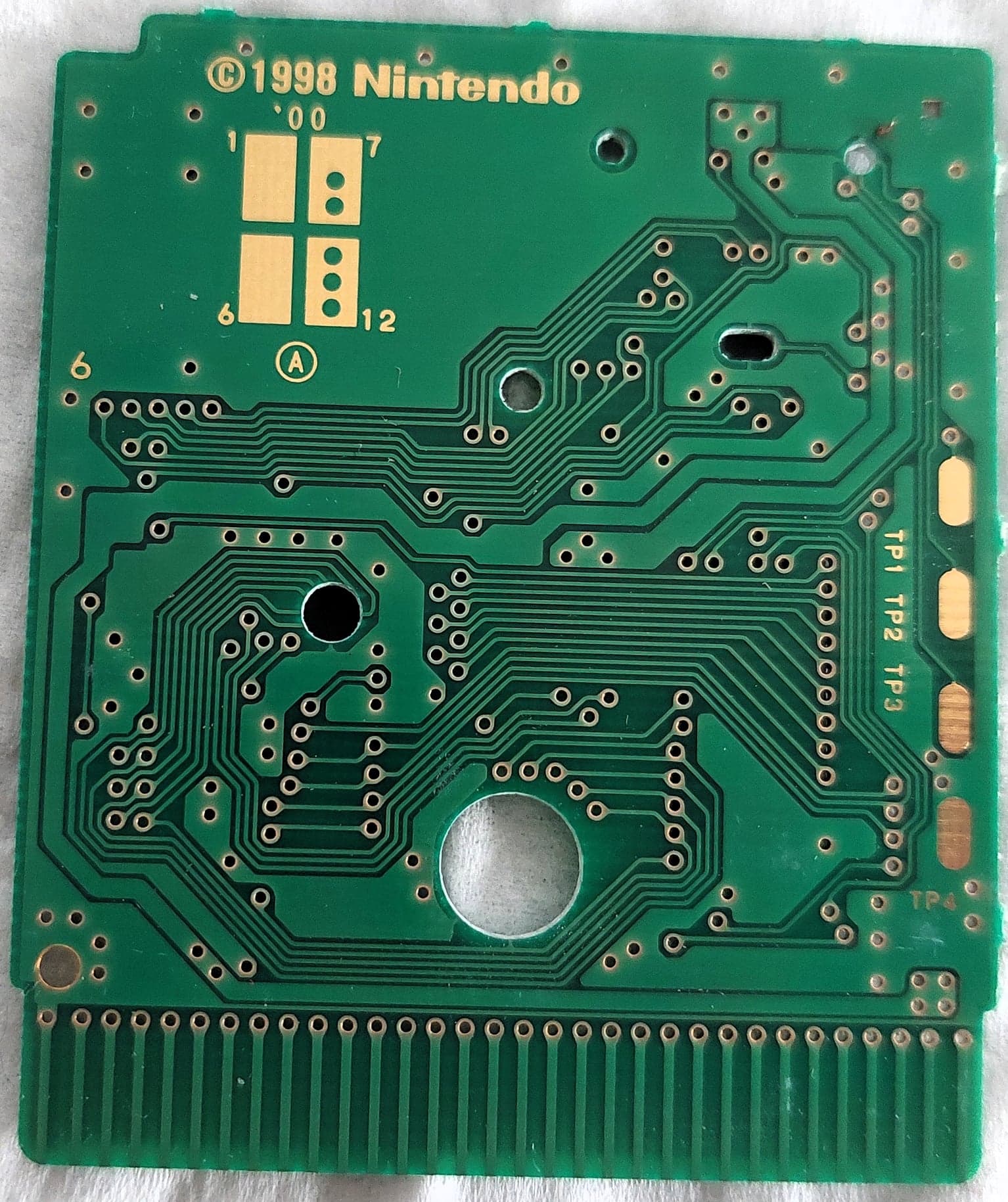

Circled letter(s) on board
A
Position in PCB panel
6

Parts

PartTypeManufacturerDateLabel
U1ROMMX23C1603-12AMacronixWeek 34/2000S003419-M MX23C1603-12A CGB-BDNP-0 G2 2C892700
U2MapperMBC5Texas InstrumentsJuly/200007AT95T MBC5 2417
U3RAMW2465S-70LLWinbondWeek 24/2000Winbond W2465S-70LL 024WD20110860-II1RA
U4Supervisor & ResetBA6735ROHMJuly/20006735 0736
BatteryCR1616July/200000-07
