Pokemon - Gold Version (USA, Europe) (SGB Enhanced) (GB Compatible): Entry #1 [mattcurrie]

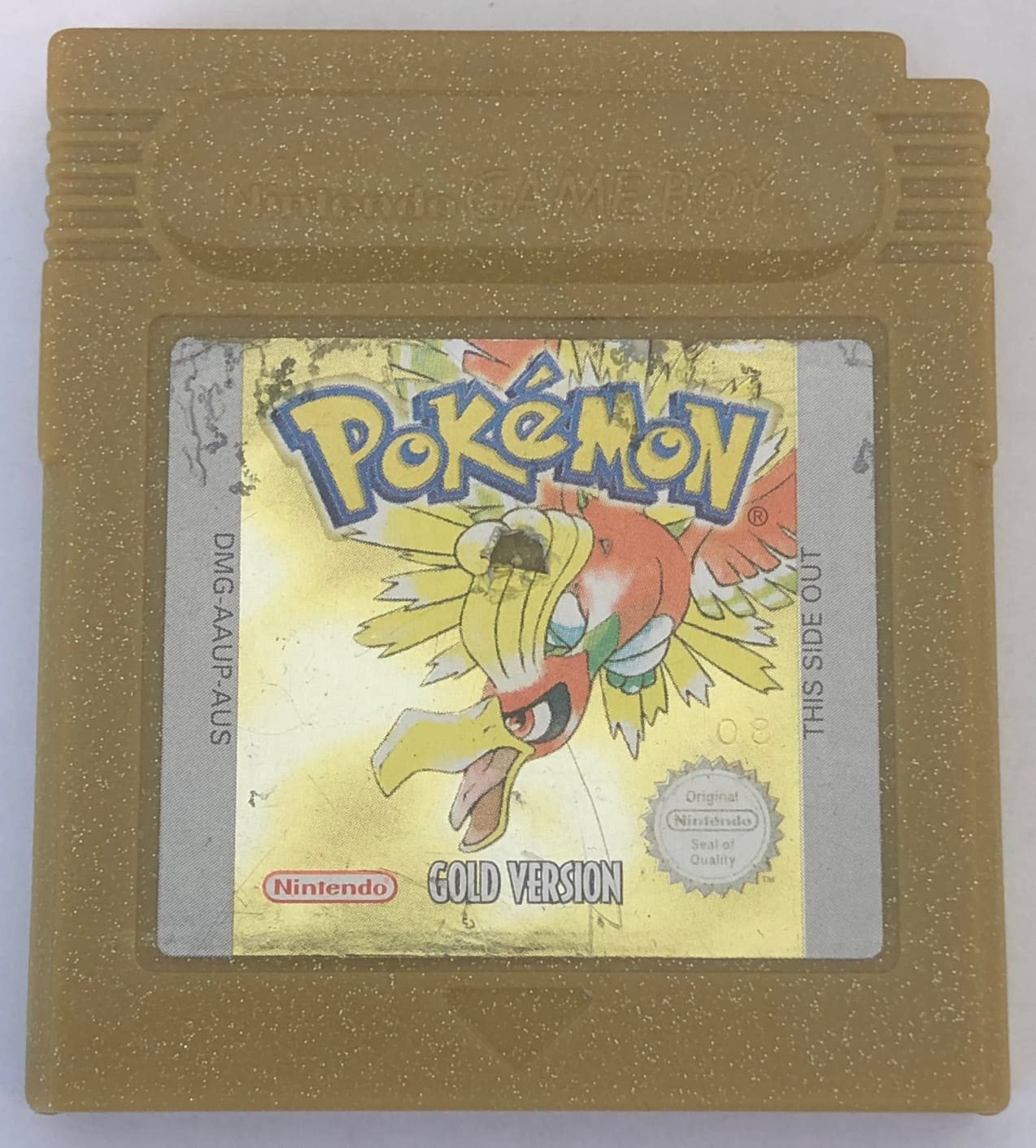

Release
DMG-AAUP-AUS
Stamp on case
08

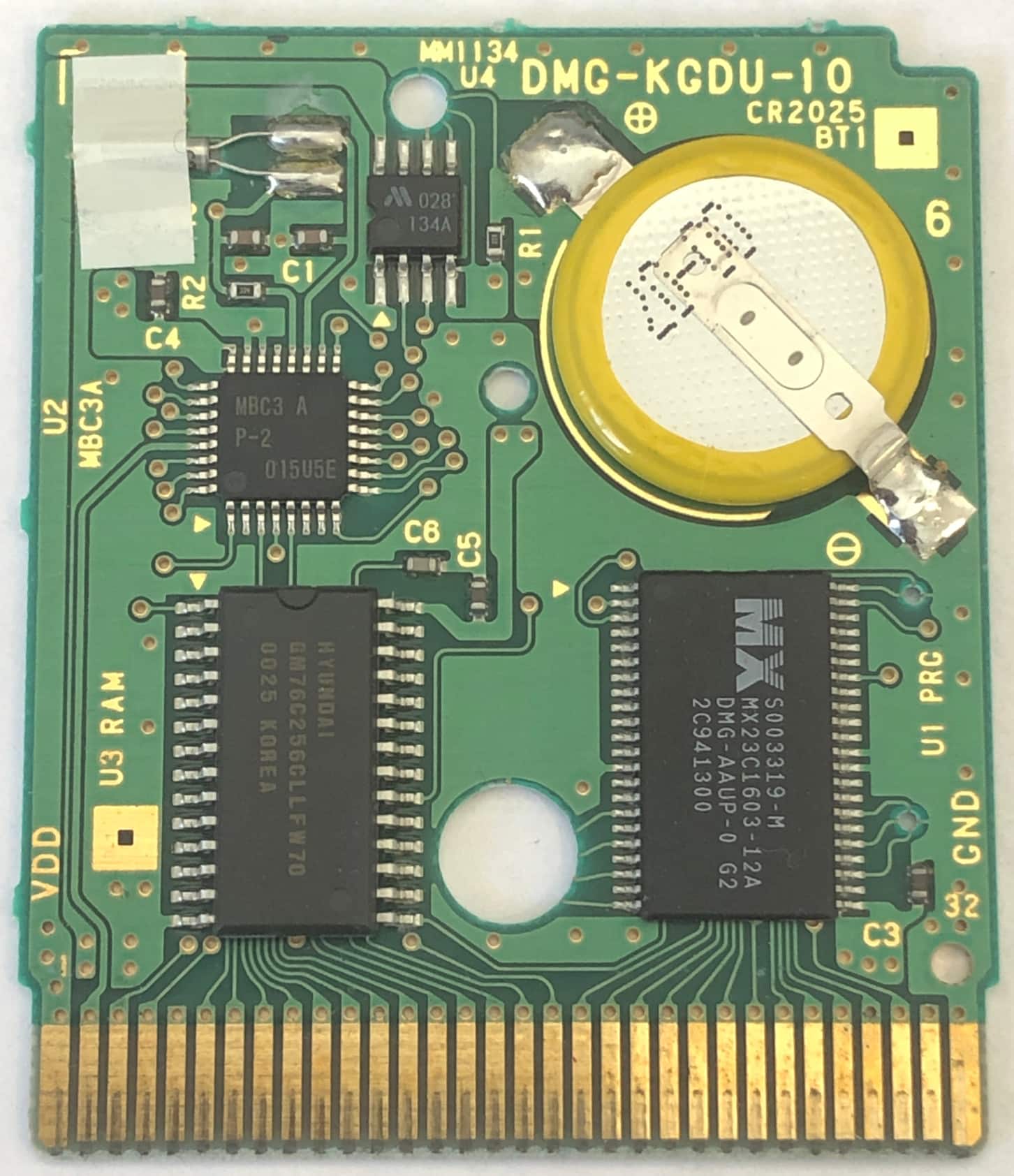

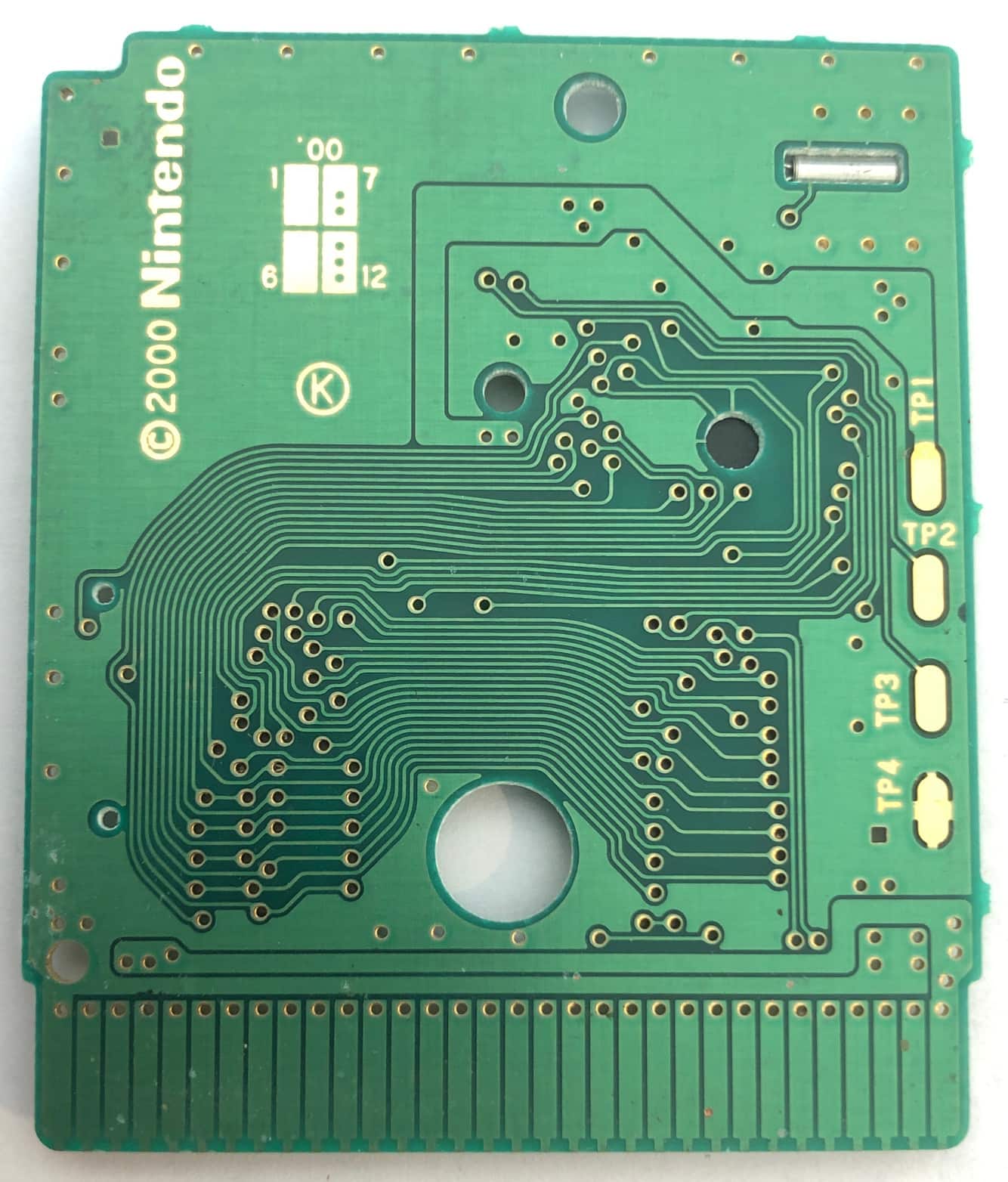

Board

Board type
DMG-KGDU-10
Manufacture date
July/2000
Circled letter(s) on board
K
Position in PCB panel
6

Parts

PartTypeManufacturerDateLabel
U1ROMMX23C1603-12AMacronixWeek 33/2000S003319-M MX23C1603-12A DMG-AAUP-0 G2 2C941300
U2MapperMBC3APanasonicWeek 15/2000MBC3 A P-2 015U5E
U3RAMGM76C256CLLFW70HyundaiWeek 25/2000HYUNDAI GM76C256CLLFW70 0025 KOREA
U4Supervisor & ResetMM1134AMitsumiWeek 28/2000028 134A
X1Crystal
