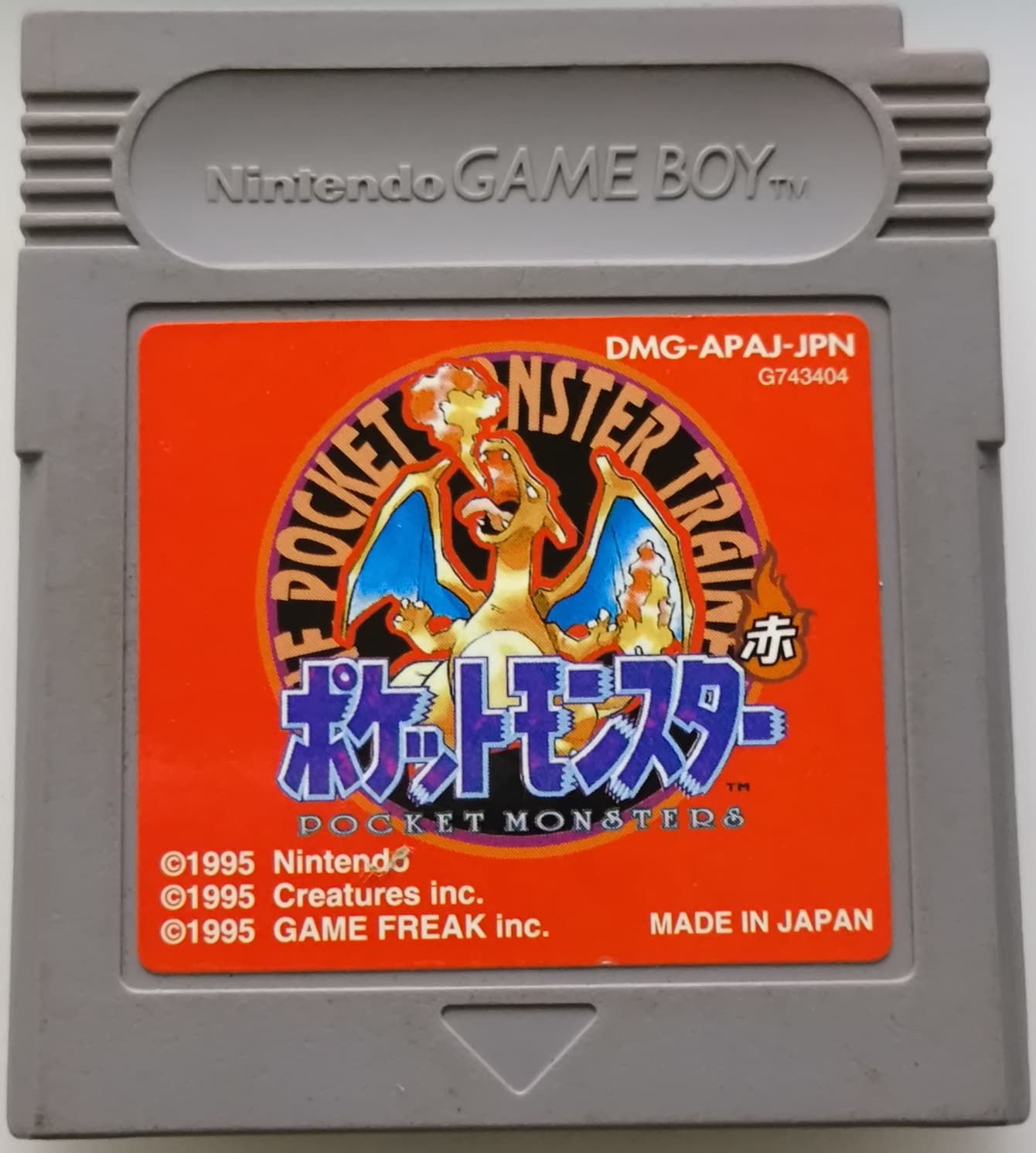

Pocket Monsters - Aka (Japan) (Rev 1) (SGB Enhanced): Entry #1 [marcao_cfh]

Release
DMG-APAJ-JPN

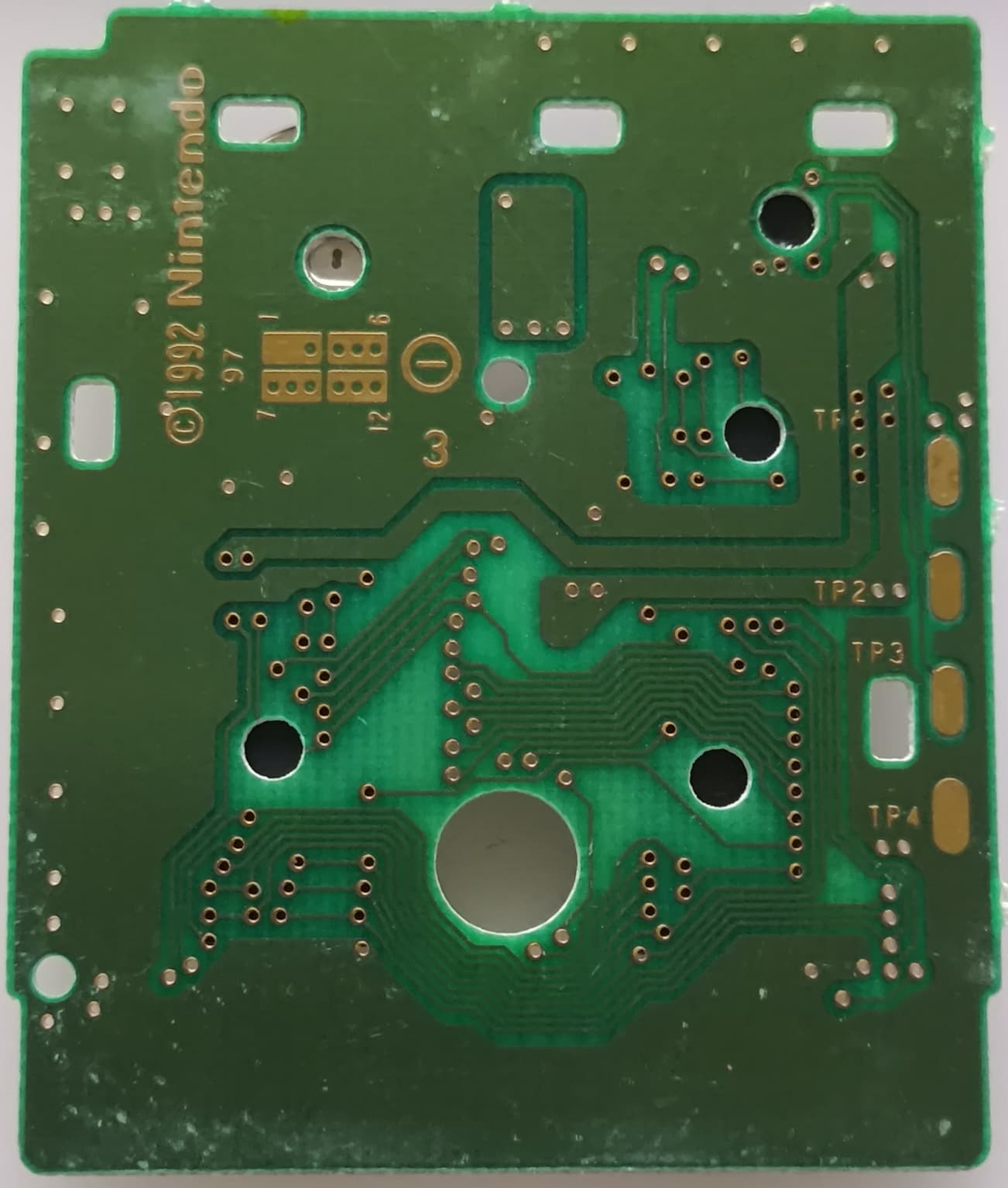

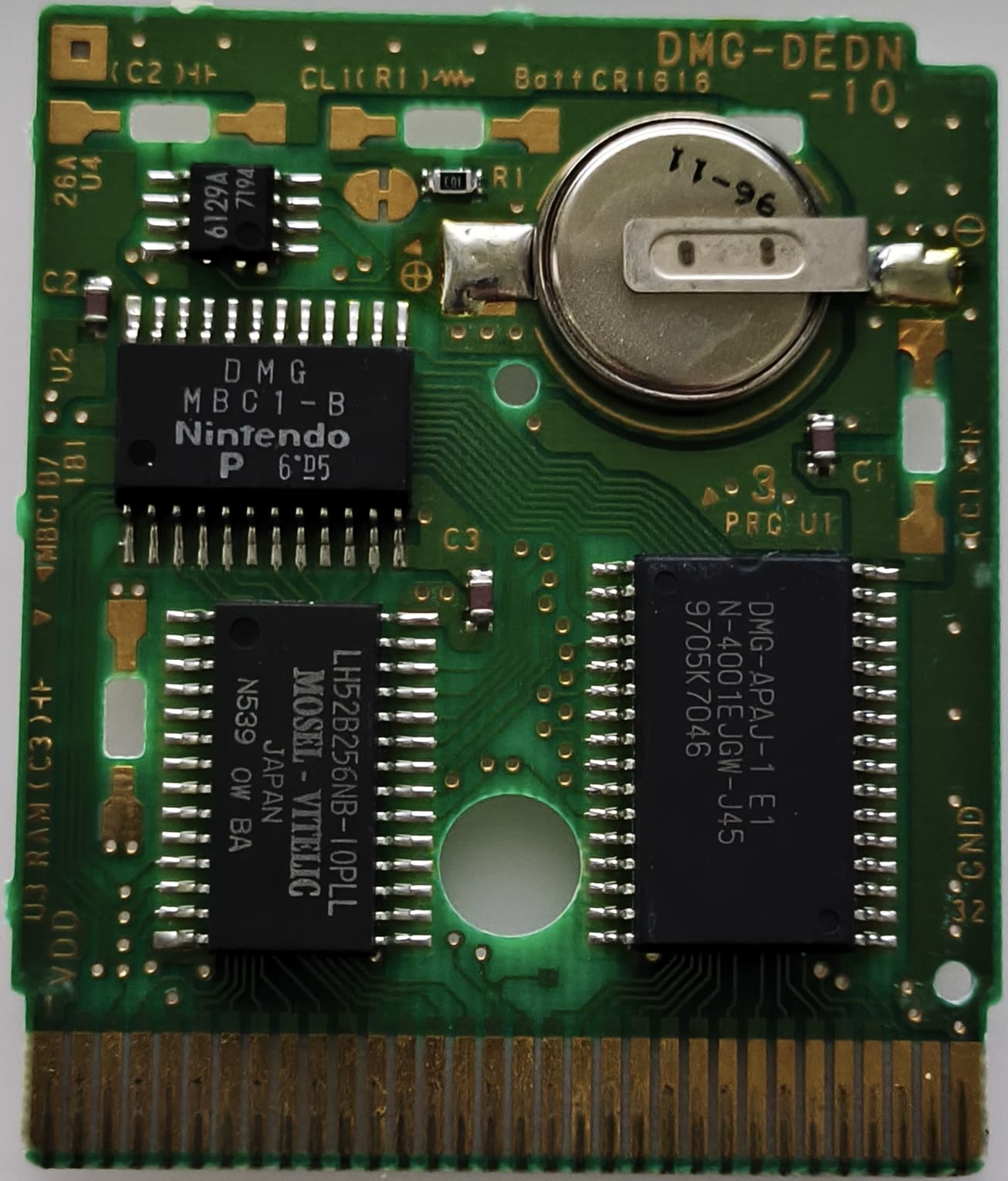

Board

Board type
DMG-DEDN-10
Manufacture date
February/1997
Circled letter(s) on board
I
Position in PCB panel
3

Parts

PartTypeManufacturerDateLabel
U1ROMμPD23C4001EJGWNECWeek 5/1997DMG-APAJ-1 E1 N-4001EJGW-J45 9705K7046
U2MapperMBC1BPanasonicDecember/1996DMG MBC1-B Nintendo P 6'D5
U3RAMLH52B256NB-10PLLMosel-VitelicWeek 39/1995LH52B256NB-10PLL MOSEL-VITELIC JAPAN N539 0W BA
U4Supervisor & ResetBA6129AROHM19976129A 7194
BatteryCR1616November/199696-11
