Pokemon - Red Version (USA, Europe) (SGB Enhanced): Entry #1 [ikk5]

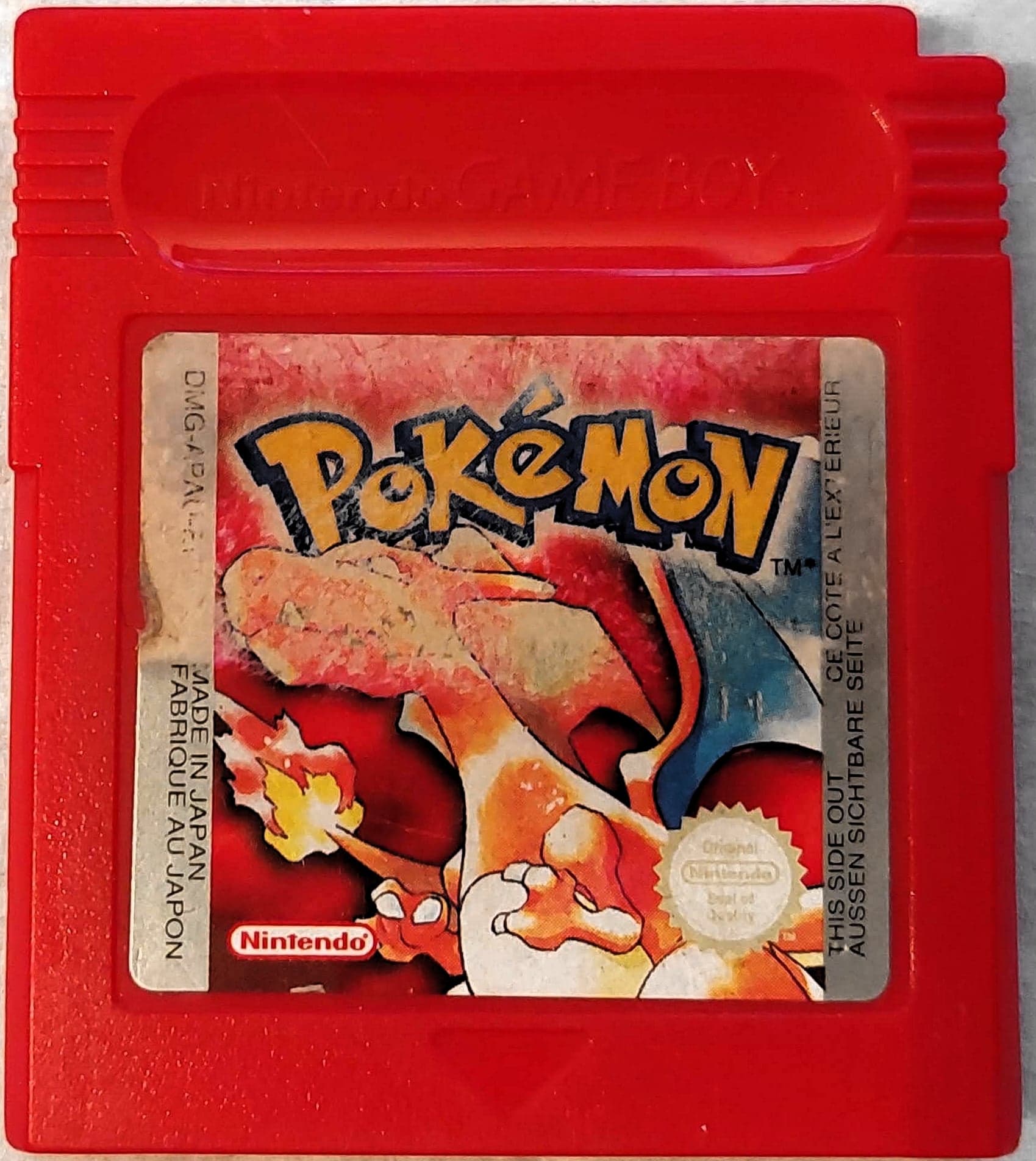

Stamp on case
11

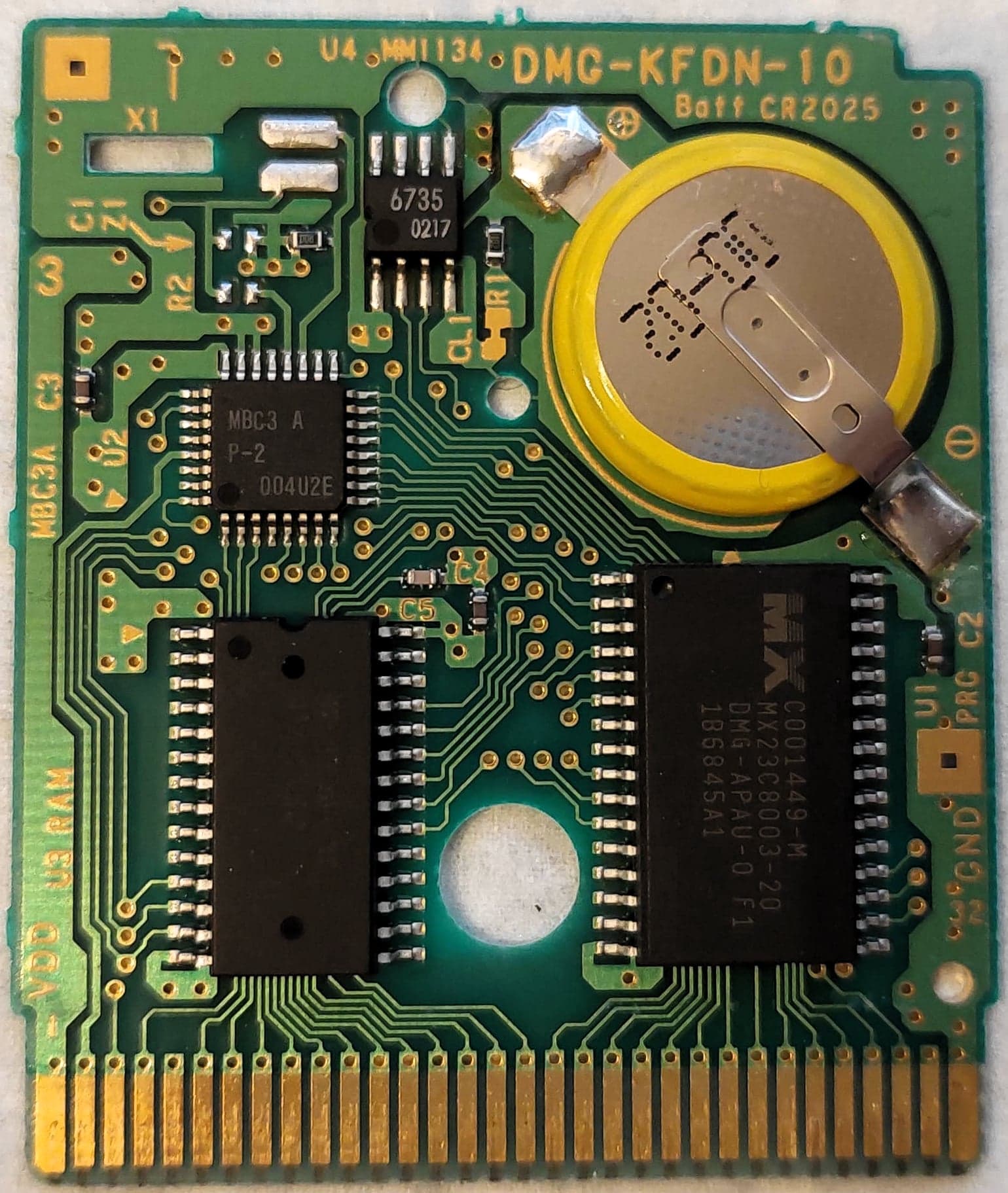

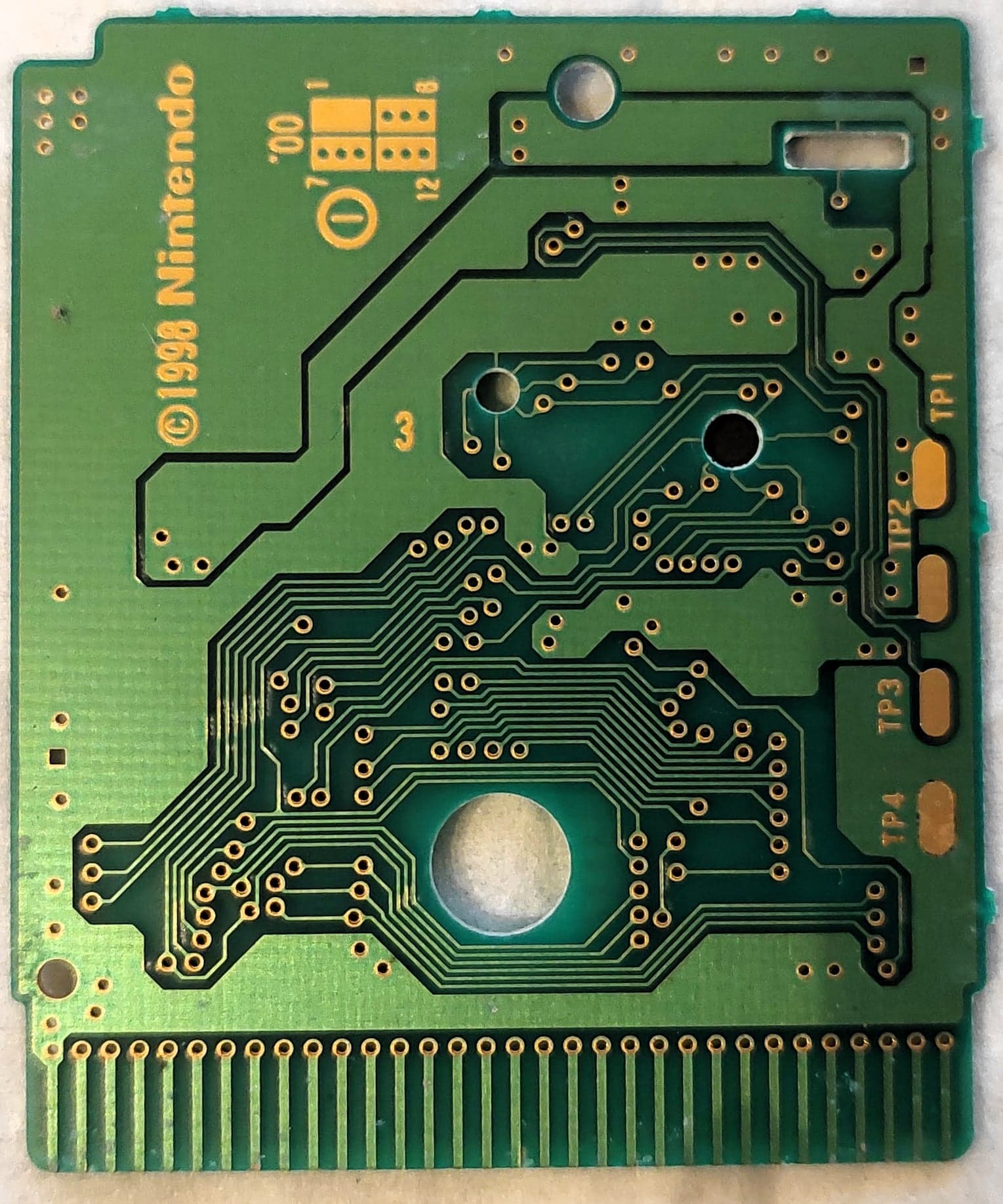

Board

Board type
DMG-KFDN-10
Manufacture date
March/2000
Circled letter(s) on board
I
Position in PCB panel
3

Extra photos

Parts

PartTypeManufacturerDateLabel
U1ROMMX23C8003-20MacronixWeek 14/2000C001449-M MX23C8003-20 DMG-APAU-0 F1 1B6845A1
U2MapperMBC3APanasonicWeek 4/2000MBC3 A P-2 004U2E

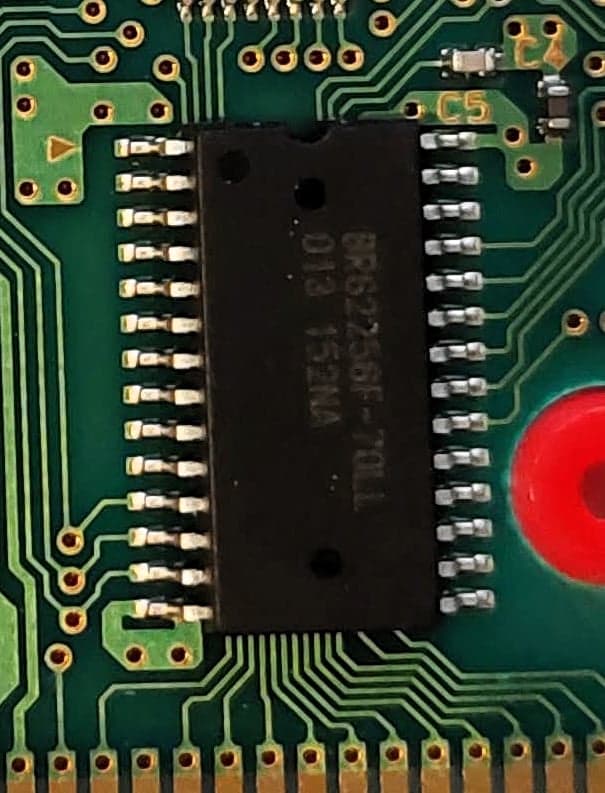

U3RAMBR62256F-70LLROHMWeek 13/2000BR62256F-70LL 013 152NA
U4Supervisor & ResetBA6735ROHMFebruary/20006735 0217
X1Crystal
BatteryCR2025February/200000-02
