Pocket Monsters - Pikachu (Japan) (Rev 2) (SGB Enhanced): Entry #1 [HDR]

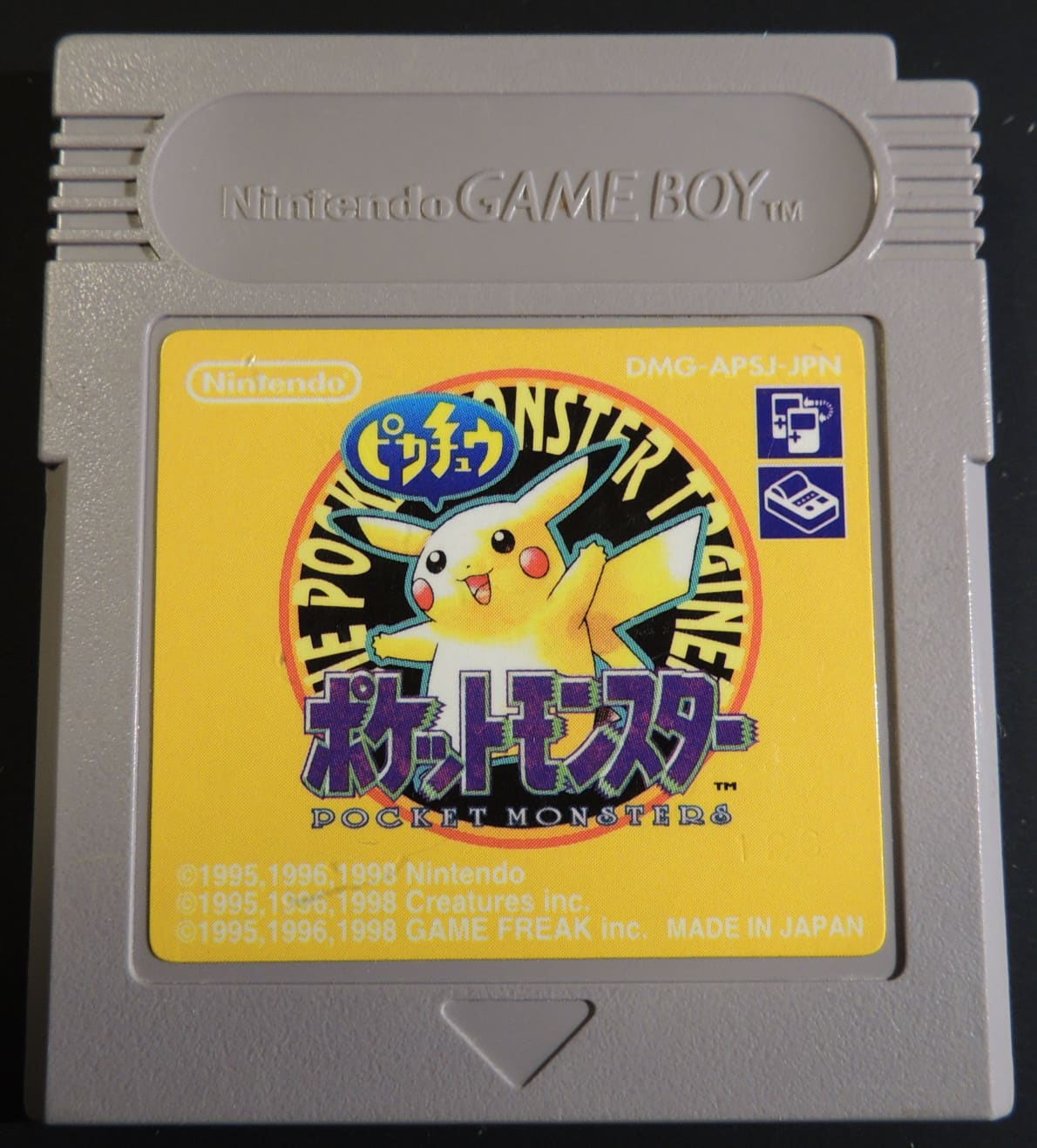

Release
DMG-APSJ-JPN
Stamp on case
12C

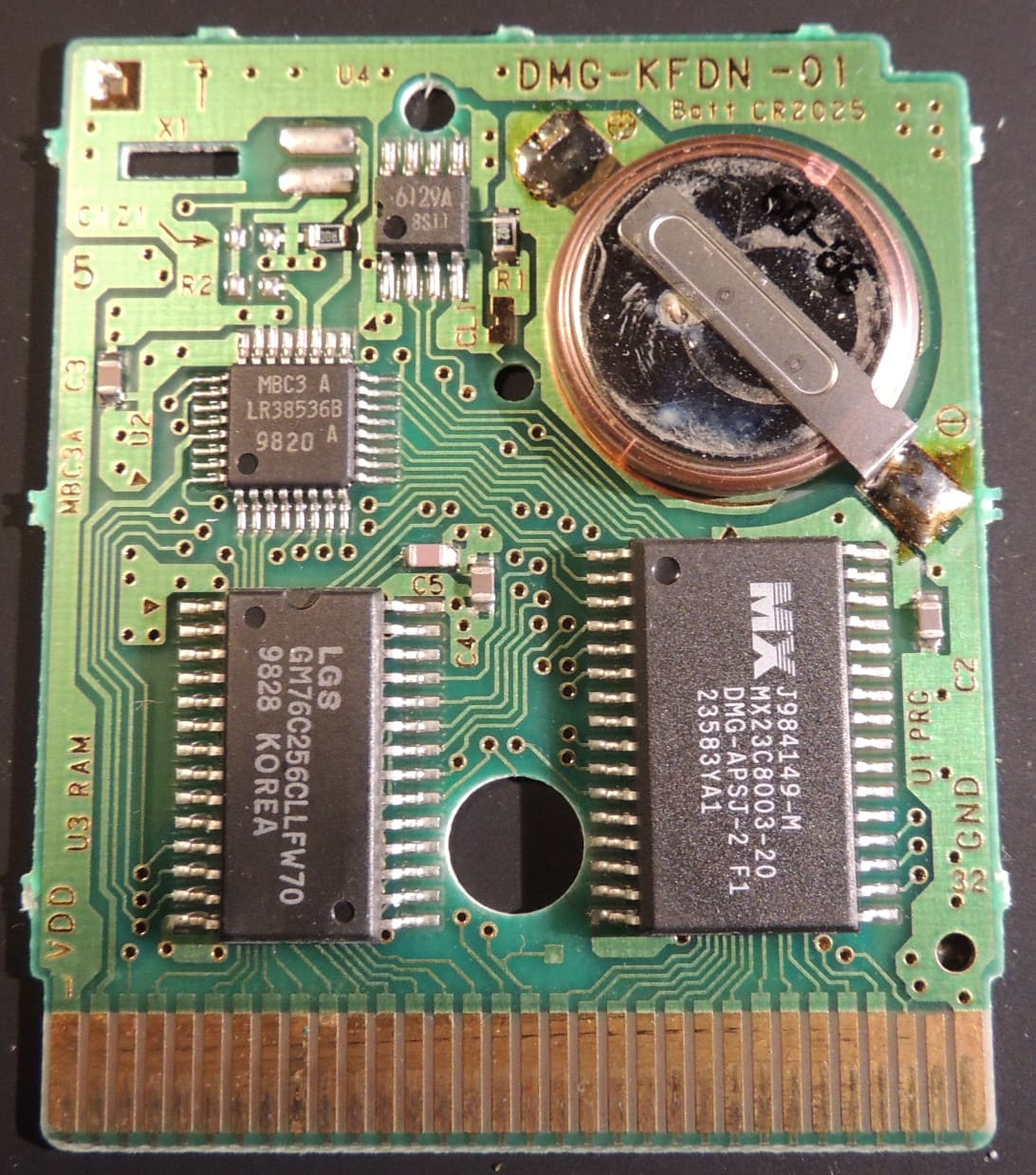

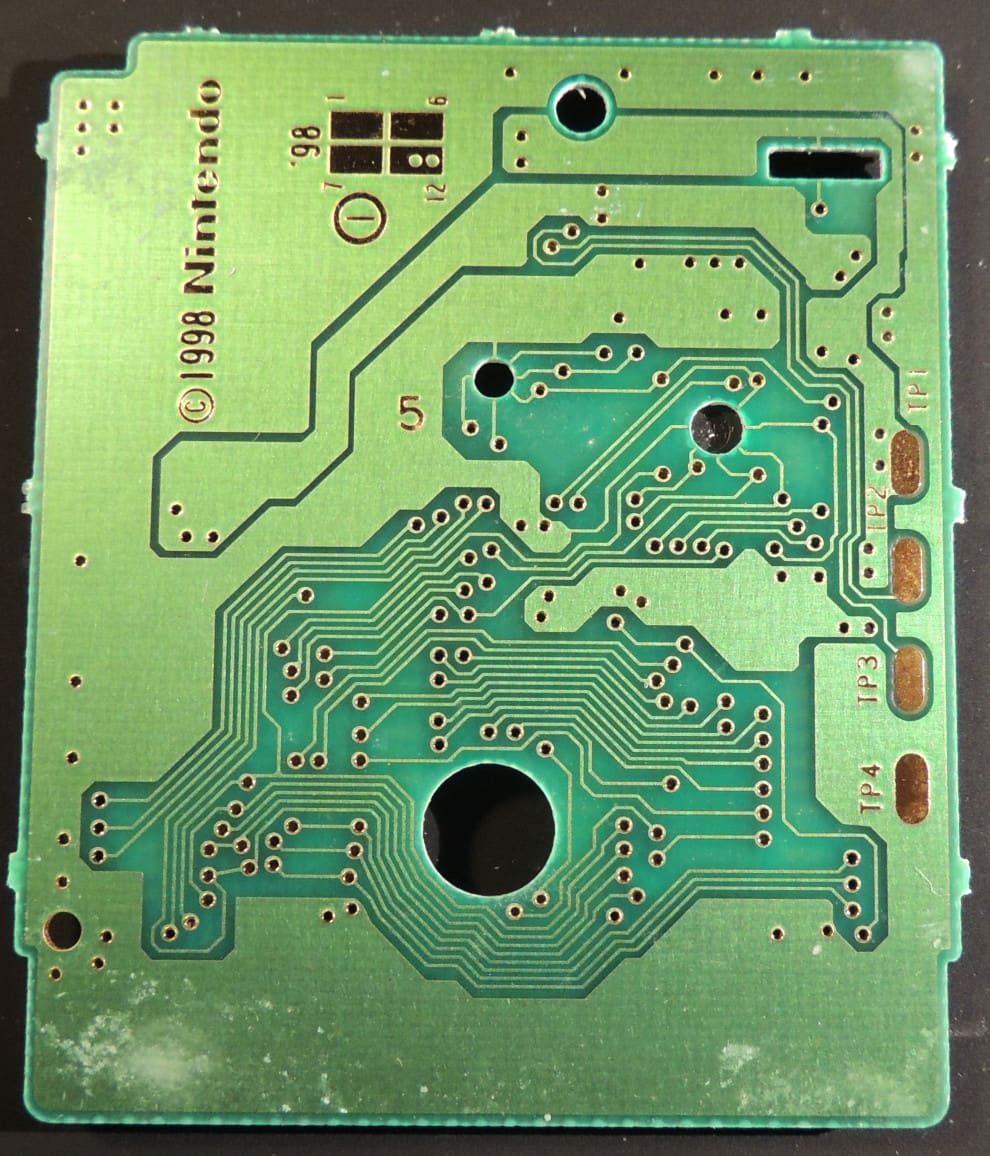

Board

Board type
DMG-KFDN-01
Manufacture date
October/1998
Circled letter(s) on board
I
Position in PCB panel
5

Parts

PartTypeManufacturerDateLabel
U1ROMMX23C8003-20MacronixWeek 41/1998J984149-M MX23C8003-20 DMG-APSJ-2 F1 23583YA1
U2MapperMBC3ASharpWeek 20/1998MBC3 A LR38536B 9820 A
U3RAMGM76C256CLLFW70Lucky GoldStarWeek 28/1998LGS GM76C256CLLFW70 9828 KOREA
U4Supervisor & ResetBA6129AROHM19986129A 8S11
X1Crystal
